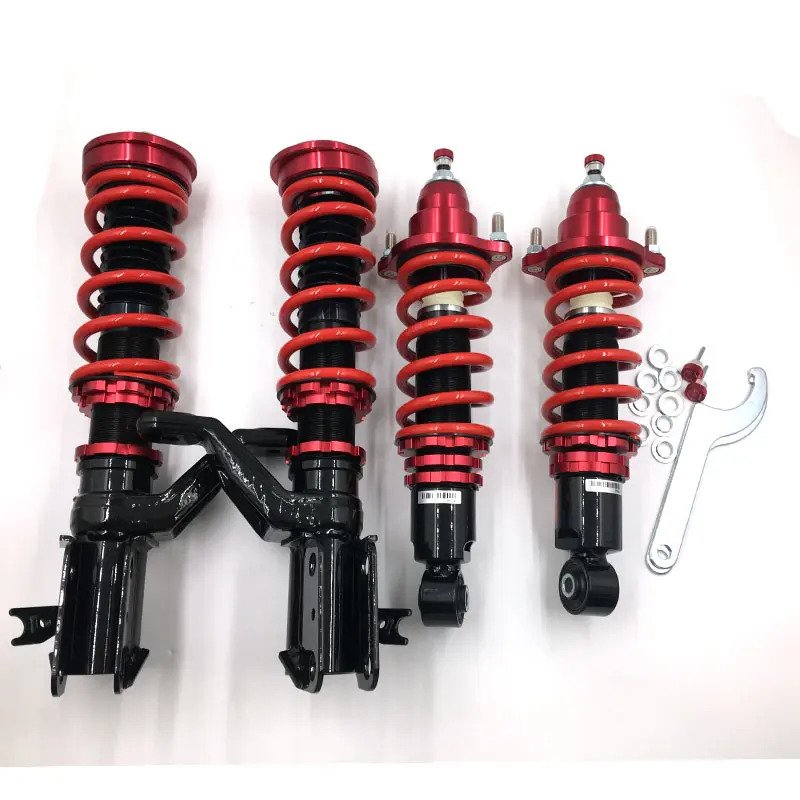

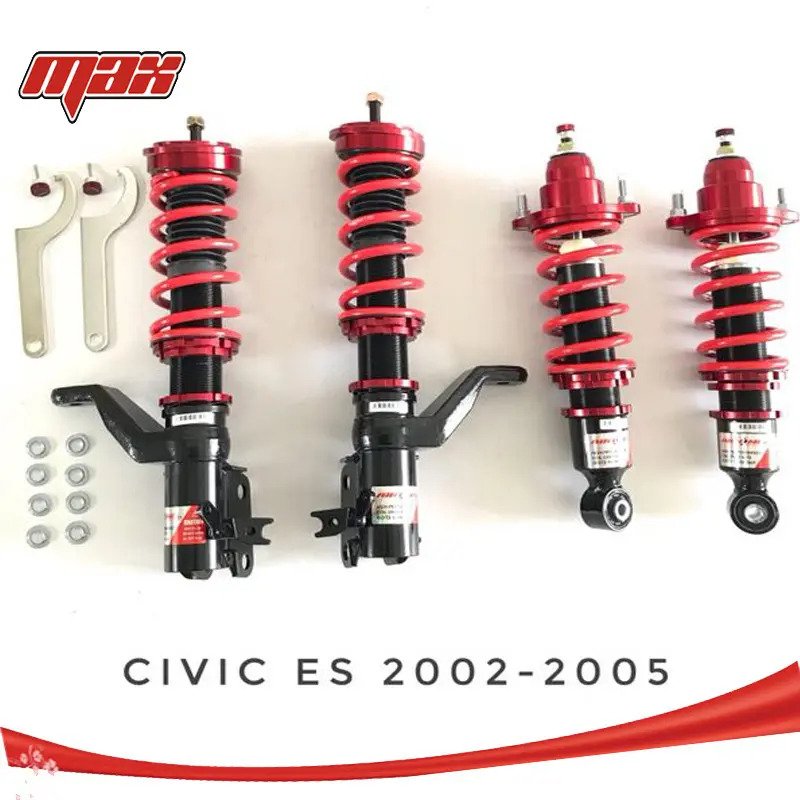

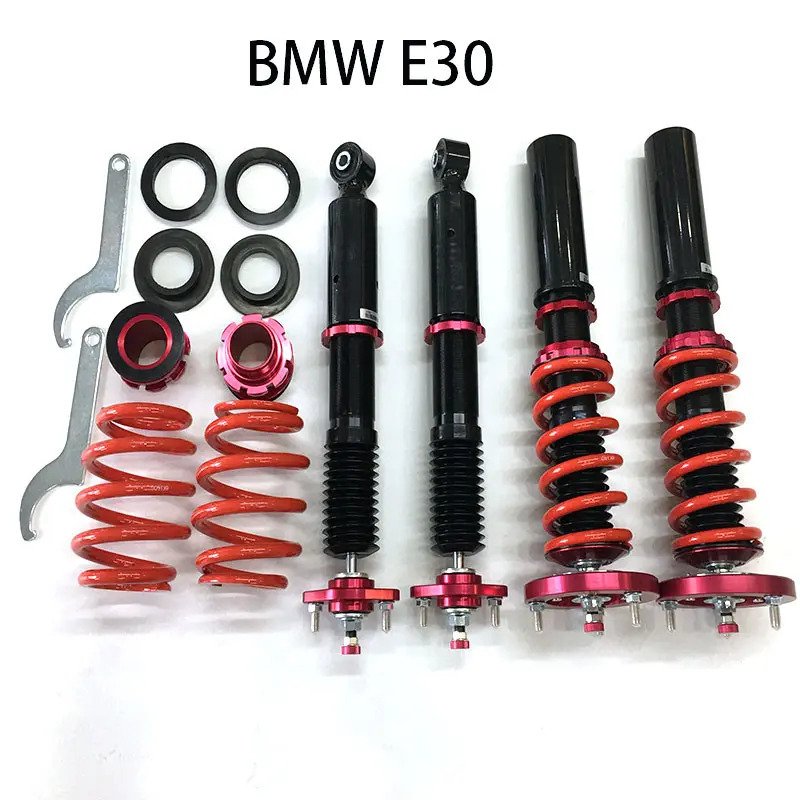

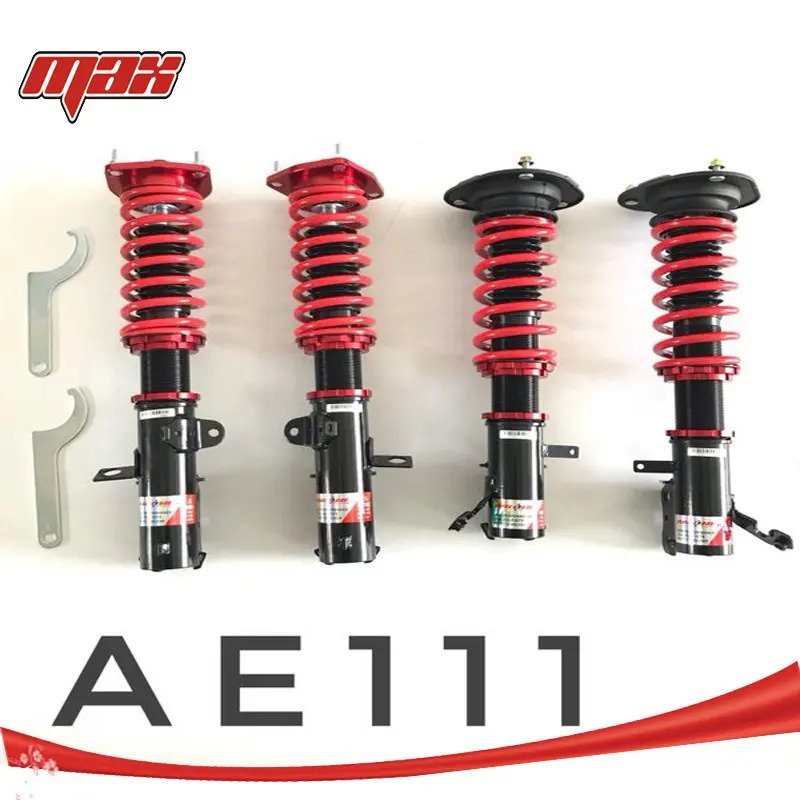

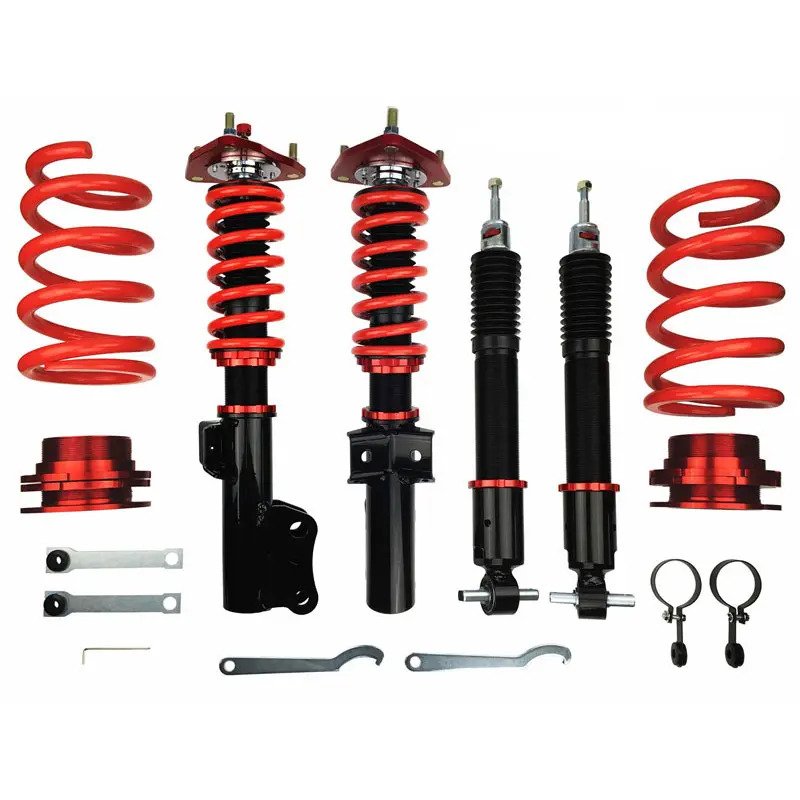

German Quality China Price Monotube Damping adjustable coilover

Short Description:

The coilover can freely adjust the height of the shock absorber and the size of the internal damping force, which can make the vehicle switch back and forth in terms of the height of the vehicle and the hardness of the suspension, which has extremely high playability and flexibility.


Product Detail

Product Tags

Part Name Coilover in Auto Shock Absorber
Surface Treatment Powder Coating / Chromed
Surface Color Red/Golden/Blue/Black/Blue/Black ,as customer requirement .
Applications BMW E46 or other car
Adjustable Adjustable Damping, Adjustable Height, and Adjustable Cylinder
Quality Control Conducted by ISO9001/TS16949:2002
Packing Inner Color Box, Outer-Standard Carton Box
Customer’s Logo Print Yes,Print Logo on Color box/on Shock Body both available
Service OEM
Warranty 1 year warranty for any manufacturing defect
Quantity: 2 piece front + 2 pieces rear
Adjustable height Yes
Damper adjustable Damper
Adjustable camber plate Yes
Feature   -Most components are made from 6063 aluminum with T6 for increased hardness
– the advantages include excellent strength, and aluminum helps keep the weight down.
  – Hi Tensile performance spring – Under 600,000 times continuously test, the spring distortion is less than 0.04%.
Plus, the special surface treatment is to improve the durability and performance.
   -All inserts come with fitted rubber boots to protect the damper and keep clean.
 A fast and affordable way to easily upgrade your car’s appearance.
   - Pillow Ball Mount with a spherical bearing
   – Poly Urethane bushings (When Applicable)
   – Power Coated Damper Body
   -Oil Seal use famous brand oil seal -NOK, good sealing performance,life is as high as 2000000 or more
   -Piston Rod Mirror-surface treatment, Hard chrome plated, made the tensile stregth and compressive strength above 800 Mpa

The advantages and disadvantages of refitting the coilover

Benefit:
1. The coilover can freely adjust the height of the shock absorber and the size of the internal damping force, which can make the vehicle switch back and forth in terms of the height of the vehicle and the hardness of the suspension, which has extremely high playability and flexibility.
2. Compared with the pneumatic shock absorber, the coilover also has the advantages of simple and compact structure; and the reliability advantage of being basically free from environmental interference.

Harm:
1. When it comes to vehicle modification, it will basically involve some safety issues. As for the modified coilover, if the product quality cannot be guaranteed, or the modified assembly process does not meet the requirements, then there will be a great safety hazard.
2. Compared with the pneumatic shock absorber, the height adjustment of the coilover can be described as its biggest flaw. Due to the limitation of the shock absorber structure, the adjustment of the coilover needs to disassemble the entire shock absorber from the vehicle. At the same time, a large number of special tools are needed in the whole process .

How to adjust the coilover to be comfortable

Regarding the comfort of twisting teeth, we mainly adjust the damping force .
The higher the damping, the worse the comfort, but the better its support for the vehicle, which can meet the needs of intense driving; the lower the damping, the better the comfort, but its support for the vehicle will change accordingly. Difference.
Generally, there is a knob to adjust the damping force above the coilover. By turning clockwise and counterclockwise, we can easily adjust its softness and hardness. As for how comfortable the adjustment is, it depends on the actual experience of the owners .

The coilover made by Max Auto use the chrome plating hollow piston rod , to ensure the damping force stable .
It use the high tensile performance spring – Under 600,000 times continuously test, the spring distortion is less than 0.04%.
-Oil Seal use famous brand oil seal -NOK, good sealing performance,life is as high as 2000000 or more .

We provide 1 year warrenty , within 1 year after sell , if there is any quality for example leak oil , we will provide the replace part for free .
