What You Need to Know About Coil Spring Types and Applications in 2025

Coil spring technology plays a vital role across many industries, especially in automotive and aerospace sectors. The most common types of coil spring in 2025 include compression, extension, torsion, and advanced specialty coil spring designs such as variable pitch and smart material coil springs. Each coil spring type supports unique functions, from vehicle suspensions to electronic devices. In the automotive sector, over 95% of vehicles in North America use a coil spring system, and the Asia-Pacific region leads global coil spring production. The table below highlights recent statistics on the use of different types of coil spring across major industries.

The demand for different types of coil spring continues to grow as automotive, electronics, and consumer products require more advanced, reliable, and lightweight coil spring solutions. Manufacturers now use new materials and digital design tools to create coil spring types for specialized applications.

Coil Springs Overview

What Are Coil Springs?

Coil springs are special mechanical devices made from a single strand of metal wound into a helical shape. This design sets them apart from other spring types. Manufacturers use high carbon steel or music wire to create coil springs with high tensile strength and long fatigue life. The production process includes cold or hot winding, heat treatment, and stress relief. These steps help the spring resist breaking and keep its shape after many uses.

Key mechanical properties define coil springs and their performance:

• Helical shape allows for efficient energy storage and release.
• Elastic modulus measures how much the spring stretches under force.
• Yield strength shows the point where the spring bends permanently.
• Tensile strength is the maximum force the spring can handle before snapping.
• Fatigue resistance lets the spring survive many cycles without failing.
• Corrosion resistance protects the spring from rust and damage.

Modern factories use CNC machines to control the size, pitch, and shape of each coil spring. This precision ensures that coil springs fit perfectly in their intended mechanical applications.

Why Coil Springs Matter in Modern Applications

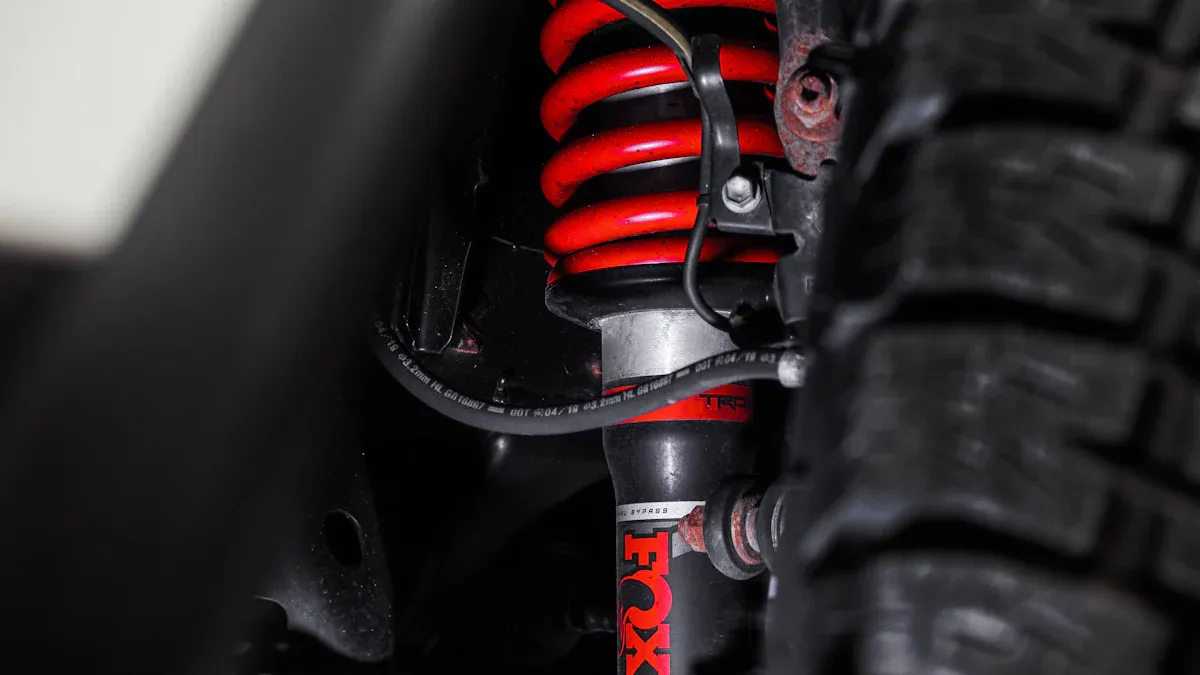

Coil springs play a vital role in many mechanical applications today. In cars, coil springs absorb shocks from rough roads, keep vehicles stable, and help maintain traction. This improves ride comfort and safety. Engineers design and test coil springs to handle heavy loads, especially in electric vehicles that weigh more than traditional cars.

Coil springs also appear in sports equipment, such as mountain bike suspensions and racquet handles. They help control vibrations, reduce injury risk, and improve energy transfer. In industrial machines, coil springs manage dynamic loads and prevent system failures. Regular inspection and maintenance, like checking for sagging or unusual noises, keep coil springs working safely.

New technologies, such as smart coil springs with sensors, now provide real-time feedback. These innovations help prevent accidents and extend the life of mechanical systems. Coil springs remain essential for reliable and efficient performance in a wide range of mechanical applications.

Types of Coil Springs and Their Applications

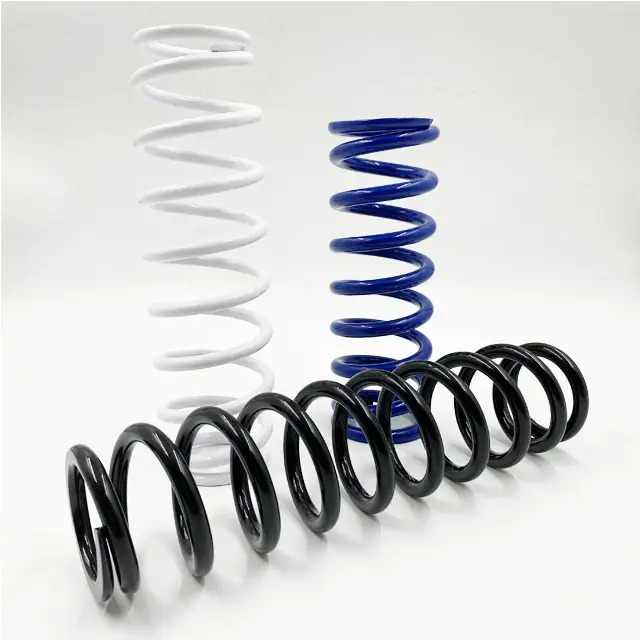

Compression Coil Springs

Compression coil springs are the most widely used type of coil spring in 2025. These springs work by resisting compressive forces and storing energy when pressed. Their helical shape allows them to compress under load and return to their original length when the load is removed. This makes them essential in many industries.

Common Applications in 2025:

• Automotive: Used in suspension systems, clutches, and valve springs. The growth of electric and hybrid vehicles increases the demand for advanced suspension solutions.
• Aerospace: Found in landing gear, control systems, and engine assemblies. Engineers focus on lightweight and high-performance springs.
• Industrial Machinery: Used in presses, pumps, and heavy-duty equipment. These springs must be durable and efficient, especially as automation increases.
• Consumer Goods: Present in household appliances, electronics, and sports equipment. Durability and performance are key.
• Specialized Sectors: Medical devices, marine, and construction industries also rely on compression springs.

Note: Advances in materials such as steel, stainless steel, titanium, and composites have improved the fatigue life, load capacity, and corrosion resistance of compression coil springs. Manufacturing improvements have made springs lighter and more durable, meeting strict OEM standards.

Compression coil springs offer several mechanical advantages:

• They provide uniform load distribution and a predictable spring rate.
• Their design allows for customization in size, shape, and material.
• Tapered and conical designs reduce buckling and save space.
• Concave (hourglass) springs improve alignment and minimize lateral movement.
• Straight coil compression springs deliver reliable and uniform behavior.

A table below summarizes the key mechanical advantages:

Automotive clutch springs are a good example of how compression coil springs support critical functions. These springs ensure smooth gear shifts and maintain vehicle performance. Advances in material technology and precision engineering have produced springs that withstand higher stress, offering improved durability and efficiency. This reliability is vital for both traditional and electric vehicles.

Extension Coil Springs

Extension coil springs, also called tension springs, stretch to absorb and store energy. When the force is removed, they return to their original length. These springs are essential in many industries because they can handle both static and dynamic loads.

Industries Using Extension Springs:

• Automotive: Used in passenger vehicles, commercial vehicles, electric vehicles, and autonomous vehicles. They play a key role in suspension systems, improving ride comfort and safety.
• Aerospace: Used in control surfaces and landing gear.
• Industrial Machinery: Found in levers, actuators, and return mechanisms.
• Electronics and Consumer Goods: Used in battery compartments, door mechanisms, and toys.
• Construction, Telecommunications, Energy, Healthcare, and Packaging: Each sector uses extension springs for specific needs.

Recent trends show a move toward lightweight and compact extension springs with better mechanical properties. Manufacturers use high-strength alloys, composites, and corrosion-resistant materials. Customization for electric and hybrid vehicles is growing, with a focus on energy efficiency and environmentally friendly production.

Tip: In high-stress environments, engineers must consider load requirements, stress distribution, material selection, and surface treatments. Heat treating and shot peening improve fatigue resistance and durability. Choosing the right wire diameter, spring geometry, and end types is crucial for reliable performance.

Spring manufacturing now uses automation and smart tools to improve precision and flexibility. In medical fields, biocompatible materials ensure reliability and surgical precision. These advances help extension coil springs meet the strict demands of modern industries.

Torsion Coil Springs

Torsion coil springs work by applying torque or rotational force. When twisted, they store energy and release it when the force is removed. These springs are vital in devices that need rotational motion.

Modern devices use torsion springs in many ways:

• Robotics and Precision Instruments: Double torsion springs provide torque in both directions, increasing versatility.
• Consumer Products: Found in laptop hinges, wearable technology clasps, and adaptive triggers in gaming controllers.
• Automotive: Used in trunk lids, throttle controls, and seat mechanisms.

Recent innovations include miniaturization, allowing springs to fit into smaller, lighter devices. Advances in material science have introduced composites and special alloys that handle higher stresses and harsh environments. Precision manufacturing enables mass production of miniature springs with high reliability.

A real-world example is the PS5 DualSense controller. Torsion coil springs in the adaptive triggers simulate different resistance levels, giving users realistic feedback. Engineers use high-quality materials and precise tolerances to ensure durability and responsiveness.

Note: The most common failure mode for torsion coil springs is fatigue from repeated loading. In 2025, designers address this by selecting materials with high fatigue endurance, optimizing coil geometry, and applying surface treatments like shot peening. Regular inspection and maintenance help detect early signs of damage.

Torsion coil springs now offer more customization options. Engineers can adjust coil diameter, material, and leg configuration to meet specific needs. These improvements expand the range of applications and enhance performance in demanding environments.

Emerging Types of Coil Springs in 2025

Variable Pitch Coil Springs

Variable pitch coil springs feature non-uniform coil spacing. This design allows engineers to control the spring rate without changing the coil diameter. Lower pitch coils deflect first, requiring less force. As the load increases, higher pitch coils engage, creating a progressive spring rate. This helps prevent spring surge, which is a damaging oscillation caused by resonance.

• Key features:
  • Non-constant coil spacing for tailored spring rates.
  • Progressive engagement for smooth force distribution.
  • Surge prevention for longer spring life.
  • Mimics multiple springs in one component.

Automotive and semiconductor equipment industries use variable pitch coil springs to control vibration and avoid resonance-related damage. High-performance vehicles benefit from a soft ride and stable handling, especially during cornering. Commercial vehicles achieve smooth performance across different payloads. Modern CNC coiling equipment enables precise customization for these applications.

Variable pitch coil springs improve vibration isolation and durability, making them essential in sensitive equipment and advanced vehicle suspensions.

Miniature and Micro Coil Springs

Miniature and micro coil springs play a critical role in medical devices, electronics, and aerospace. Manufacturers produce these springs with wire diameters as small as 0.002 inches and coil diameters down to 0.010 inches. Advanced materials like Elgiloy and Nitinol provide strength, corrosion resistance, and biocompatibility.

Micro coil springs appear in drug delivery systems, implantable devices, and surgical instruments. They maintain compression, regulate dosage, and offer tactile feedback. Precision engineering and advanced manufacturing techniques, such as CNC micro-coiling and cleanroom production, ensure tight tolerances and reliable performance.

Manufacturing tolerances are crucial for reliability. CNC coiling, laser cutting, and electroforming allow for exact specifications. These processes help micro coil springs perform consistently under stress and temperature changes, which is vital for electronics and medical devices.

Smart Material and Advanced Alloy Coil Springs

Smart material coil springs use shape memory alloys (SMAs) and hybrid composites. SMAs have unique properties such as temperature-dependent shape memory, superelasticity, and adaptive stiffness control. These springs reduce vibration amplitude more effectively than traditional coil springs.

• Latest developments:
  • SMA coil springs enable active stiffness tuning with electrical current.
  • Serve as both sensors and actuators.
  • Improved SMA compositions extend temperature ranges and stability.
  • Hybrid composites offer self-healing, toughness, and damping.

SMAs find applications in aerospace, automotive, robotics, and biomedical sectors. They provide recoverable deformation and adaptive multifunctionality. Numerical modeling and experimental tests confirm their effectiveness in vibration control and structural enhancement.

Trends and Innovations in Coil Springs

New Materials and Coatings for Coil Springs

In 2025, manufacturers use advanced materials to improve the performance of coil springs. Chrome silicon, chrome vanadium, titanium alloys, and super alloys like Inconel, Hastelloy, and Nimonic offer high strength, elasticity, and corrosion resistance. These materials used to make springs help them last longer and handle greater stress. Stainless steel remains popular for its ability to resist rust. To further protect coil springs, companies apply coatings such as nickel, galvanized steel, and zinc plating. Polyester-based coatings provide UV resistance and work well in different climates. Polyurethane coatings add scratch and chemical resistance. Powder coating and heat treatments also increase durability and reduce maintenance. In harsh environments, advanced coatings act as barriers against moisture, salt, and chemicals. Polymer, ceramic, and metallic layers each offer unique benefits, such as thermal resistance or low friction. Surface treatments like shot peening harden the spring surface and boost fatigue resistance.

Sustainability and Eco-Friendly Coil Spring Designs

Sustainability shapes how companies design and produce coil springs. Lean manufacturing reduces waste and improves efficiency. Many factories follow ISO 14001 standards to show their commitment to the environment. Custom manufacturing allows each spring to fit its application, which cuts down on material waste. Companies now use recyclable and sustainably sourced materials to support conservation. Some manufacturers reclaim and reuse materials from old springs, following circular economy models. Energy-efficient machines and renewable energy sources help lower emissions. Automation and smart sensors monitor production, reduce errors, and save energy. These steps help reduce the carbon footprint of coil spring production and support global green initiatives.

Digital Design and Customization in Coil Springs

Digital design tools have changed how engineers create coil springs. Programs like Spring Creator 5.0 let designers enter exact requirements, choose materials, and see instant feedback on spring rate and load capacity. These tools help avoid mistakes and speed up development. Manufacturers benefit from quick prototyping, easy design changes, and reliable quality. Digital simulation tools, such as multibody dynamics and finite element analysis, predict how coil springs will perform under real-world conditions. These simulations help engineers find stress points and improve designs before making physical samples. As a result, companies can deliver custom coil springs faster and with greater accuracy.

How to Choose the Right Coil Spring

Key Selection Factors for Coil Springs

Selecting the right coil spring involves several important steps. Engineers first identify the type of spring needed, such as compression, extension, or torsion. Each type has unique geometric and functional properties. They measure geometric features like wire diameter, outer diameter, spring rate, pitch, and solid length to ensure the spring fits and works properly. Material choice matters. Stainless steel resists corrosion, while nickel-based alloys handle high temperatures. Larger wire diameters and reduced design loads help extend spring life. End types, dead coils, and variable pitch also affect performance and stability. Environmental factors, such as temperature and humidity, influence material selection. Accurate measurement of critical dimensions, including free length and total coils, ensures the spring meets application needs. For specialized uses, consulting with manufacturers or using custom design services helps tailor springs to precise requirements.

Tip: Always check that the operating frequency stays well below the spring’s natural frequency to avoid resonance and possible damage.

Matching Types of Coil Springs to Applications

Engineers match types of springs to specific applications by understanding load conditions, space limits, and environmental factors. Compression springs absorb shocks and maintain force in automotive suspensions, medical devices, and pens. Extension springs provide tension and return force in trampolines, levers, and screen doors. Torsion springs deliver rotational force in garage doors, clothespins, and surgical instruments. Material selection depends on the application. Stainless steel works well for corrosion resistance, music wire offers high tensile strength, and chrome silicon resists high temperatures and fatigue. Correct spring dimensions, such as wire diameter and coil count, ensure proper fit and reliable performance. Advanced tools like Spring Finder 5.0 and Spring Creator 5.0 allow engineers to design custom springs and validate their performance with force testers.

Common Mistakes When Selecting Coil Springs

Mistakes in coil spring selection can lead to serious problems. Excessive spring stress causes breakage or permanent deformation. Choosing the wrong material increases the risk of failure. Engineers sometimes overlook the importance of matching spring type and dimensions to the application. Using incorrect or worn springs may cause vehicle sagging, uneven tire wear, and rough ride quality. The table below highlights common mistakes and their consequences:

Note: Using specialized resources and design tools helps engineers avoid these mistakes and ensures springs meet performance and reliability standards.

Understanding coil spring types helps engineers and designers make smart choices in 2025. Advances in materials, digital tools, and manufacturing methods expand what coil springs can do. Key trends include:

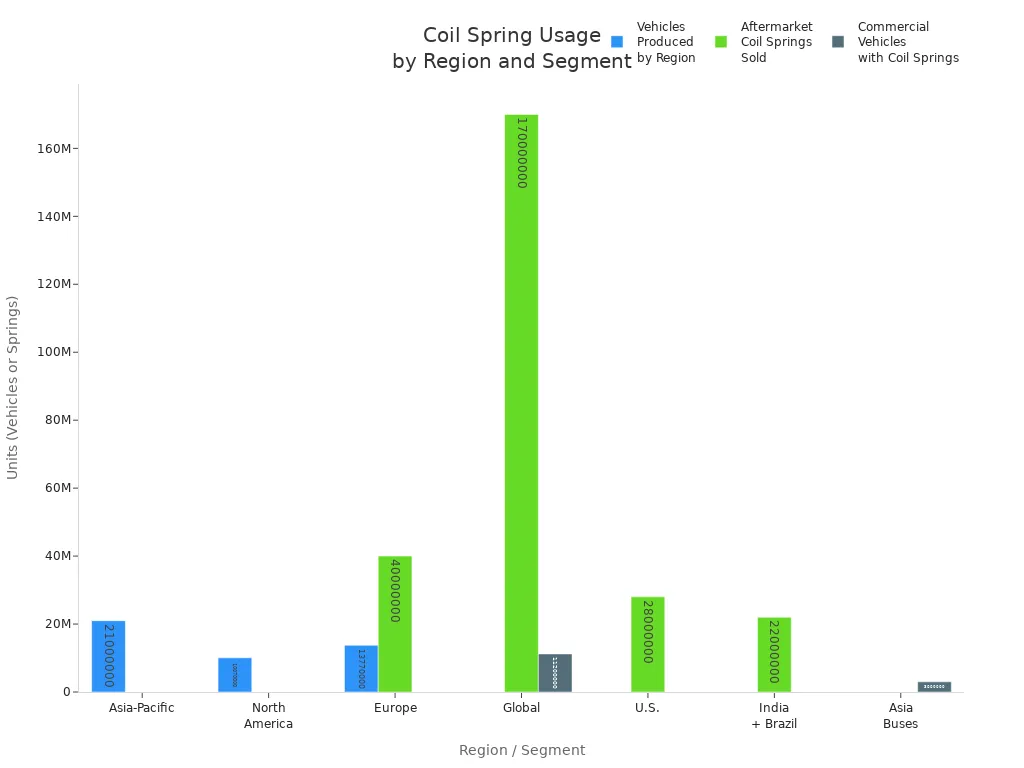

• The automotive sector uses about 45% of coil springs, focusing on comfort and safety.
• Lightweight materials and smart technologies improve performance and durability.
• Asia Pacific leads market growth, while Europe and North America focus on customization and aftermarket needs.

Engineers should always match spring type to load, environment, and the latest industry trends for the best results.

FAQ

What is the main difference between helical springs and leaf springs?

Helical springs use a coiled wire to store energy. Leaf springs use stacked metal strips. Engineers often choose helical springs for car suspensions and small devices. Leaf springs appear in heavy vehicles like trucks because they handle large loads well.

How do tension springs work in everyday products?

Tension springs stretch when pulled. They return to their original shape when released. People find these springs in trampolines, screen doors, and garage doors. The design helps hold objects together or return them to a starting position.

Where do engineers use spiral springs?

Engineers use spiral springs in clocks, seatbelt retractors, and measuring tapes. The spiral shape stores rotational energy. This design allows devices to wind up and release energy smoothly over time.

Why do some vehicles still use leaf springs instead of helical springs?

Some trucks and commercial vehicles use leaf springs because they support heavy loads and provide stability. Helical springs work better for comfort and lighter vehicles. Each spring type fits different needs based on weight and performance.

What makes helical springs important in modern technology?

Helical springs appear in car suspensions, electronics, and medical devices. Their shape allows for precise control of force and movement. Engineers rely on these springs for durability and consistent performance in many products.
