How to Replace Coil Springs

Coil springs are essential suspension components that require proper understanding for safe replacement and maintenance. This comprehensive guide addresses common questions about coil spring functionality, replacement procedures, and technical specifications. Whether you’re a professional mechanic or DIY enthusiast, understanding these critical components ensures vehicle safety and optimal performance.

Table of Contents

• What is a Car Coil Spring?
• Understanding Coil Spring Terminology
• What Holds Dampening Coil Springs in Place?
• Which Statement About Coil Springs is True?
• How Long Do Coil Springs Last?
• How to Replace Coil Springs
• How to Install a Coil Spring
• How to Shorten Coil Springs
• Professional Quality and Manufacturing Standards

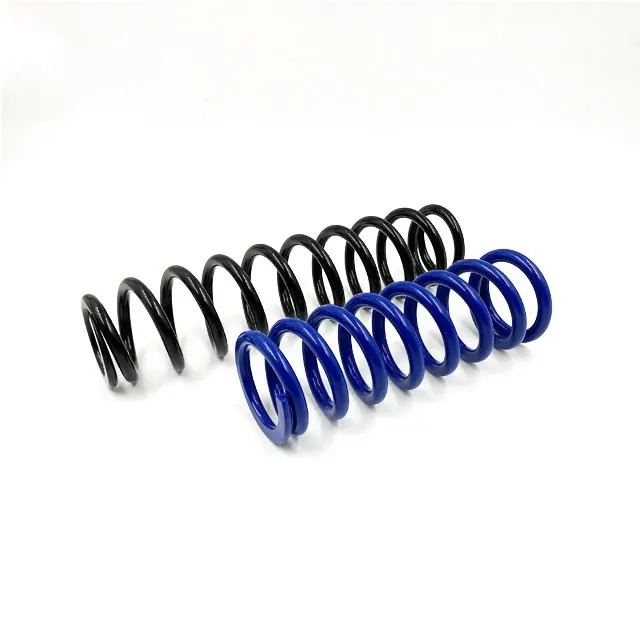

What is a Car Coil Spring?

A car coil spring is a helical-shaped suspension component made from specially treated spring steel that supports the vehicle’s weight while allowing controlled vertical movement of the wheels. These springs absorb road impacts, maintain ride height, and work in conjunction with shock absorbers to provide comfortable and safe driving experiences.

Primary Functions of Car Coil Springs

• Load Support: Bears the vehicle’s static weight and dynamic loads
• Impact Absorption: Cushions road irregularities and bumps
• Ride Height Maintenance: Maintains proper vehicle stance and ground clearance
• Wheel Control: Allows controlled wheel movement while maintaining tire contact
• Handling Enhancement: Contributes to vehicle stability and cornering performance

Coil Spring Construction

Modern coil springs are manufactured from high-carbon spring steel wire, typically ranging from 10-20mm in diameter. The wire is formed into a helical shape and heat-treated to achieve optimal strength and flexibility. Premium springs use materials like SAE9254, 60Si2Mn, and 55CrSiA for enhanced durability and performance.

Understanding Coil Spring Terminology

Various terms are used to describe coil springs, and understanding these distinctions helps in proper selection and application:

Common Terms Explained

• Coil Spring: The standard term for helical springs used in automotive applications
• Coiled Spring: Alternative terminology emphasizing the coiled/helical construction
• Spring Coil: Often refers to individual turns or the complete spring assembly
• Car Coil Spring: Specifically denotes automotive suspension springs
• Suspension Spring: Broader term including coil, leaf, and torsion bar springs

All these terms essentially refer to the same component, with slight variations in usage depending on context and regional preferences. The key is understanding that they all describe the helical spring used in vehicle suspension systems.

What Holds Dampening Coil Springs in Place?

Coil springs are held in position by a carefully designed system of mounting points and retention mechanisms that ensure proper alignment and function:

Upper Spring Mount Components

• Spring Perch: Metal platform that supports the top of the spring
• Strut Mount: In MacPherson strut systems, integrates spring seat with strut bearing
• Rubber Isolator: Cushions spring contact and reduces noise transmission
• Retaining Hardware: Bolts and brackets securing the assembly to chassis

Lower Spring Mount Components

• Lower Control Arm: Provides mounting point and controls wheel movement
• Spring Pocket: Formed depression that centers and locates the spring
• Bump Stop: Prevents spring over-compression during extreme movements
• Spring Insulator: Rubber or polyurethane pad for vibration isolation

Retention Mechanisms

The spring is held in place through:

1. Gravitational Force: Vehicle weight naturally compresses and positions the spring
2. Spring Tension: Pre-load keeps spring seated in both upper and lower mounts
3. Geometric Constraints: Shaped spring seats prevent lateral movement
4. Integrated Design: In coilover systems, springs are captured on the shock absorber body

Which Statement About Coil Springs is True?

Several statements about coil springs are commonly made. Here are the factual truths based on engineering principles and practical experience:

True Statements About Coil Springs

How Long Do Coil Springs Last?

Coil spring lifespan varies significantly based on multiple factors, but quality springs typically provide reliable service for substantial periods:

Expected Service Life

• Standard Applications: 80,000-120,000 miles under normal conditions
• Heavy-Duty Use: 60,000-100,000 miles with frequent heavy loads
• Performance Applications: 50,000-80,000 miles due to higher stress levels
• Premium Springs: May exceed 150,000 miles with proper maintenance

Factors Affecting Lifespan

• Material Quality: Premium steel grades like SAE9254 offer superior durability
• Manufacturing Process: Proper heat treatment and shot peening extend life
• Operating Environment: Salt exposure and extreme temperatures reduce lifespan
• Load Conditions: Consistent overloading accelerates fatigue failure
• Maintenance: Regular inspection and cleaning prevent premature failure

How to Replace Coil Springs

Coil spring replacement is a complex procedure requiring proper tools, safety equipment, and technical knowledge. This process should only be attempted by experienced technicians due to safety risks.

Required Tools and Equipment

• Spring compressor (internal or external type)
• Floor jack and jack stands
• Socket and wrench sets
• Pry bars and specialized suspension tools
• Safety equipment (glasses, gloves, protective clothing)

Pre-Replacement Inspection

1. Visual Assessment: Check for obvious damage, sagging, or corrosion
2. Measurement: Compare ride height side-to-side and front-to-rear
3. Component Check: Inspect related parts (struts, mounts, bushings)
4. Spring Identification: Note part numbers and specifications for replacement

Replacement Procedure Overview

1. Vehicle Preparation: Secure vehicle on level surface with proper support
2. Wheel Removal: Remove wheels and gain access to suspension components
3. Component Disconnection: Disconnect stabilizer links, ball joints as needed
4. Spring Compression: Use proper compressor to safely compress spring
5. Spring Removal: Carefully remove compressed spring from vehicle
6. Installation: Install new spring with proper orientation and seating
7. Reassembly: Reconnect all components with proper torque specifications
8. Alignment Check: Verify wheel alignment after completion

How to Install a Coil Spring

Proper coil spring installation ensures optimal performance and safety. The process varies depending on suspension design but follows consistent principles:

MacPherson Strut Installation

1. Strut Removal: Remove complete strut assembly from vehicle
2. Spring Compression: Compress spring using appropriate compressor
3. Strut Disassembly: Remove strut mount nut and separate components
4. Spring Replacement: Install new spring with proper orientation
5. Reassembly: Reassemble strut with new components as needed
6. Installation: Install complete assembly back into vehicle

Conventional Spring Installation

1. Lower Control Arm: Support arm and compress spring in place
2. Upper Disconnection: Disconnect upper mounting points
3. Spring Removal: Carefully remove old spring from position
4. New Spring Positioning: Position new spring with proper alignment
5. Reconnection: Reconnect upper mounts and release compression

Critical Installation Points

• Spring Orientation: Ensure proper top/bottom positioning
• Seat Alignment: Verify spring seats properly in all mounting points
• Insulator Placement: Install rubber isolators in correct positions
• Torque Specifications: Follow manufacturer’s torque requirements

How to Shorten Coil Springs

Important Safety Warning: Shortening coil springs by cutting is strongly discouraged and can result in dangerous handling characteristics, component failure, and legal liability.

Why Cutting Springs is Problematic

• Spring Rate Changes: Cutting increases spring rate unpredictably
• Stress Concentration: Cut ends create failure points
• Handling Degradation: Altered suspension geometry affects safety
• Warranty Void: Modification voids manufacturer warranties
• Legal Issues: May violate vehicle safety regulations

Professional Alternatives

Instead of cutting springs, consider these safer options:

• Lowering Springs: Professionally designed springs for reduced ride height
• Coilover Systems: Adjustable height with maintained spring rates
• Spring Spacers: For minor height adjustments
• Custom Springs: Engineered specifically for your application

If Cutting is Absolutely Necessary

Should professional cutting be required, it must be done by experienced spring manufacturers with proper equipment:

1. Professional Assessment: Engineer calculus of new spring characteristics
2. Precise Cutting: Use proper cutting tools to minimize stress concentration
3. End Treatment: Properly finish cut ends to reduce failure risk
4. Testing: Verify spring rate and load capacity after modification
5. Documentation: Maintain records of modifications for safety and legal purposes

Professional Quality and Manufacturing Standards

At Max Auto, we understand the critical importance of coil spring quality and safety. Our suspension spring manufacturing expertise ensures reliable performance and extended service life across diverse applications.

Advanced Manufacturing Capabilities

Our TS16949-certified facility employs advanced production techniques and premium materials:

• Material Selection: 60Si2Mn, 60Si2MnA, 55CrSiA, and SAE9254 spring steels
• Heat Treatment: Precise temperature control for optimal spring properties
• Shot Peening: Surface treatment for enhanced fatigue resistance
• Quality Control: Comprehensive testing throughout production process

Comprehensive Product Range

Our spring portfolio includes solutions for various applications:

• Heavy-duty coil springs for commercial and industrial applications
• Coilover springs for performance and adjustable applications
• Standard replacement springs for passenger vehicles
• Custom-engineered solutions for specialized requirements

Technical Support and Services

Our engineering team provides comprehensive support including:

• Spring rate calculations and load analysis
• Custom spring design and development
• PPAP documentation and quality reports
• Installation guidance and technical consultation

Quality Assurance Testing

Every spring undergoes rigorous testing using advanced equipment:

• Universal tensile testing for strength verification
• Fatigue testing for durability assessment
• Metallographic analysis for material quality
• Salt spray testing for corrosion resistance
• Dimensional inspection for precision compliance

With over 30 years of spring manufacturing experience and a commitment to quality excellence, Max Auto delivers coil spring solutions that meet the demanding requirements of modern automotive applications. Our integrated manufacturing approach, from raw material processing to final assembly, ensures consistent quality and competitive pricing.

Whether you need standard replacement springs, custom-engineered solutions, or technical consultation for spring selection, our experienced team provides the expertise and support necessary for successful outcomes. Contact us today to discuss your coil spring requirements and discover why leading automotive manufacturers trust Max Auto for their suspension component needs.
