The future of the powder metallurgy factory involves a powerful fusion of digital intelligence and advanced material science. This evolution is transforming traditional manufacturing methods into highly precise and automated operations. The industry is poised for significant expansion, reflecting its growing importance in modern production.
This advanced powder metallurgy process enhances every stage of production, helping to meet the complex demands of next-generation industries. The primary goals are the development of new materials and the achievement of greater efficiency.
As our lead engineer, Max, states, “We’re moving from a process-driven factory to a data-driven one, where every particle of powder is tracked and optimized for performance.”
The Foundation of Powdered Metallurgy: A Modern Refresher
The powder metallurgy manufacturing process begins with high-quality metal powders, often produced through a method called atomization. This foundational process transforms raw materials into complex, high-strength components through three critical stages. Success in powder metallurgy depends on mastering each step to achieve the desired final properties.
Precision Blending and Mixing
The first stage involves the precise blending of different metal powders and lubricants. This step is crucial for creating a homogenous mixture that ensures uniform material properties throughout the final part. Modern factories use advanced sensor technologies to monitor blend uniformity in real time. Near-Infrared (NIR) spectroscopy, for example, allows for non-invasive analysis of the powder as it flows. This technology provides immediate data on the mixture’s consistency, helping engineers confirm that every batch meets exact specifications before moving to the next stage. This initial atomization and blending define the component’s potential.
High-Pressure Compaction
Next, the blended powder is fed into a die for high-pressure compaction. Powerful presses apply immense force, compacting the loose powder into a solid, pre-defined shape known as a “green compact.” This pressing and shaping stage is critical for establishing the part’s geometry, density, and dimensional accuracy. The precision of the pressing operation directly influences the final component’s strength and structural integrity after sintering. The goal of this shaping step is to create a fragile but accurate precursor to the final part.
High-Temperature Sintering
The final stage is high-temperature sintering. The green compact is heated in a controlled-atmosphere furnace to a temperature below the metal’s melting point. This heat causes the individual powder particles to bond, creating a strong, dense final part with a refined microstructure. The conditions must be exact.
For example:
- Aluminum alloys typically require a sintering temperature between 595°C and 625°C.
- The furnace atmosphere must be tightly controlled, often using nitrogen to help form aluminum nitride, which improves the final microstructure and properties.
This carefully managed sintering process fuses the materials, transforming the compacted powder into a durable, functional component.
The Evolving Powder Metallurgy Factory: Smart and Automated
The traditional powder metallurgy factory is transforming into a smart, connected ecosystem. This evolution integrates digital technologies to create a more efficient, precise, and responsive manufacturing environment. Automation and data intelligence are now core components, driving the industry toward new levels of performance.
The Industrial Internet of Things (IIoT)
The Industrial Internet of Things (IIoT) forms the digital backbone of the modern factory. IIoT involves a network of sensors embedded in machinery, from powder blenders to high-temperature sintering furnaces. These sensors collect vast amounts of real-time data on critical parameters like temperature, pressure, vibration, and humidity. This information provides engineers with a complete, live overview of the entire production line.
This constant stream of data is essential for predictive maintenance. AI-driven predictive maintenance significantly reduces downtime. It intelligently analyzes data from sensors and machine logs. AI algorithms detect patterns that indicate potential equipment failures, enabling timely interventions before costly breakdowns occur. This proactive strategy ensures production schedules remain intact. A report by McKinsey & Company highlights that this approach can reduce equipment downtime by up to 50%.
Note: For powder metallurgy presses, IIoT sensors are crucial for monitoring equipment health. This sensor data enables predictive maintenance schedules, which directly minimize unplanned downtime and extend the lifespan of the equipment.
AI and Machine Learning for Process Control
Artificial Intelligence (AI) and Machine Learning (ML) use the data collected by IIoT to optimize the manufacturing process. These intelligent systems can analyze complex relationships between process variables and final part quality. For example, an AI model can determine how slight changes in powder composition or compaction pressure will affect the final density and strength of a component. This technology moves beyond simple monitoring to active, intelligent control.
Engineers use specific machine learning algorithms to predict final part properties based on compaction and sintering data. This allows for adjustments before a part is even made, reducing waste and improving consistency. Common algorithms include:
- Artificial Neural Network (ANN)
- Support Vector Machine (SVM)
- Random Forest (RF)
- K-Nearest Neighbors (KNN)
This data-driven approach accelerates the development of new parts and ensures every component meets exact specifications.
Robotics and Automated Handling
Robotics and automation are key to increasing throughput and safety in powder metallurgy operations. Automated systems handle repetitive and physically demanding tasks with high precision. This reduces the risk of human error and frees up skilled technicians to focus on more complex work. The result is a safer, more efficient, and highly productive workflow.
Robots are especially valuable for loading and unloading heavy or hot materials. This automation enhances operational flexibility and allows for continuous, 24/7 operation. Common robotic systems used for these tasks include:
- Robotic-centered systems designed for autonomous, round-the-clock operation.
- Automated Guided Vehicles (AGVs) or Autonomous Mobile Robots (AMRs) for transporting materials between stations.
- Collaborative robot arms integrated directly with furnaces for automatic sample loading and retrieval.
This level of automation ensures the seamless flow of materials through the factory, from raw powder to finished part.
Advanced Materials and Powder Innovation
The future of manufacturing depends heavily on the development of new materials. Powder metallurgy is at the forefront of this innovation, enabling the creation of advanced materials with unique properties. The ability to engineer materials at the particle level opens up new possibilities for performance, strength, and sustainability. This focus on material science is pushing the boundaries of what components can achieve.
High-Performance Metal Alloys
Engineers are developing new high-performance metal alloys to meet the demands of extreme environments. These advanced materials offer superior strength, heat resistance, and lightweight characteristics. Powder metallurgy techniques create alloys with a homogeneous and refined microstructure, which improves their overall mechanical performance.
Titanium-aluminide (TiAl) alloys are a prime example. These materials are ideal for aerospace and automotive applications. Powder metallurgy processing gives them a significant advantage over traditional methods like arc melting. The resulting fine-grained microstructure leads to higher hardness and strength.
| Property | Powder Metallurgy (PM) | Arc Melting |
|---|---|---|
| Hardness | Higher | Lower |
| Ultimate Tensile Strength | Higher | Lower |
| Plasticity | Lower | Higher |
Note: The improved hardness from the PM process makes these materials very strong but also more brittle. Their fracture toughness is sometimes worse than that of technical ceramics.
High-Entropy Alloys (HEAs) represent another major breakthrough. These materials contain five or more principal elements in near-equal concentrations. This unique composition gives them exceptional properties. The powder process allows for the creation of lightweight HEAs for specialized uses.
| Alloy | Application | Density (g/cm³) |
|---|---|---|
| Al₁₄Li₁₁Mg₃₅Ti₁₅Zr₂₅ | Aerospace | 3.36 |
| Al₂₀Be₂₀Fe₁₀Si₁₅Ti₃₅ | High-temperature | 3.91 |
Nanomaterials and Composite Powders
Innovation extends to the nanoscale with the integration of nanomaterials into metal powders. This creates composite materials with enhanced properties. Adding small amounts of nanoparticles, like graphene or ceramics, can dramatically change the final component’s characteristics. This approach allows for the precise tuning of material properties for specific applications.
Graphene-copper composites showcase this potential. Adding graphene to copper powder affects both its strength and electrical conductivity.
- Strength, hardness, and wear resistance increase as more graphene is added.
- The composite with 1 wt% graphene shows a strength increase of more than double compared to pure copper.
- Electrical conductivity, however, decreases with more graphene.
- Engineers found optimal properties with a sintering temperature of 750 °C and 0.1 wt% graphene.
Ceramic-metal composites, or cermets, are another important class of materials. They combine the hardness of ceramics with the toughness of metals. These materials are excellent for wear-resistant coatings and cutting tools. The powder metallurgy process is perfect for mixing these different materials.
| Material | Key Property |
|---|---|
| Tungsten Carbide-Cobalt (WC-Co) | Exceptional hardness and wear resistance |
| Nickel-Chromium Silicon Carbide (NiCr-Cr₃C₂) | High hardness with oxidation resistance |
Sustainable and Recycled Powders
Sustainability is a major driver in the evolution of the powder metallurgy factory. The industry is increasingly focused on using recycled and sustainable materials. Powder metallurgy is inherently efficient. It produces very little waste compared to subtractive manufacturing methods. This high material efficiency is a key environmental benefit.
The use of recycled powder is growing. Companies can reclaim scrap metal from other manufacturing processes. They atomize this scrap to create high-quality powder for new parts. This circular economy approach reduces the need for virgin raw materials. It also lowers the energy consumption associated with mining and refining new metals. This shift not only benefits the environment but also offers cost savings. The development of these sustainable materials ensures the long-term viability of the powder metallurgy process.
Next-Generation Powder Metallurgy Processing
Innovations in processing technology are redefining the capabilities of the powder metallurgy factory. Next-generation methods enable faster production, superior material properties, and the creation of highly complex components. These advancements are pushing the boundaries of what is possible in modern manufacturing.
Metal Additive Manufacturing (3D Printing)
Metal additive manufacturing, or 3D printing, builds parts layer-by-layer directly from a digital design. This approach complements traditional powder metallurgy by offering unmatched design freedom. Two prominent methods are Selective Laser Melting (SLM) and Binder Jetting. Each serves different manufacturing needs.
- Selective Laser Melting (SLM) uses a laser to fuse metal powder particles. It excels at creating smaller, intricate parts with high precision and density. This process produces components with excellent strength and a fine microstructure.
- Binder Jetting uses a liquid binding agent to join powder particles. It is significantly faster for high-volume production. This method is ideal for larger, simpler parts where speed is a priority.
The choice between them depends on the application’s specific requirements for speed and complexity.
| Feature | SLM | Binder Jetting |
|---|---|---|
| Speed | Moderate | Very fast |
| Best For | Small, complex parts | Large, simpler parts |
| Resolution | High | Lower |
Advanced Sintering Techniques

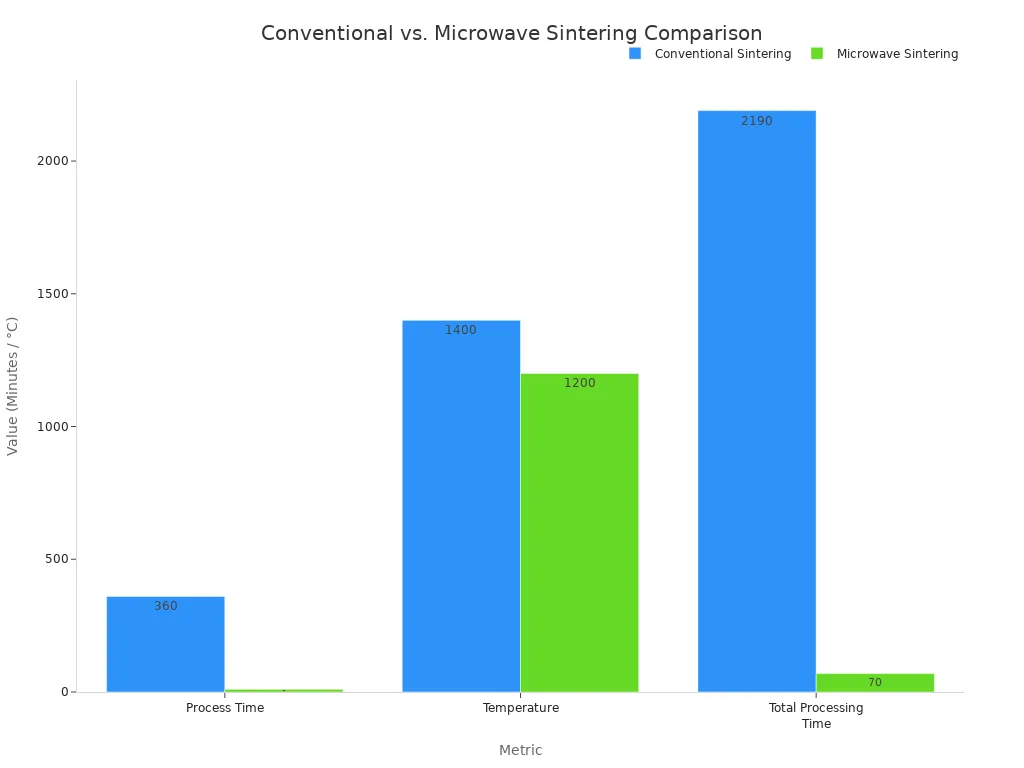

Sintering is a critical step that transforms compacted powder into a solid part. Advanced sintering techniques are making this process faster and more energy-efficient. Microwave sintering is a leading example of this innovation. It uses microwaves for ‘volumetric heating,’ warming the material from the inside out. This method drastically reduces processing time and temperature compared to conventional furnaces.
This efficiency has significant commercial potential.
Professor Lee stated, “This research introduces a new manufacturing paradigm that enables the rapid and efficient production of high-performance solid oxide electrolysis cells. Compared to conventional processes, our approach drastically reduces both energy consumption and production time, offering strong potential for commercialization.”
Another method, two-step sintering, uses a precise heating schedule to produce dense materials with minimal grain growth, achieving up to 99% theoretical density.
Spark Plasma Sintering (SPS)
Spark Plasma Sintering (SPS) is a rapid consolidation technique that applies high electrical current and uniaxial pressure simultaneously. This process generates spark plasma between powder particles, leading to extremely fast heating and sintering. SPS is highly effective for creating fully dense nanostructured materials because it prevents grain growth while promoting densification. The key benefits of this advanced sintering process include:
- High heating rates and short processing times
- Lower sintering temperatures, reducing energy consumption
- Improved material properties and fine microstructure
The combination of an electrical field, Joule heating, and pressure creates an environment for rapid and uniform densification. This allows for the fabrication of materials with unique properties that are difficult to achieve with conventional methods.
Metal Injection Molding (MIM) Evolution
Metal Injection Molding (MIM) is a highly advanced manufacturing process. It combines the design flexibility of plastic injection molding with the material strength of powder metallurgy. This technology excels at producing small, complex, and high-volume metal parts with exceptional precision. The MIM process transforms fine metal powder into solid components through four key stages:
- Feedstock Preparation: Metal powder is mixed with a polymer binder to create a feedstock with a toothpaste-like consistency.
- Injection Molding: The feedstock is heated and injected into a mold cavity, forming the part’s intricate shape.
- Debinding: The binder material is removed from the molded part, usually through thermal or solvent processes.
- Sintering: The part is heated in a high-temperature furnace, causing the metal particles to fuse and densify into a solid, strong component.
The evolution of MIM offers a significant advantage by creating net-shape parts that require minimal secondary work. This capability drastically reduces the need for extensive machining. Traditional manufacturing often involves multiple, costly machining steps to achieve a final design. MIM, however, produces complex geometries directly from the mold, eliminating most of this machining. This makes it a cost-effective alternative for intricate components. The process minimizes material waste and reduces the need for final machining and finishing.
The primary benefit of MIM is its ability to consolidate multiple components into a single, complex part, which would otherwise require difficult machining.
| Feature | Metal Injection Molding (MIM) | Traditional CNC Machining |
|---|---|---|
| Part Complexity | Excellent for intricate, 3D shapes | Limited by tool access and geometry |
| Material Waste | Very low (typically <10%) | High (can exceed 50%) |
| Production Volume | Ideal for high-volume runs | Cost-effective for low to medium volume |
| Secondary Machining | Minimal to none required | Often requires extensive finishing |
Expanding Applications in Modern Industries
The unique advantages of powder metallurgy are driving innovation across several advanced industries. This manufacturing method enables the creation of complex, high-performance components that are difficult or impossible to produce with traditional techniques. The growing number of applications highlights the technology’s versatility and importance.
Electric Vehicles (EVs) and E-Mobility
Powder metallurgy is essential to modern electric vehicle production. It delivers components that provide superior performance and efficiency. The process is ideal for creating specialized parts for EV motors and transmissions.
- Electric Motors: Manufacturers use Soft Magnetic Composites (SMCs) to build stators for advanced e-motors. These materials reduce energy loss and allow for high-torque motor designs.
- Transmissions: High-strength gears and carriers made from powder metals are critical for planetary gearboxes. These parts manage speed and torque with high precision.
Medical and Biomedical Devices
The medical field has many applications for biocompatible materials. Titanium (Ti) and its alloys are preferred for orthopedic implants. They offer high strength, corrosion resistance, and excellent biocompatibility compared to other metals. The manufacturing process allows for precise control over material properties.
Newer titanium alloys incorporate elements like niobium and tantalum to further improve their biocompatible properties. This makes them ideal for creating advanced implants such as hip joints and bone plates.
Robotics and Automation Components
Robotics and automation systems depend on lightweight, strong, and complex parts. This is where powder metallurgy provides significant advantages, offering excellent design flexibility. The technology produces net-shape components that require minimal finishing. This design flexibility allows engineers to create intricate structural parts like housings and brackets. These components form the strong framework of a robotic arm. The process also creates high-precision gears that transmit motion smoothly, which is vital for the precise movements of modern robots.
Quality Assurance in the Digital Age
Ensuring part quality in the modern powder metallurgy factory relies on advanced digital tools. These technologies provide real-time insights and comprehensive analysis, moving quality control from post-production inspection to an integrated part of the manufacturing process. This shift guarantees that every component meets strict performance standards.
In-Situ Process Monitoring
In-situ monitoring involves using sensors to track production in real time. This immediate feedback allows engineers to make instant adjustments, ensuring consistent quality. In metal additive manufacturing, for example, precise temperature control is critical. Engineers use several sensor technologies to monitor the melt pool.
- Infrared (IR) Thermal Cameras: These capture the temperature distribution of the melt pool, helping to assess process stability.
- Two-Color Pyrometers: These devices offer improved accuracy over IR cameras because their measurements are independent of material emissivity.
- Eddy Current (EC) Sensors: This technology detects temperature changes by measuring shifts in electrical conductivity, offering another way to monitor the melt pool.
Advanced Non-Destructive Testing (NDT)
Advanced NDT methods allow for thorough inspection without damaging the final part. Computed Tomography (CT) scanning is a powerful tool that provides a complete 3D view of a component’s internal structure. It can identify hidden flaws like cracks or porosity, ensuring the final part has the desired material properties.
| Feature | CT Scanning Advantage |
|---|---|
| Visualization | Provides full 3D internal and external views |
| Defect Analysis | Quantifies defect size, volume, and location |
| Speed | Offers fast feedback for production adjustments |
| Accuracy | Detects micro-defects down to a few microns |
Ultrasonic testing is another key NDT technology. It uses sound waves to detect subsurface cracks and create internal density maps, which is crucial for verifying structural integrity and final part properties.
Digital Twin Technology
Digital twin technology creates a virtual replica of a physical asset, like a sintering furnace. This digital model uses real-time data from sensors to simulate, predict, and optimize performance. For a furnace, a digital twin can predict heat distribution and its effect on the final component’s grain size. By using advanced models, such as a Convolutional Neural Network (CNN), the system can evaluate sintering quality in real time. This predictive capability allows for adaptive temperature control, which has been shown to increase the yield rate of high-performance parts to nearly 99%.
The modern powder metallurgy factory is an integrated ecosystem. It combines smart technologies, advanced materials, and innovative processes. This synergy creates a production environment with superior efficiency.
As Max often says, “The goal is to build a factory that can produce a complex, custom part for a satellite with the same efficiency as a simple gear for a car, and that future is now.”
The evolution of the powder metallurgy factory is critical. Advanced powder metallurgy transforms raw powder for better production. This modern powder metallurgy factory ensures every particle of powder contributes to a superior final production.
FAQ
What is powder metallurgy?
Powder metallurgy is a manufacturing process. It creates strong metal parts from fine powders. The method involves compacting the powder into a shape and then heating it in a furnace. This fuses the particles together into a solid, dense component.
How does AI improve the powder metallurgy process?
AI and machine learning analyze real-time data from IIoT sensors. These systems predict how process changes affect part quality. This allows engineers to optimize production, reduce waste, and ensure every component meets exact specifications.
What makes Metal Injection Molding (MIM) a good choice?
The MIM process excels at producing small, complex parts in high volumes. It creates net-shape components directly from the mold. This capability eliminates the need for most secondary machining, which reduces costs and material waste for intricate designs.
Is powder metallurgy a sustainable manufacturing method?
Yes, powder metallurgy is highly sustainable. The process produces very little waste compared to traditional machining. Modern factories also use recycled metal powders. This approach reduces the need for new raw materials and lowers overall energy consumption.
