The piston rod is an essential component in the functioning of an engine. It serves as the critical link between the piston and crankshaft, enabling the engine to transform thermal energy into mechanical motion. Without the piston rod, the piston’s oscillatory movement would not effectively transfer power to the crankshaft, leaving the engine inoperative.
Engines that incorporate well-engineered piston rods benefit from enhanced efficiency and longevity. For example, advanced configurations like OP-FPELG achieve a thermal efficiency of 34% and peak in-cylinder pressures of 44 bar, demonstrating how optimized energy transfer reduces heat loss and elevates performance. By ensuring balance and precision, the piston rod promotes smooth engine operation while minimizing wear on other components.
Understanding the Piston Rod
What is a piston rod?
A piston rod is a vital component in an engine that connects the piston to the crankshaft. It plays a key role in transferring the energy generated by the piston’s movement to the crankshaft, which ultimately powers the engine. This rod is typically made from forged steel, ensuring it has the strength to handle the immense forces within the engine. Its surface is often chrome-plated to reduce wear and improve durability.
The piston rod is not just a simple connecting piece. It also helps maintain the alignment of the piston as it moves within the cylinder. This alignment is crucial for preventing damage to the piston skirt, which is the lower part of the piston that helps guide its motion. Without a properly functioning piston rod, the engine would lose efficiency and could suffer significant damage over time.
How does a piston rod work in an engine?
The piston rod operates as a bridge between the piston and the crankshaft. When the piston moves up and down inside the cylinder, the rod transmits this motion to the crankshaft, converting the linear movement into rotational energy. This rotational energy is what drives the engine’s output, powering vehicles or machinery.
The structure of the piston rod is designed to handle extreme conditions. It is a hard, chrome-plated piece of cold-rolled steel that extends from the hydraulic actuator to the machine component. In some engines, the rod has concentric holes that allow oil to flow through, aiding in cooling and lubrication. This design ensures the piston rod can withstand high temperatures and pressures without deforming or failing.
To further enhance its performance, engineers often apply specialized coatings to the piston rod. For example, a titanium nitride (TiN) coating reduces friction and wear, while a diamond-like carbon (DLC) coating minimizes wear on the cylinder liner and extends the service life of the piston elements. The table below highlights the effects of different coatings on wear reduction:
Coating Type | Effect on Wear Reduction | Additional Findings |
---|---|---|
TiN | Reduced friction and wear | Effective in preventing galling |
CrN | Fatigue wear observed | Requires ceramic additives for improvement |
DLC | Lowest wear on cylinder liner | Increases service life of piston elements |
The piston rod’s ability to transmit force efficiently and maintain the piston’s alignment ensures the engine operates smoothly. Its design and material selection directly impact the engine’s performance, durability, and fuel efficiency.

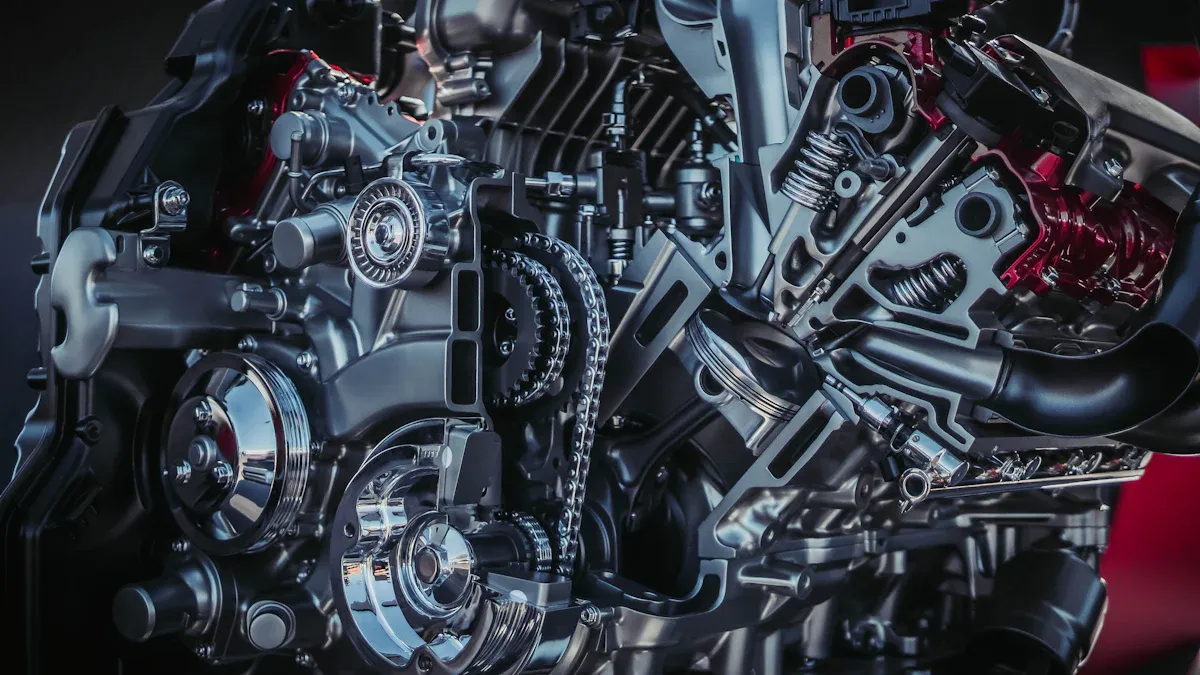

The Role of the Piston Rod in Engine Performance

Energy conversion and motion facilitation
The piston rod plays a vital role in converting energy within an engine. As the piston moves up and down during combustion, the piston rod transfers this linear motion to the crankshaft, transforming it into rotational energy. This rotational energy powers the engine and drives the vehicle forward. Without the piston rod, the piston’s movement would remain isolated, and the engine would fail to generate usable power.
The piston rod’s design ensures efficient energy transfer. Its chrome-plated surface minimizes friction, allowing smoother motion and reducing wear on the piston skirt and cylinder liner. Advanced coatings like titanium nitride (TiN) further enhance its performance by reducing friction and preventing galling. These features ensure the piston rod can withstand high temperatures and pressures, maintaining its functionality even under extreme conditions.
Maintaining engine balance and efficiency
The piston rod contributes significantly to engine balance and efficiency. It ensures the piston remains aligned within the cylinder, preventing unnecessary lateral movement or slapping against the cylinder walls. This alignment reduces wear on the piston skirt and minimizes energy loss during operation.
Studies have shown how piston rods optimize engine performance by controlling secondary motion and slapping forces. For example:
Study | Findings |
---|---|
Honda’s Hirotaka Murakami | Demonstrated that piston movement affects slapping energy during compression stroke, optimizing performance. |
Shah of the University of Auckland | Analyzed piston secondary motion and contact conditions, considering lubrication and surface roughness. |
N. Dolatabadi of Loughborough University | Applied targeted energy transfer theory to reduce secondary motion and slapping on cylinder liner. |
Guo, L. of Zhejiang University | Studied dynamic slapping force and its impact on cylinder liner, verified through bench tests. |
Wang, W. L. of North University of China | Built finite element model showing cylinder clearance significantly influences dynamic slapping force. |
These findings highlight the importance of a well-designed piston rod in maintaining engine balance and efficiency. By reducing slapping forces and optimizing motion, the piston rod ensures smoother operation and longer engine life.
Consequences of a damaged piston rod
A damaged piston rod can lead to severe engine issues. When the rod fails, the piston loses its alignment, causing excessive wear on the piston skirt and cylinder liner. This misalignment increases friction, reduces efficiency, and accelerates engine wear.
Case studies have documented the impact of damaged piston rods:
- Damage mechanisms in engine pistons often include thermal and mechanical fatigue.
- Fatigue-damaged pistons from various engines highlight the significance of these failures.
- Tribological properties of piston mechanisms reveal wear and oil consumption issues.
- A seized piston in a four-stroke diesel engine demonstrated how failure parameters lead to catastrophic damage.
- Thermal and mechanical fatigue significantly contribute to piston failures in internal combustion engines.
- Wear, temperature, and fatigue are key factors in piston damage, emphasizing the need for proper maintenance.
These examples underline the importance of regular inspection and timely replacement of damaged piston rods. By addressing issues early, you can prevent costly repairs and ensure your engine operates efficiently.

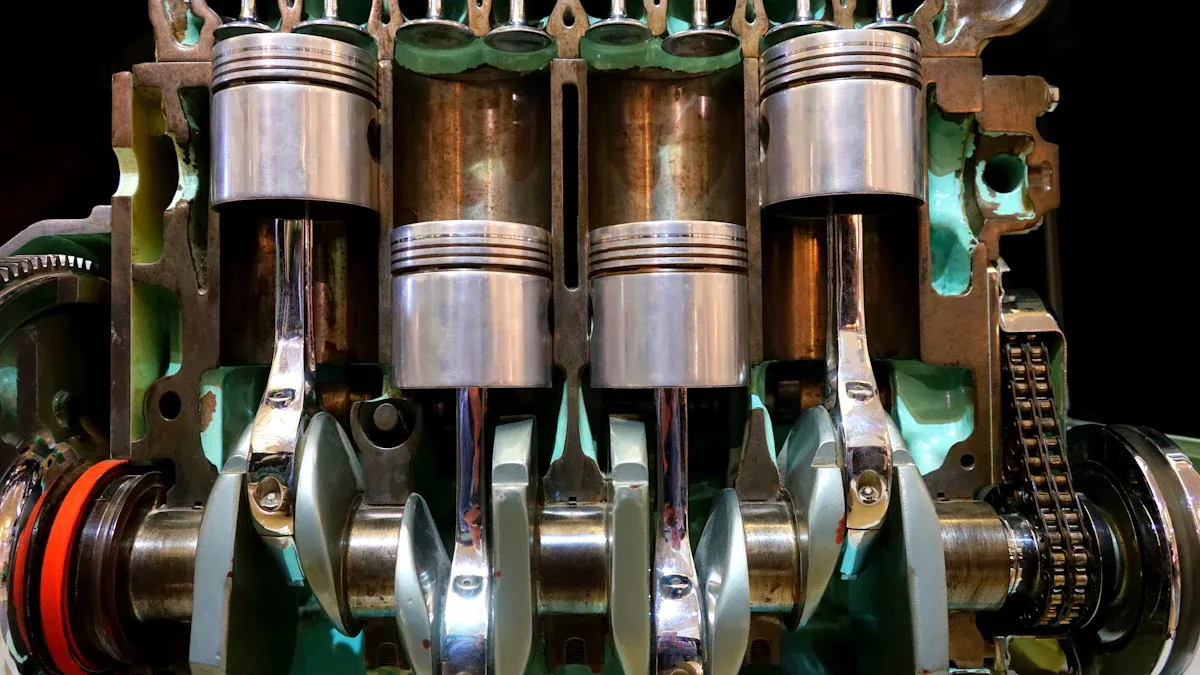

Materials and Design of Piston Rods

Common materials used in piston rods
The materials used in piston rods play a critical role in their performance and durability. Manufacturers often select materials based on their strength, fatigue resistance, and ability to withstand high temperatures. Commonly used materials include medium carbon steels like C45 and alloy steels such as 40Cr and 42CrMo4. These materials offer excellent mechanical properties, making them suitable for demanding applications.
Stainless steels like AISI 304 and 17-4PH are also popular choices, especially when corrosion resistance is a priority. For high-performance engines, beryllium alloys and advanced aluminum alloys are sometimes used due to their lightweight and high fatigue strength. The table below highlights the yield strength of some commonly used materials:
Material | Yield Strength (MPa) |
---|---|
45 steel | 355 |
27SiMn | 835 |
Additionally, structural steels like S355J0 and S275 JR are used in specific applications where vibration damping is essential. Each material offers unique properties that cater to different engine requirements.
Key design features for strength and durability
The design of a piston rod must prioritize strength and durability to ensure reliable engine performance. Engineers focus on optimizing dimensions to minimize stress and prevent buckling or fatigue. Advanced manufacturing processes, such as forging and heat treatment, enhance the rod’s mechanical properties.
Research emphasizes the importance of dimensioning piston rods to avoid failure. Buckling can lead to instability and collapse, making careful design essential for durability.
Coatings also play a significant role in improving durability. Titanium nitride (TiN) and diamond-like carbon (DLC) coatings reduce friction and wear, extending the lifespan of the piston rod. These features ensure the rod can withstand extreme conditions without compromising performance.
How materials and design influence performance
The combination of materials and design directly impacts engine efficiency and durability. High-strength materials reduce the risk of deformation under pressure, while advanced coatings minimize friction and heat transfer loss. For example, configurations like OP-FPELG achieve a thermal efficiency of 34%, outperforming other designs.
Configuration | Thermal Efficiency | Heat Transfer Loss |
---|---|---|
DCDP-FPELG | 32% | 28% |
SCSP-FPELG | 31% | 28% |
OP-FPELG | 34% | 26% |
Structural parameters, such as pinhole offset and piston skirt ovality, also influence performance. These factors affect secondary motion and slapping energy, which are critical for optimizing engine operation. By selecting the right materials and refining the design, you can ensure your piston rod contributes to smoother motion and higher efficiency.
Enhancing Engine Efficiency and Durability with Piston Rods
The relationship between piston rods and fuel efficiency
The piston rod plays a key role in improving fuel efficiency. It ensures the piston moves smoothly within the cylinder, reducing energy loss caused by friction or misalignment. When the piston operates efficiently, the engine burns fuel more effectively, producing more power with less waste. This optimized combustion process directly impacts fuel consumption, helping you save money and reduce emissions.
Advanced piston rod designs further enhance fuel efficiency. Engineers use lightweight materials like aluminum alloys to reduce the rod’s weight without compromising strength. This reduction in weight minimizes the energy required for the piston’s movement, allowing the engine to operate more efficiently. Coatings such as diamond-like carbon (DLC) also reduce wear on the piston skirt, ensuring consistent performance over time.
How durable piston rods reduce engine wear
Durable piston rods protect your engine from excessive wear. They maintain the piston’s alignment, preventing it from slapping against the cylinder walls. This alignment reduces stress on the piston skirt and cylinder liner, extending the lifespan of these components.
High-strength materials like alloy steels and stainless steels ensure the piston rod can withstand extreme pressures and temperatures. These materials resist deformation, even under heavy loads, keeping the piston’s motion stable. Coatings like titanium nitride (TiN) further enhance durability by reducing friction and preventing galling. With a durable piston rod, your engine experiences less wear, reducing the need for frequent repairs and replacements.
The importance of precision engineering
Precision engineering ensures the piston rod performs reliably under demanding conditions. Every detail, from the rod’s dimensions to its surface finish, impacts its ability to transfer energy efficiently. Engineers use advanced manufacturing techniques like forging and heat treatment to create piston rods with superior strength and fatigue resistance.
Accurate alignment of the piston rod minimizes secondary motion and slapping forces. This precision reduces wear on the piston skirt and cylinder liner, ensuring smooth operation. By investing in precision-engineered piston rods, you can maximize your engine’s efficiency and durability, keeping it running at peak performance for years.
Maintenance Tips for Piston Rod Longevity
Regular inspection and servicing
Regular maintenance is essential to keep your piston rods in top condition. You should inspect the hydraulic cylinder rod frequently for any signs of wear or damage. This includes checking for scratches, dents, or corrosion on the rod’s surface. A clean and smooth rod ensures proper alignment and reduces the risk of internal damage.
Maintaining an adequate filtration system for hydraulic fluid is another critical step. Contaminated fluid can cause abrasive wear on the piston rod and other engine components. By replacing filters and using clean hydraulic fluid, you can prevent contamination and extend the lifespan of your piston rods.
Additionally, sideloading should be avoided. Misalignment caused by sideloading can lead to uneven wear and eventual failure of the piston rod. Ensuring proper alignment during installation and operation minimizes this risk.
- Key maintenance practices include:
- Inspecting the rod for surface damage.
- Ensuring clean hydraulic fluid through proper filtration.
- Checking for sideloading to maintain alignment.
Identifying signs of wear or damage
Recognizing early signs of wear or damage can save you from costly repairs. Look for fluid leakage, which may appear as oil stains or puddles around the cylinder. Cylinder drift, where the piston rod fails to maintain its position, often indicates internal leaks or faulty seals.
Uneven or jerky movement is another warning sign. This could suggest damaged internal components or a worn piston rod. Seal leaks, internal barrel corrosion, and damage to the rod bearing can also compromise performance.
- Common signs of wear include:
- Fluid leakage or cylinder drift.
- Jerky or uneven movement.
- Corrosion or damage to internal components.
Using high-quality replacement parts
When replacing piston rods, always choose high-quality parts. Forged aluminum pistons, for example, are ideal for demanding applications like racing or high-performance engines. These pistons are up to 40% stronger than conventional cast pistons and run 18–20% cooler, providing better heat transfer and durability.
Type of Piston | Application Description |
---|---|
Conventional cast aluminum pistons | Used as original equipment in most passenger car and light truck applications. |
Hypereutectic alloy cast pistons | Used in many higher output engine applications. |
Forged aluminum pistons | Used in the most demanding applications, including racing, diesel engines, and high-performance applications. |
Investing in durable, precision-engineered parts ensures your engine operates efficiently and reduces the risk of future failures.
The piston rod is the backbone of your engine’s functionality. It transforms the piston’s motion into rotational energy, ensuring smooth and efficient operation. Its materials and design directly influence performance and durability. High-strength alloys and advanced coatings reduce wear, while precision engineering enhances alignment and energy transfer.
Proper care is essential for maintaining efficiency. Regular inspections, timely replacements, and using quality parts extend the lifespan of your piston rods. By prioritizing maintenance, you protect your engine from costly damage and ensure it runs at peak performance. A well-maintained piston rod keeps your engine reliable and fuel-efficient.
Tip: Treat your piston rod as the heart of your engine. Regular care ensures long-term performance and savings.
FAQ
What happens if a piston rod fails?
A failed piston rod can cause severe engine damage. Misalignment leads to excessive wear on the piston and cylinder walls. This increases friction, reduces efficiency, and may result in costly repairs. Regular inspections help you detect early signs of failure.
How often should you inspect piston rods?
You should inspect piston rods during routine engine maintenance or every 6-12 months. Look for signs of wear, corrosion, or damage. Early detection ensures your engine operates efficiently and prevents unexpected breakdowns.
Can you replace a piston rod yourself?
Replacing a piston rod requires technical expertise and specialized tools. If you lack experience, consult a professional mechanic. Incorrect installation can lead to engine imbalance and further damage.
What materials make piston rods durable?
Manufacturers use materials like alloy steel, stainless steel, and aluminum alloys for durability. These materials resist high temperatures and pressures. Coatings like titanium nitride (TiN) or diamond-like carbon (DLC) further enhance wear resistance.
How do piston rods improve fuel efficiency?
Piston rods ensure smooth piston movement, reducing energy loss from friction or misalignment. Lightweight materials and advanced coatings minimize wear, allowing the engine to burn fuel more effectively. This results in better fuel economy and lower emissions.
