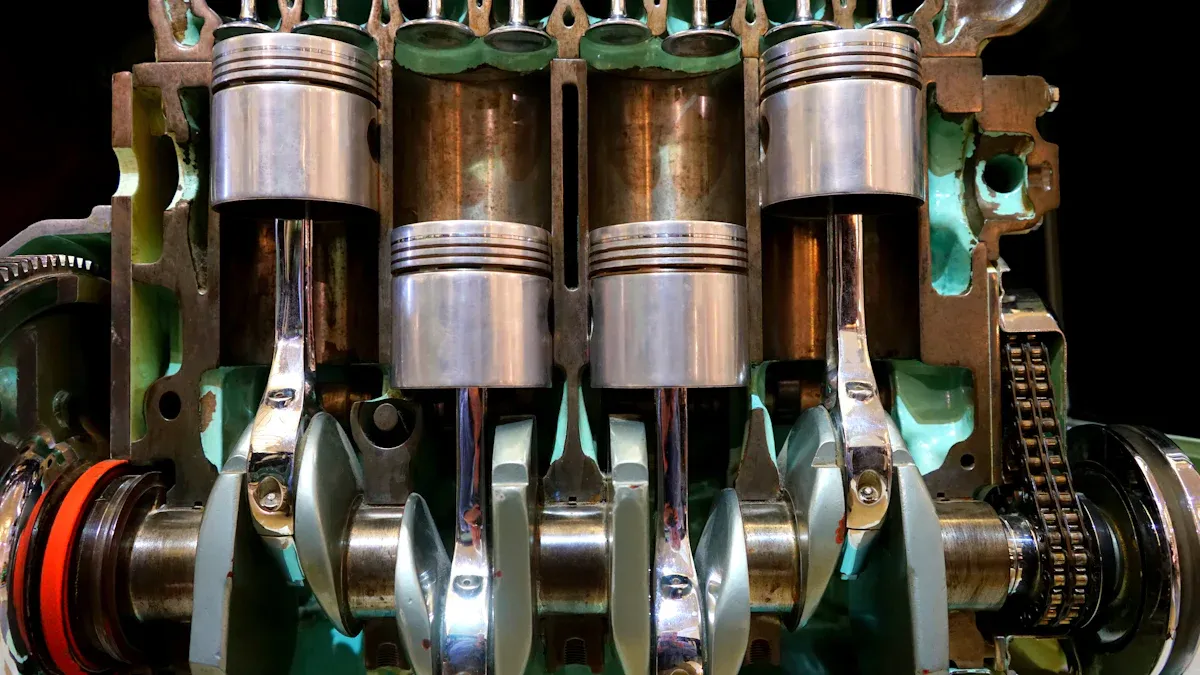

Understanding Piston Rods and Their Role in Shock Absorbers
What is a piston rod?
The piston rod is a critical part of the suspension system in vehicles. It connects the piston components inside the shock absorber to the external structure, allowing the shock absorber to perform its function effectively. The design of the piston rod structure ensures durability and smooth operation under varying road conditions. Its primary role is to transfer the motion and force generated by the piston to the rest of the suspension system. This makes the piston rod a vital component in maintaining vehicle stability and ride comfort.
How do shock absorbers work with piston rods?
To understand how shock absorbers work, you need to know their basic mechanism. Shock absorbers reduce vibrations and impacts caused by uneven roads. When your vehicle hits a bump, the suspension compresses, and the piston rod moves within the shock absorber. This movement pushes hydraulic fluid or gas through small valves, creating resistance that slows down the motion. The piston rod plays a key role in this process by ensuring precise movement and alignment of the piston components. Without it, the shock absorber cannot function properly. Different types of shock absorbers, such as hydraulic and gas-filled models, rely on the piston rod for optimal performance.
Importance of piston rods in vehicle performance
The function of the piston rod directly impacts the performance of your vehicle. A well-designed piston rod ensures smooth suspension operation, reducing wear and tear on other components. It also improves handling and stability, especially during sharp turns or sudden stops. Symptoms of bad shock absorbers, such as excessive bouncing or poor braking, often indicate issues with the piston rod. Regular inspection and repair of the piston rod can extend the lifespan of your shock absorbers. Knowing how long shock absorbers last depends on proper maintenance and installation of high-quality piston rods. By prioritizing the basic requirements for the piston rod, you can enhance your vehicle’s overall performance and safety.
Materials Used by a Piston Rod Manufacturer
High-strength steel and its properties
High-strength steel is the backbone of piston rod manufacturing. Its exceptional mechanical properties make it the preferred choice for creating durable and efficient piston rods. Compared to standard materials like C45E, high-strength steel offers superior yield strength and fatigue resistance. These qualities ensure that the piston rod can withstand the immense forces it encounters during operation.
To illustrate, consider the following comparison:
| Property | C45E (Common Material) | High-Strength Steel (e.g., Cromax) |
|---|---|---|
| Yield Strength | Standard Value | Higher Value |
| Fatigue Strength | Lower Limit | Increased Limit |
| Cost Reduction Potential | Baseline | 20-30% Reduction |
| Diameter Impact | Higher Cost | Lower Cost with Reduced Diameter |
| Slag Inclusions Impact | Common Issue | Less Likely |
This table highlights the advantages of high-strength steel, such as reduced costs and improved performance. By using this material, a piston rod manufacturer ensures that the rods are not only strong but also cost-effective. These properties contribute to the reliable connection between the piston and the shock absorber, enhancing the overall performance of the suspension system.
Factors influencing material selection
Choosing the right material for piston rods involves careful consideration of several factors. The material must handle high inertia forces and stresses while maintaining durability. For example, materials like 42CrMo4, Aluminum 2618, and Ti6Al4V each impact the performance of the piston rod differently:
| Material | Impact on Inertia Forces and Stresses |
|---|---|
| 42CrMo4 | Influences total inertia force and resulting stresses |
| Aluminum 2618 | Affects inertia forces and stress distribution |
| Ti6Al4V | Impacts performance under varying rotational speeds |
In addition to these impacts, the material must exhibit specific characteristics to ensure long-term performance. These include:
- Sufficient mechanical strength
- Wear resistance
- Small thermal expansion coefficient
- Good thermal conductivity
For instance, aluminum alloys like AA2014 are often preferred for their superior stiffness and reduced weight. These properties make them ideal for connecting rods, which require both strength and lightweight construction. By selecting materials with these characteristics, a top manufacturer of piston rod components can enhance the durability and efficiency of their products.
Ensuring material quality for durability
Material quality plays a crucial role in the durability of piston rods. A piston rod manufacturer must implement strict quality control measures to ensure that the materials meet industry standards. This includes preparing steel bars, applying high-quality chrome plating, and conducting hardening processes. Consistency in these steps enhances corrosion resistance and extends the lifespan of the piston rod.
Advanced tools like the Piston Rod Predictor allow manufacturers to compare different steel grades for their resistance to buckling. This is vital because buckling can lead to serious failures in hydraulic cylinders. By selecting high-strength materials and adhering to rigorous quality standards, manufacturers can produce piston rods that perform reliably under extreme conditions.
In addition, periodic reviews and updates of material specifications ensure that the rods remain competitive in terms of performance and cost. This commitment to quality and innovation solidifies the reputation of a reliable piston rod manufacturer in the global market.
Forging and Machining in Piston Rod Production
Forging process and its significance
Forging is one of the most critical steps in piston rod production. This process involves shaping metal under high pressure to achieve the desired form and properties. By applying controlled deformation, forging enhances the mechanical strength and durability of piston rods. Unlike casting or machining, forging aligns the grain structure of the material with the geometry of the component. This alignment significantly improves the rod’s toughness and fatigue resistance, making it ideal for use in shock absorbers.
To better understand the benefits of forging, consider the following table:
| Aspect | Evidence |
|---|---|
| Toughness | Controlled deformation and grain flow during forging lead to exceptional toughness. |
| Fatigue Resistance | Forging provides enhanced fatigue resistance compared to casting or machining. |
| Impact Strength | The process results in improved impact strength, crucial for piston rod applications. |
| Grain Structure | Retaining grain structure and alignment during forging enhances overall strength. |
| Metallurgical Soundness | Controlled deformation leads to metallurgical soundness and exceptional mechanical properties. |
| Optimal Grain Flow | Pre-working the metal establishes optimal grain flow, enhancing strength and ductility. |
| Directional Properties | Forging aligns grain flow with the component’s geometry, increasing strength and toughness. |
These properties ensure that the piston rod can withstand the immense forces it encounters during operation. For shock absorbers, this durability is essential to maintain performance under varying road conditions.
Precision machining for dimensional accuracy
After forging, precision machining refines the piston rod to meet exact specifications. This step ensures that the rod achieves high machining accuracy, which is crucial for smooth operation within the shock absorber. Precision machining involves processes like CNC milling, turning, and engraving, each designed to achieve tight tolerances. These tolerances reduce wear and tear, minimize mechanical failure, and ensure the piston rod fits perfectly within the shock absorber system.

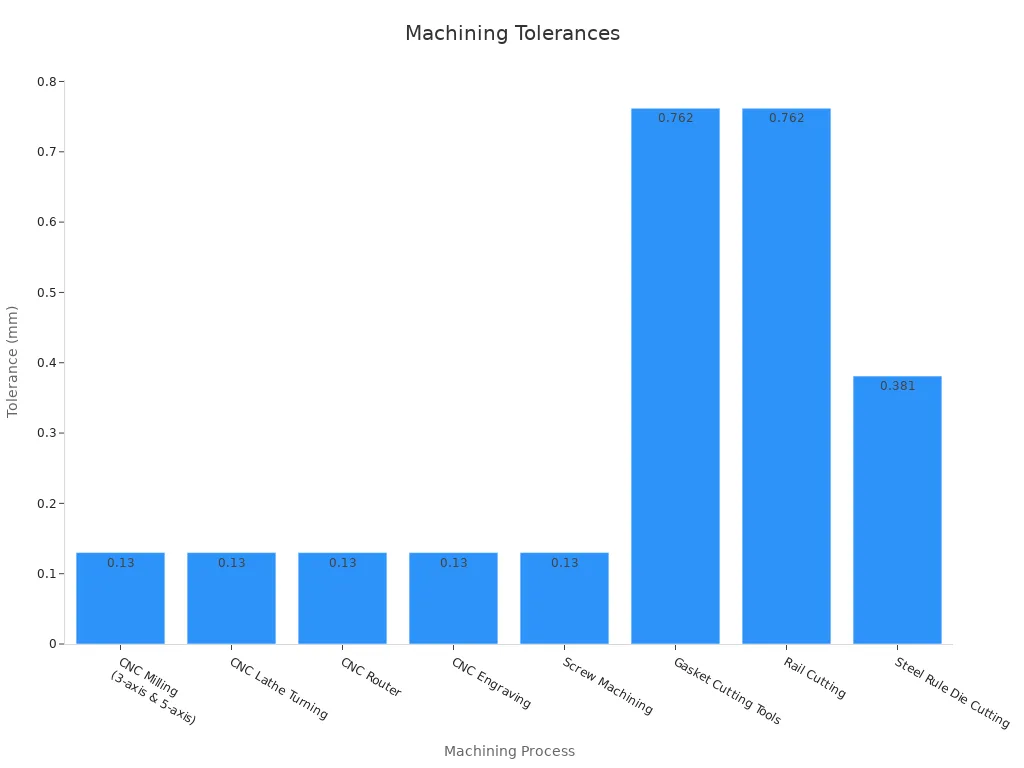

Here’s a breakdown of typical tolerances achieved through various CNC machining processes:
| CNC Machining Process | Typical Tolerance |
|---|---|
| CNC Milling (3-axis & 5-axis) | ± 0.005″ (0.13 mm) |
| CNC Lathe Turning | ± 0.005″ (0.13 mm) |
| CNC Router | ± 0.005″ (0.13 mm) |
| CNC Engraving | ± 0.005″ (0.13 mm) |
| Screw Machining | ± 0.005″ (0.13 mm) |
| Gasket Cutting Tools | ± 0.030″ (0.762 mm) |
| Rail Cutting | ± 0.030″ (0.762 mm) |
| Steel Rule Die Cutting | ± 0.015″ (0.381 mm) |
Precision machining also ensures critical geometric properties like straightness, flatness, and circularity. For example:
- Straightness ensures the rod is perfectly aligned, preventing operational issues.
- Flatness guarantees even surfaces, reducing friction.
- Circularity ensures the rod fits seamlessly within the shock absorber.
These precise dimensions are vital for maintaining the efficiency and reliability of shock absorbers.
Challenges in achieving manufacturing precision
Achieving high machining accuracy in piston rod production comes with its own set of challenges. These challenges often stem from external factors like labor shortages, energy costs, and material availability. For instance:
- Labor shortages in precision machining have created a 14% vacancy rate for CNC operators in Germany, delaying production timelines.
- Energy price volatility, with a 300% increase in natural gas costs, has disrupted critical thermal treatment processes.
- Component interdependencies have extended lead times from 12 to 26 weeks due to shortages of rare earth metals.
These issues highlight the complexity of maintaining precision in piston rod manufacturing. Despite these challenges, advanced technologies and strict quality control measures help manufacturers overcome obstacles and deliver high-quality components. By addressing these challenges, manufacturers ensure that piston rods meet the demanding requirements of shock absorbers, enhancing vehicle performance and safety.
Surface Treatment and Coating for Piston Rods
Corrosion resistance and wear protection
Surface treatments play a vital role in enhancing the durability of piston rods. These treatments protect the rods from corrosion and wear, ensuring they perform reliably under harsh conditions. Corrosion can weaken the rod, while wear can lead to seal damage and leakage. By applying specialized coatings, you can reduce friction and extend the lifespan of the piston rod. For example:
- Thermal-spray hard coatings improve friction behavior, maintaining low surface friction even after prolonged use.
- Ceramic coatings, while durable, may cause significant wear and leakage during endurance tests.
- Nitrided rods show better performance, with minimal leakage observed in testing.
Each coating has unique advantages and disadvantages. Selecting the right treatment depends on the specific application and operating environment. This ensures the piston rod remains functional and contributes to the efficiency of the shock absorber.
Chrome plating and other coating methods
Chrome plating is one of the most common methods used for piston rods. It provides excellent wear resistance and protects against corrosion. However, alternative techniques like High-Velocity Oxygen Fuel (HVOF) coatings are gaining popularity. Research shows that HVOF coatings can offer comparable or superior surface properties compared to traditional hard chrome plating. These coatings improve mechanical and tribological properties, making them a viable option for piston rods.
For environmentally conscious applications, HVOF CrC75 (NiCr20) coatings stand out. They deliver enhanced performance while reducing environmental impact. Although no single method is ideal for all shock absorber types, combining chrome plating with advanced techniques can optimize the rod’s durability and efficiency.
Ensuring uniformity and adhesion
Uniformity and adhesion are critical for the effectiveness of surface treatments. Uneven coatings can lead to weak spots, increasing the risk of corrosion and wear. Proper adhesion ensures the coating remains intact during operation, even under extreme stress. Manufacturers use advanced techniques to achieve consistent coating thickness and strong adhesion.
For example, chrome plating requires precise control to ensure uniform coverage. HVOF coatings demand specialized equipment to maintain adhesion and consistency. By prioritizing these factors, you can enhance the piston rod’s performance and reliability. This attention to detail ensures the rod withstands the challenges of shock and vibration, contributing to the overall efficiency of the shock absorber.
Quality Control in Piston Rod Manufacturing
Inspection techniques for accuracy and finish
Quality control begins with thorough inspections to ensure piston rods meet precise specifications. You can use advanced tools like calipers, micrometers, and coordinate measuring machines (CMMs) to check dimensions. These tools measure straightness, diameter, and surface finish with high accuracy. For example, a CMM can detect deviations as small as 0.001 inches, ensuring the rod fits perfectly within shock absorbers.
Surface finish inspections focus on identifying scratches, pits, or uneven coatings. Techniques like optical microscopy and roughness testers help you evaluate the rod’s texture. A roughness tester measures surface irregularities, ensuring the rod maintains low friction during operation. These inspections guarantee that every piston rod performs reliably and contributes to the efficiency of shock absorbers.
Performance testing under real-world conditions
Testing piston rods under real-world conditions ensures they can handle the stresses of daily use. You can simulate road impacts, vibrations, and temperature changes to evaluate the rod’s durability. For instance, endurance tests subject rods to repeated shocks, mimicking the forces experienced by shock absorbers on uneven terrain.
Hydraulic testing measures the rod’s ability to withstand pressure without bending or breaking. Salt spray tests assess corrosion resistance, exposing rods to harsh environments for extended periods. These tests confirm that the piston rod can endure extreme conditions while maintaining its functionality. By conducting these evaluations, you ensure the rod enhances the performance of shock absorbers and contributes to vehicle safety.
Certifications and standards for piston rods
Certifications and standards validate the quality of piston rods. You should look for compliance with industry benchmarks like ISO 9001 and TS16949. These certifications ensure that manufacturing processes meet strict quality requirements. For example, TS16949 focuses on automotive production standards, guaranteeing that piston rods perform reliably in shock absorber types.
Manufacturers often provide reports like PPAP (Production Part Approval Process) to demonstrate adherence to specifications. These documents include data on material properties, dimensional accuracy, and performance tests. By choosing certified piston rods, you can trust their compatibility with shock absorbers and their ability to withstand shocks during operation.
Advanced Technologies in Piston Rod Manufacturing
Automation and robotics in production
Automation and robotics have revolutionized piston rod manufacturing. These technologies streamline production by reducing manual intervention and increasing efficiency. Robots handle repetitive tasks like forging and machining with unmatched precision. This ensures consistent quality across all piston rods. Automated systems also monitor production lines, identifying defects early to minimize waste.
You benefit from faster production cycles and reduced costs. For example, robotic arms can perform tasks like CNC machining with high accuracy, eliminating errors caused by human fatigue. Automation also enhances worker safety by reducing exposure to hazardous environments. By integrating robotics into piston rod manufacturing, you achieve higher productivity and maintain strict quality standards.
Emerging technologies for efficiency and precision
Emerging technologies continue to improve the efficiency and precision of piston rod production. Advanced CNC machines now offer tighter tolerances, ensuring piston rods meet exact specifications. Laser-guided systems enhance machining accuracy, reducing material waste. Additive manufacturing, or 3D printing, enables rapid prototyping, allowing you to test designs before full-scale production.
These innovations lead to measurable improvements in manufacturing metrics:
| Metric | Improvement |
|---|---|
| Cost Savings | Up to 15% |
| Overall Piston Rod Strengths | Increases of 20% |
| Machining Time Reduction | Up to 15% |
By adopting these technologies, you reduce costs while improving the durability and performance of piston rods. This ensures shock absorbers function reliably under various conditions, enhancing vehicle stability and comfort.
Benefits of innovation in the manufacturing process
Technological innovations bring significant benefits to piston rod manufacturing. Lightweight materials like aluminum alloys improve product longevity while reducing vehicle weight. Advanced CNC machining techniques ensure precision, meeting stringent industry standards. These improvements contribute to enhanced vehicle safety, as high-strength piston rods withstand extreme forces during operation.
| Benefit | Description |
|---|---|
| Improved Material Performance | Innovations lead to the use of lightweight and durable materials, enhancing product longevity. |
| Advanced Manufacturing Techniques | Techniques like CNC machining improve precision and meet stringent industry standards. |
| Enhanced Vehicle Safety | High-strength piston rods contribute to overall vehicle safety and reliability. |
By embracing innovation, you stay ahead in the competitive market. These advancements not only improve piston rod quality but also optimize the performance of shock absorbers. This ensures your vehicle remains safe and comfortable, even on challenging roads.
Environmental and Safety Considerations
Reducing waste and emissions
Reducing waste and emissions is essential in piston rod manufacturing. You can achieve this by adopting sustainable practices and using advanced technologies. For example, recycling scrap metal during forging minimizes material waste. This process ensures that leftover steel and other materials are reused instead of discarded. Additionally, modern machining techniques reduce energy consumption by optimizing production cycles.
Emission control is another critical aspect. Manufacturing facilities often use energy-efficient equipment to lower carbon dioxide emissions. For instance, CNC machines with energy-saving modes consume less electricity, contributing to a cleaner environment. By implementing these measures, you help reduce the environmental impact of producing components for shock absorbers.
Ensuring worker safety in manufacturing
Worker safety is a top priority in piston rod production. You can improve safety by automating processes and introducing ergonomic measures. Automation reduces manual handling risks by using rod lock cylinders to clamp and center components. This minimizes the chance of injuries caused by repetitive tasks.
Mechanical rod locks enhance load stability, preventing accidents during production. These locks maintain the position of heavy loads without relying on air pressure. Ergonomic safety measures, such as balancing heavy loads, further reduce the risk of injuries from falling objects. The table below highlights these improvements:
| Improvement Aspect | Description |
|---|---|
| Automation of Processes | Use of rod lock cylinders automates clamping and centering, reducing manual handling risks. |
| Enhanced Load Stability | Mechanical rod locks maintain load position without air pressure, preventing potential accidents. |
| Ergonomic Safety Measures | Rod locks assist in balancing heavy loads, reducing the risk of injury from falling objects. |
By prioritizing worker safety, you create a secure environment that enhances productivity and reduces downtime.
Compliance with environmental regulations
Compliance with environmental regulations ensures sustainable manufacturing practices. You must adhere to standards like ISO 14001, which focuses on environmental management systems. These standards help you monitor and reduce the environmental impact of production processes.
For example, using eco-friendly coatings on piston rods aligns with regulatory requirements. Chrome plating alternatives, such as HVOF coatings, reduce hazardous waste while maintaining durability. Additionally, regular audits ensure that manufacturing facilities meet emission limits and waste disposal guidelines.
By following these regulations, you contribute to a cleaner environment while maintaining high-quality production standards. This commitment not only benefits the planet but also strengthens your reputation as a responsible manufacturer of shock absorber components.
Piston rod manufacturing involves a series of precise steps that ensure durability and performance. Processes like forging, machining, and surface treatments enhance the rod’s strength and resistance to wear. Quality control measures, including dimensional inspections and stress testing, verify that each rod meets strict standards. Advanced technologies, such as automation and AI, optimize production efficiency and reduce errors.
By prioritizing innovation and quality, you can achieve superior piston rods that improve the functionality of shock absorbers. These rods play a vital role in absorbing road impacts, maintaining vehicle stability, and ensuring a smooth ride. Their reliability directly contributes to the safety and comfort of your driving experience.
