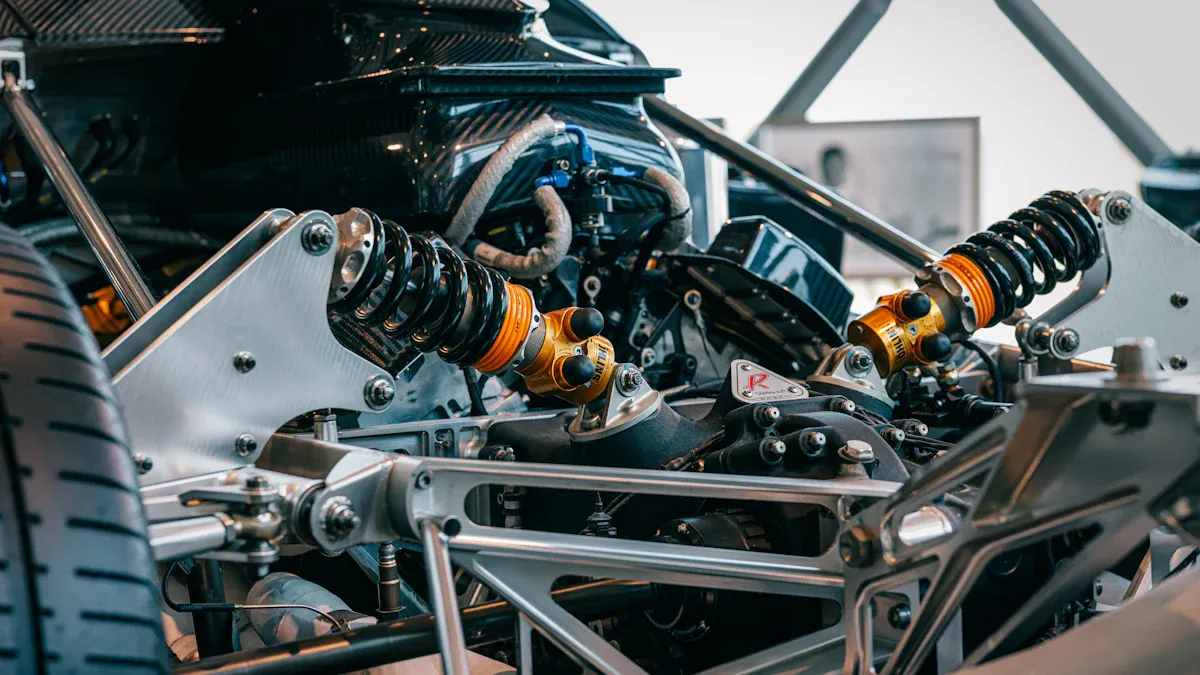

Mastering Your Ride with the Right Suspension Shims

You can use suspension shims to master your vehicle’s performance. These are thin, precisely made plates used for fine-tuning your suspension system. A shim can alter the fluid flow inside a shock absorber or change the angles of various components. The global market for automotive suspension systems shows steady growth, highlighting the industry’s importance.

Using the correct custom precision shims is a smart, cost-effective method for achieving better handling. This approach helps correct alignment issues, which are responsible for 50% of irregular tire wear. Max’s engineers specialize in these custom precision shims, and their expertise with each one helps you gain superior control. These components are vital for your suspension, as every shim plays a key role in improving your ride. The right shim makes a significant difference and is essential for completing your suspension setup.

The Core Functions of Suspension Shims

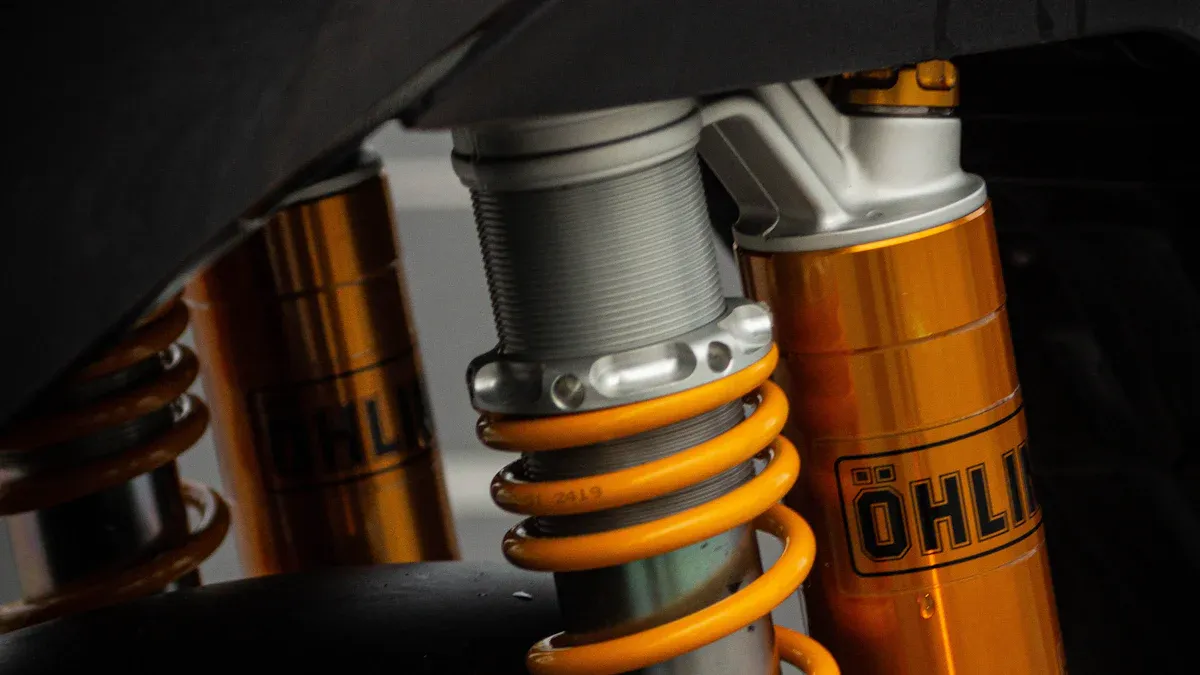

Suspension shims are small but mighty components with two primary jobs. You can use a shim to control your suspension’s damping behavior or to correct its alignment angles. Understanding both functions helps you unlock your vehicle’s full potential. Max’s engineers provide the highest quality custom precision shims for every application, ensuring your suspension performs exactly as you intend. Each precision shim is a key part of your suspension tuning.

Shims for Damping Control

You use a shim inside a shock absorber to control how fluid moves through it. This process is governed by fluid dynamics. A shim stack changes the flow area for the oil, which directly impacts the pressure needed to move it. This change in pressure creates the damping force you feel.

Different shim stack designs allow you to fine-tune this force. You can use various custom precision shims to achieve specific results for your suspension.

• Simple Tapered Stacks: These custom precision shims create a damping force that softens at very high speeds.
• Crossover Stacks: This setup uses a specific shim to separate the stack, allowing you to soften low-speed damping for a more comfortable ride over small bumps.
• Preloaded Stacks: Using a ring shim, you can preload the stack. This increases low-speed damping for better control, making it a popular choice for performance suspension tuning.

The thickness and diameter of each precision shim are critical. These dimensions determine the stiffness of the stack and how much the suspension resists movement, giving you control over the entire damping curve. Every precision shim contributes to the final feel of the suspension.

Shims for Alignment Correction

You can also use a shim to adjust the physical alignment of suspension components. These adjustable shims are placed between parts like the axle and the leaf spring to change critical angles. Correcting these angles is essential for tire wear, vehicle stability, and overall handling. A single precision shim can solve major issues.

For example, you might use a precision shim to fix your vehicle’s camber, caster, or pinion angle. These custom precision shims come in various materials and degrees.

When selecting a precision shim, material matters. Max provides custom precision shims made from superior materials for lasting performance.

Pro Tip: For alignment shims, material quality often follows this hierarchy:

• Good: Aluminum Alloy
• Better: Zinc Alloy
• Best: Steel Alloy

Using the right precision shim ensures your suspension geometry is perfect. This precision shim is vital for a safe and smooth ride. A quality precision shim makes all the difference in your suspension.

Exploring Types of Custom Precision Shims

You can find many types of custom precision shims for your vehicle. Each shim serves a specific purpose in your suspension. Understanding the two main categories helps you make the right choice. You have damper shims for tuning ride feel and alignment shims for correcting geometry. Max’s engineers produce a wide range of these types of custom precision shims, ensuring you get the perfect part for any job.

Damper and Shock Absorber Shims

You place these custom precision shims inside your shock absorber. They control fluid flow to manage damping forces. The material of each precision shim is crucial for durability and performance. High-performance applications demand materials with excellent fatigue resistance.

Manufacturing methods also affect a precision shim. Laser cutting offers high precision and smooth edges, while stamping is cost-effective for large production runs. A bleed shim is a special type of precision shim. It creates a small, controlled leak path to soften low-speed suspension movement. This differs from a standard valve shim, which deflects under pressure to control the main damping curve. Every precision shim in the stack works together to define your suspension behavior. Max provides the highest quality custom precision shims for your needs.

Alignment and Axle Shims

You use alignment and axle shims to adjust the angles of your suspension components. These custom precision shims are placed between parts like axles and control arms. Using the correct shim ensures proper tire wear and vehicle stability. These suspension shims come in various shapes for different jobs. A single precision shim can make a huge difference.

Note: Slotted and U-shaped custom precision shims are popular because you can install them without completely disassembling the suspension components. This makes adjustments faster.

The right shim shape depends on your specific task. Each precision shim is designed for a particular use case.

Choosing the right precision shim is essential. A quality shim ensures your alignment is accurate and stable. Max offers durable custom precision shims to perfect your vehicle’s geometry. Each precision shim and custom precision shim plays a role. This shim is key to your suspension. This shim is a vital component. This shim helps you. This shim is important. This precision shim is what you need.

How to Select the Right Custom Precision Shims

You must choose the correct custom precision shims to achieve your desired suspension performance. Selecting the right shim involves more than just grabbing one off the shelf. You need to understand the specific dimensions and specifications that define how each precision shim functions. This knowledge empowers you to make informed decisions for your vehicle’s suspension. Max’s engineers create every precision shim to exact standards, ensuring you get predictable results.

Decoding Damper Shim Dimensions

You will find that damper shims have three critical dimensions: inside diameter (ID), outside diameter (OD), and thickness. Each measurement plays a distinct role. The ID must match your shock’s piston perfectly to ensure a proper fit. The OD affects the stiffness of the shim stack. A larger OD on a precision shim creates a stiffer feel. Thickness is the most common variable you will adjust. A thicker shim is much stiffer and creates more damping force.

Measuring an existing shim requires specific tools for accuracy. You need this precision because each shim can make a big difference.

• Micrometer: Use this for measuring shim thickness. You need a tool with a resolution of at least .001 mm, as many custom precision shims come in .05 mm increments.
• Digital Caliper: This tool is best for measuring the inside and outside diameters of a precision shim. A resolution of .01 mm is necessary for accurate readings.

For the best results, you should invest in quality tools. Brands like Mitutoyo, Fowler, and Starrett are known for their durability and accuracy, giving you confidence in every measurement you take for your custom precision shims. Each precision shim must be measured correctly.

Understanding Alignment Shim Specifications

You will find that alignment custom precision shims have different specifications. The most important spec is the degree of angle correction. This number tells you how much the shim will change an angle like camber or pinion. You also need to consider the width and material. The width of the shim must match the component you are adjusting, such as the leaf spring. These adjustable shims come in many sizes.

The degree of the precision shim directly relates to the change you want to make. A small change in the shim angle results in a precise adjustment to your suspension geometry. This precision shim is key. A single shim can fix a major issue. Choosing the right custom precision shims ensures your vehicle drives straight and your tires wear evenly. This shim is vital for your suspension. Max provides the custom precision shims you need for any alignment task. This shim helps you. This precision shim is what you need. This shim is important.

Practical Guide to Using Shim Suspension Kits

You can use shim suspension kits to transform your vehicle’s handling and ride quality. These kits provide the precision shims needed for detailed adjustments. This guide shows you how to use shim suspension kits for three common tasks. You can tune your shocks, correct alignment, and eliminate driveline vibrations. Each task requires a different approach and a specific type of shim.

Tuning Shocks for Better Performance

You can achieve significant performance upgrades by tuning your shock absorbers. This process involves changing the internal shim stack to alter damping forces. Using shim suspension kits gives you the precision shims necessary for this job. For example, off-road racers often use stacked spring setups and specific shim stacks to maintain stability on rough terrain. They tune for low, medium, and high-speed damping to handle different impacts. Asphalt racers might use a different shim setup to optimize grip on smooth surfaces.

To change the shim stack, you must first disassemble the shock. Here is a step-by-step guide for a typical monotube shock:

1. Secure the shock in a vise with the body facing up.
2. Release the nitrogen gas by removing the Hyperscrew.
3. Flip the shock in the vise so the body faces down.
4. Remove the snap ring near the shaft to free the gland retaining ring.
5. Carefully remove the Hyperscrew in the gland. Be ready for some oil spray.
6. Push the gland into the shock body about half an inch and remove the gland snap ring.
7. Pull the piston rod assembly out of the shock body.
8. Now you can access the shim stack to make changes. You can replace the valving with new precision shims from your shim suspension kits.

Safety First! ⚠️ Always release all gas pressure from a shock absorber before disassembly. A pressurized shock can be extremely dangerous.

Each precision shim you add or remove changes how the suspension reacts. Thicker precision shims create more damping, while thinner ones soften the ride. Using shim suspension kits allows you to experiment with different combinations. This is one of the most effective performance upgrades for your suspension. A single shim can make a noticeable difference in your vehicle’s handling.

Correcting Camber and Caster Angles

You can use shim suspension kits to correct your vehicle’s wheel alignment. Poor alignment is a common problem caused by hitting potholes or overloading your vehicle. It leads to poor handling and premature tire wear. A precision shim can fix these issues. The most obvious sign of bad alignment is uneven tire wear.

• Wear on the outside edge of your tire often means you have too much positive camber.
• Wear on the inside edge of your tire suggests too much negative camber.

These wear patterns happen because the tire scrubs against the road instead of rolling smoothly. You can use adjustable shims to fix this.

To correct these issues, you place a shim between suspension components. For example, you can insert a precision shim between the control arm and the frame. This changes the angle of the wheel. The degree of the shim determines the amount of correction. Using shim suspension kits gives you a range of precision shims to choose from. This helps you dial in the perfect alignment for your suspension. A small shim can restore your vehicle’s stability and save you money on tires. Every precision shim in your shim suspension kits is a tool for better driving.

Adjusting Pinion Angle to Stop Vibration

You might feel a vibration through the floor of your car, especially during acceleration. This is often caused by an incorrect pinion angle. The pinion angle is the relationship between your driveshaft and your rear axle. Using shim suspension kits, you can place a precision shim between the axle and the leaf spring to correct this angle. This is a critical adjustment for any rear-wheel-drive vehicle.

To find the right shim, you first need to measure your current angles. You can use a digital angle finder or a smartphone app.

1. Place your vehicle on a level surface with its full weight on the suspension.
2. Measure the angle of your transmission or engine.
3. Measure the angle of your driveshaft.
4. Measure the pinion angle at the rear axle.

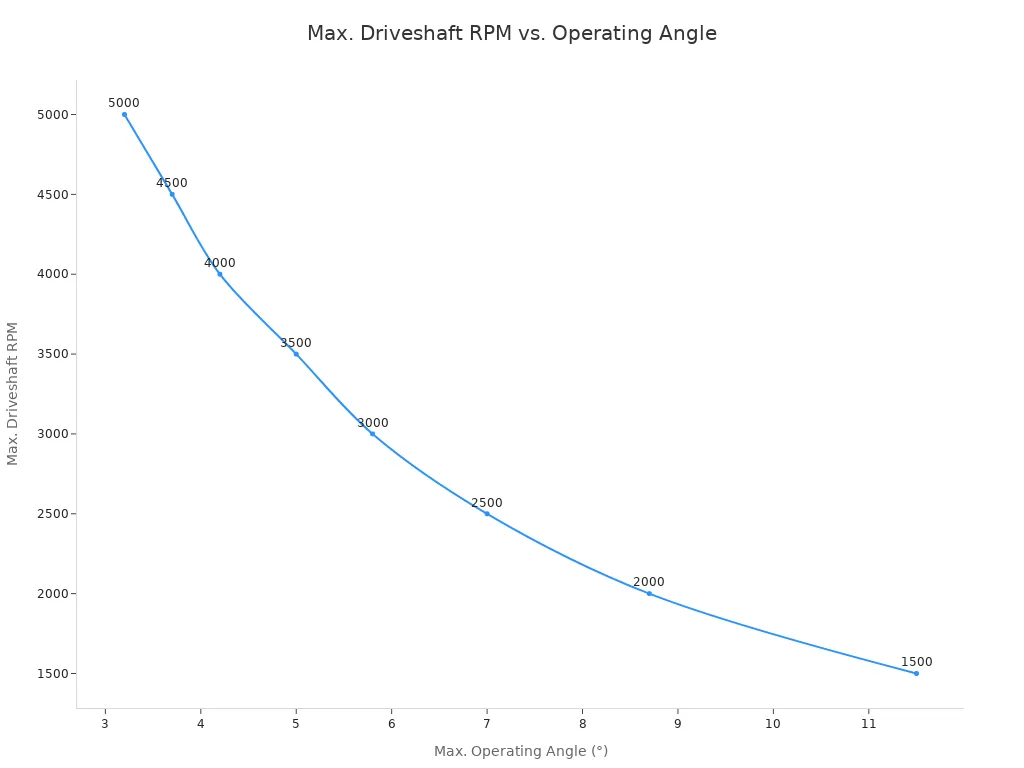

Ideal Angles: For a smooth ride, the transmission output angle and the pinion angle should be equal but opposite. For example, if your transmission points down 3 degrees, your pinion should point up 3 degrees. The total operating angle should not exceed 4-5 degrees.

Once you know the needed correction, you can select the right shim from your shim suspension kits. A 2-degree shim, for instance, will change the pinion angle by 2 degrees. This small adjustment can completely eliminate driveline vibrations. The relationship between your driveshaft’s operating angle and its maximum speed is important. A steeper angle limits how fast the driveshaft can safely spin.

Using custom precision shims to set the correct pinion angle is vital for the health of your driveline. It prevents premature wear on U-joints and ensures a smooth transfer of power. The right precision shim from your shim suspension kits protects your suspension and drivetrain. Max provides high-quality custom precision shims and suspension shims to help you get the job done right. Each shim is a key part of a well-tuned suspension.

Max’s Pro Tips for Shim Installation

You can achieve professional results when you follow a few key principles for shim installation. Max’s engineers use these tips to guarantee success. These practices help you avoid common mistakes and get the most out of every custom precision shim. Proper installation ensures your suspension performs safely and predictably.

Start with Small, Incremental Changes

You should always begin with small adjustments. A big change to your shim stack can drastically alter your vehicle’s handling, sometimes for the worse. It is better to make one small change at a time. For example, you might swap a single shim for one that is slightly thicker or thinner. This approach lets you feel the exact effect of that specific shim.

Remember: The goal is to fine-tune, not overhaul. A single .05 mm shim can make a noticeable difference in ride quality. Test the vehicle after each adjustment to understand how that one change affected performance. This careful process helps you dial in the perfect feel.

Document Every Adjustment

You must keep a detailed record of every change you make. A logbook helps you track what works and what does not. It prevents you from getting lost in your adjustments. Your notes should include the date, the specific shim changes, and your driving impressions. This documentation is essential for refining your shim setup over time.

Modern tools can make this process much easier. You can use software applications to log data and get recommendations.

• The Quarq ShockWiz is a device that logs real-time suspension data as you ride.
• Its mobile app for iOS or Android lets you customize settings with high precision.
• You can even use the app to tailor your suspension for specific trails or terrain types.

Ensure All Components Are Clean

You must ensure every component is perfectly clean before reassembly. Dirt, grit, or old oil can damage a new shim or cause the shock to perform poorly. A contaminated system will not give you the accurate results you want from your new shim.

For DIY projects, you can use effective and accessible cleaning agents. King Shocks recommends a two-step process, but you can achieve great results with simple materials.

• First, scrub parts with a cleaner like Simple Green.
• Then, do a final clean with denatured alcohol to remove any residue.

Pay close attention to critical areas. You should thoroughly clean the internal shaft retainer, the piston, the internal floating piston, and the shock reservoir. A clean installation protects each shim and ensures your shock operates smoothly.

You now see that suspension shims are essential precision tools. They help you fine-tune your vehicle’s damping and alignment. A better suspension is within your reach.

You should always begin with a small shim change. Keep a detailed log of every adjustment to your suspension. Understanding your vehicle’s suspension needs is key before you install a new shim.

With the right knowledge and high-quality precision shims, you gain complete control. A single shim can perfect your suspension. These precision shims empower you to master your ride.

FAQ

Can I reuse suspension shims?

You should avoid reusing damper shims. They can bend or wear out, which compromises performance. For safety, you should always install new, high-quality parts. Max’s engineers produce durable custom precision shims you can trust for consistent results and a secure installation.

How do I know if I need alignment shims?

You can check your tires for uneven wear. Wear on the inside or outside edge often signals a camber problem. Your vehicle pulling to one side is another common symptom. A precision alignment shim can easily correct these issues for a smoother ride.

What is the difference between a shim and a spacer?

You use a shim for fine-tuning an angle or a gap with high precision. A spacer is typically thicker and creates a larger, fixed distance between parts. Shims provide micro-adjustments, while spacers are used for major clearance or lift applications.

Where can I get high-quality custom shims?

You need a specialized supplier for reliable parts. Max is a TS17022 certified manufacturer with an expert engineering team. We provide high-quality custom precision shims and offer full technical support, ensuring you get the perfect part for your suspension needs.
