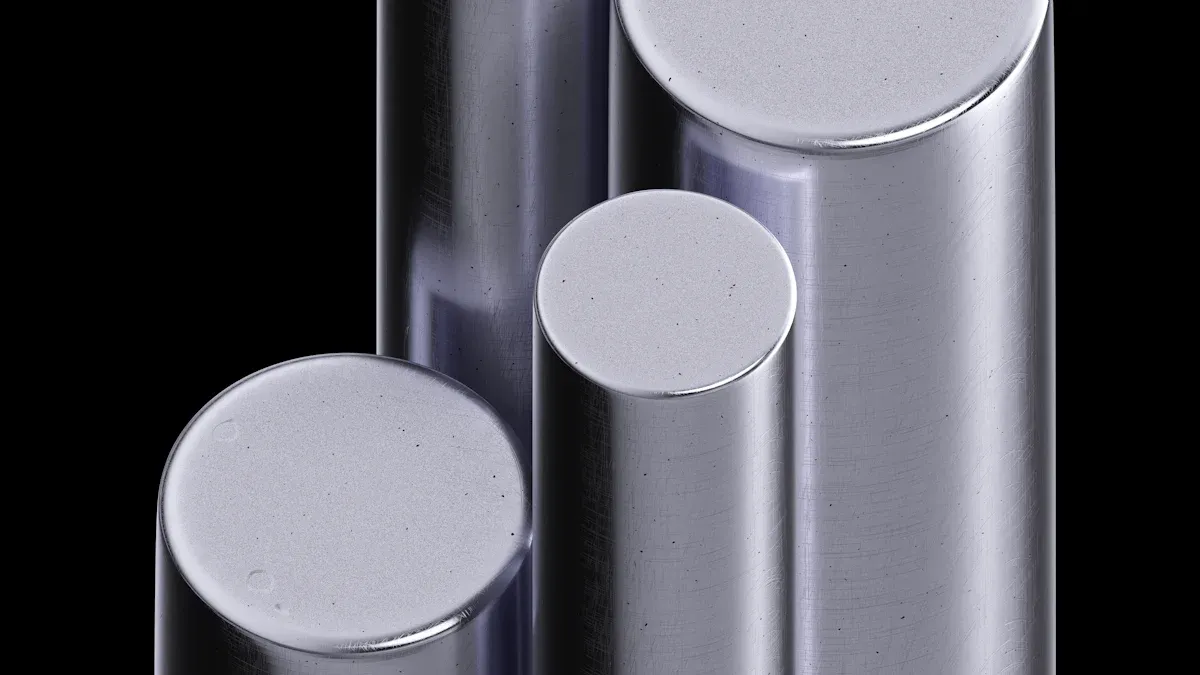

A hard chrome plated rod is a precision-engineered component designed to optimize the performance of hydraulic systems. At the heart of hydraulic cylinders, the hard chrome plated rod ensures smooth and dependable operation. Its surface is characterized by exceptional hardness and a microcrack structure that retains oil, enhancing lubrication and minimizing friction. This innovative design reduces wear and significantly improves durability, even in demanding environments. Additionally, hard chrome plated rods offer excellent resistance to corrosion and oxidation, making them perfect for applications exposed to moisture or extreme conditions. With their low friction properties, these rods contribute to maintaining lower operating temperatures, thereby increasing the efficiency and longevity of your hydraulic equipment.
What Is a Hard Chrome Plated Rod?
Definition and Composition
A hard chrome plated rod is a steel-based component coated with a layer of chromium through an electroplating process. This layer enhances the rod’s surface properties, making it ideal for hydraulic cylinder applications. The base material typically consists of high-strength steel grades such as CK45, ST52, 20MnV6, 42CrMo4, and 40Cr. Each grade offers unique mechanical and chemical properties tailored to specific industrial needs.
Chemical Composition of Common Steel Grades:
| Material | C% | Mn% | Si% | S% | P% | V% | Cr% |
|---|---|---|---|---|---|---|---|
| CK45 | 0.42-0.50 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | ≤0.25 | – |
| ST52 | ≤0.22 | ≤1.6 | ≤0.55 | ≤0.04 | ≤0.04 | 0.02-0.15 | – |
| 20MnV6 | 0.17-0.24 | 1.30-1.70 | 0.10-0.50 | ≤0.035 | ≤0.035 | 0.10-0.20 | ≤0.30 |
| 42CrMo4 | 0.38-0.45 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | 0.07-0.12 | 0.90-1.20 |
| 40Cr | 0.37-0.45 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | – | 0.80-1.10 |

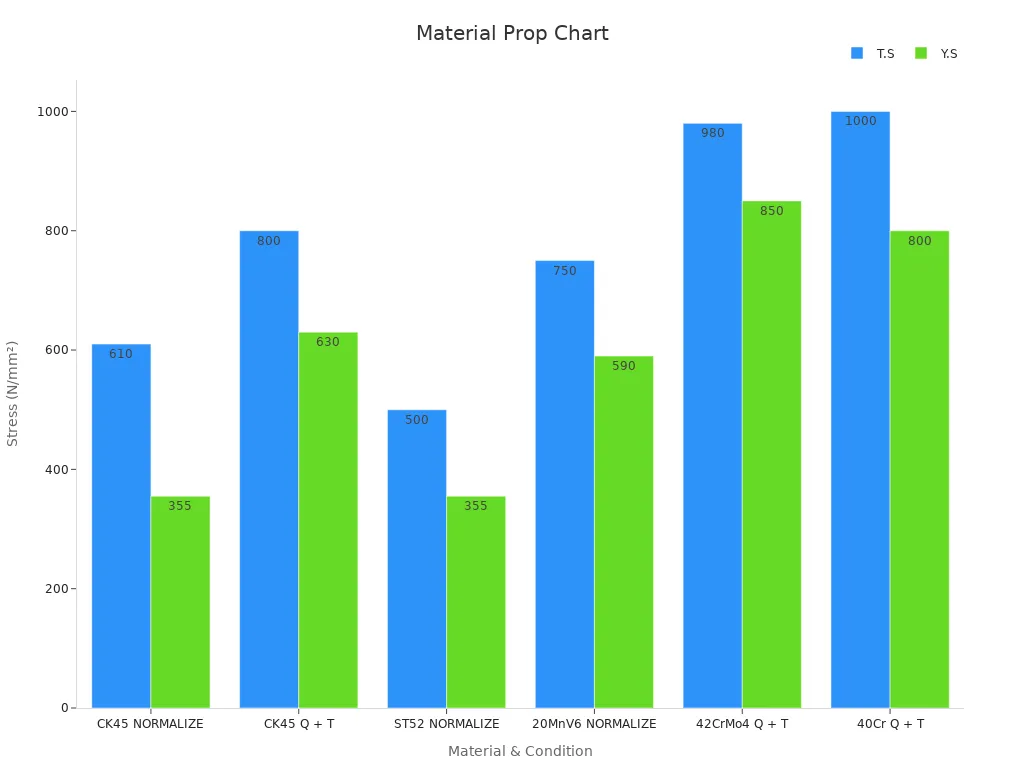

Mechanical Properties of Steel Grades:
| Material | T.S N/MM2 | Y.S N/MM2 | E%(MIN) | CHARPY | CONDITION |
|---|---|---|---|---|---|
| CK45 | 610 | 355 | 15 | >41J | NORMALIZE |
| CK45 | 800 | 630 | 20 | >41J | Q + T |
| ST52 | 500 | 355 | 22 | – | NORMALIZE |
| 20MnV6 | 750 | 590 | 12 | >40J | NORMALIZE |
| 42CrMo4 | 980 | 850 | 14 | >47J | Q + T |
| 40Cr | 1000 | 800 | 10 | – | Q + T |
The chromium layer applied during hard chrome plating ranges from 6mm to 200mm in thickness, depending on the application. This layer provides exceptional hardness, typically conforming to ISO F7 and F8 standards, ensuring durability and wear resistance.
Key Features and Applications
Hard chrome plated rods are engineered to deliver superior performance in hydraulic systems. Their features make them indispensable in industries requiring precision, durability, and efficiency.
Key Features:
- Durability: The chromium layer enhances wear resistance, allowing the rod to withstand high pressure and heavy loads.
- Corrosion Resistance: The plating acts as a barrier against moisture, preventing rust and extending the rod’s lifespan.
- Smooth Operation: The polished surface reduces friction, ensuring efficient operation and minimizing seal wear.
- Dimensional Accuracy: These rods maintain consistent dimensions, ensuring reliable performance in hydraulic cylinders.
- Environmental Benefits: The plating process minimizes environmental impact while delivering high-quality results.
Applications Across Industries:
| Application Area | Description |
|---|---|
| Construction Machinery | Enhances durability and efficiency of excavators, loaders, and cranes. |
| Agricultural Equipment | Provides reliable performance in tractors, plows, and harvesters. |
| Industrial Machinery | Supports operation of presses, injection molding machines, and other equipment. |
| Marine Applications | Ensures corrosion resistance and longevity in marine hydraulic systems. |
| Mining Equipment | Withstands harsh conditions in mining machinery. |
| Oil and Gas Industry | Enhances performance of drilling and production equipment. |
| Aerospace | Ensures high performance and reliability in aerospace hydraulic systems. |
| Material Handling | Improves functionality of forklifts and conveyor systems. |
| Automotive Industry | Supports various manufacturing and maintenance processes. |
| Heavy Equipment | Provides robust performance in heavy-duty hydraulic applications. |
Hard chrome plated rods are essential for hydraulic cylinders used in these industries. Their ability to resist wear and corrosion ensures smooth operation and reduces maintenance costs.
The Role of Hard Chrome Plated Rods in Hydraulic Cylinders
Importance for Hydraulic Cylinder Rods
Hard chrome plated rods play a vital role in the functionality of hydraulic cylinders. These rods act as the backbone of the hydraulic cylinder rod system, transferring force and motion with precision. Their smooth, polished surface ensures minimal friction, which is essential for maintaining the efficiency of hydraulic operations.
The manufacturing process of these rods involves several critical steps to ensure their performance. For instance:
- Inspection identifies any defects that could compromise the rod’s functionality.
- Grinding and stripping remove old chrome layers, preparing the surface for a fresh coating.
- Cleaning and masking ensure the rod is free from contaminants, preventing plating defects.
- Plating applies a new chrome layer, enhancing the rod’s surface properties.
- Surface finishing achieves the required smoothness and thickness for optimal seal performance.
- Final inspection guarantees that the rod meets quality standards.
Each step contributes to the rod’s ability to handle high pressures and heavy loads without deforming or wearing out. This durability makes hard chrome plated rods indispensable in hydraulic cylinders used in industries like construction, agriculture, and aerospace.
Contribution to System Longevity and Performance
The use of hard chrome plated rods significantly extends the lifespan of hydraulic cylinders. These rods resist wear and corrosion, two primary factors that shorten the life of hydraulic systems. Studies show that hard chrome coatings improve wear resistance, ensuring the rods can withstand harsh conditions without degrading. This durability reduces the need for frequent replacements, saving you time and money.
In addition to longevity, these rods enhance the overall performance of hydraulic systems. They maintain operational accuracy by reducing friction and abrasion, which minimizes seal wear and prevents leaks. This precision ensures consistent performance, even under demanding conditions. For example:
- Hard chrome plating increases actuator life expectancy by up to ten times compared to conventional rods.
- It reduces rod banding, enhancing testing consistency and maintaining load train alignment.
- The coatings extend seal life, improving performance and reducing noise distortion.
Industries such as mining and oil and gas rely on hard chrome plated rods for their ability to perform in extreme environments. These rods provide excellent protection against friction, abrasion, and chemical degradation, ensuring the hydraulic cylinder operates smoothly and efficiently. By choosing high-quality hard chrome plated rods, you can maximize the lifespan and performance of your hydraulic equipment.
Benefits of Hard Chrome Plated Rods
Durability and Wear Resistance
Hard chrome plated rods offer enhanced durability, making them ideal for hydraulic cylinders. The chromium layer applied during the plating process creates a hard surface that resists wear and tear. This durability allows the rods to handle heavy loads and high pressures without deforming. You can rely on these rods to maintain their structural integrity even in demanding environments like construction sites or mining operations.
The wear resistance of these rods also reduces the risk of surface damage caused by repeated motion. This feature ensures consistent performance over time, minimizing the need for frequent replacements. By choosing hard chrome plated rods, you benefit from chroming hydraulic cylinders that last longer and perform better under stress.
Corrosion Resistance
Corrosion resistance is another key advantage of hard chrome plated rods. The chromium layer acts as a protective barrier against moisture, chemicals, and other corrosive elements. This feature is especially important for hydraulic cylinders used in marine applications or industries exposed to harsh weather conditions.
When you use rods with high corrosion resistance, you prevent rust and oxidation from compromising the hydraulic cylinder’s performance. This protection extends the lifespan of your equipment and reduces maintenance costs. The benefits of chroming include not only enhanced durability but also reliable operation in environments where corrosion is a constant threat.
Enhanced Efficiency and Reduced Maintenance
Hard chrome plated rods improve the efficiency of hydraulic cylinders by reducing friction during operation. The polished surface of the rods ensures smooth movement, which minimizes energy loss and enhances overall system performance. Reduced friction also prevents excessive wear on seals, helping you avoid leaks and other issues that can disrupt operations.
The efficiency gained from using these rods translates into lower operating temperatures and less strain on the hydraulic system. This improvement reduces the frequency of maintenance and extends the life of your equipment. By investing in hard chrome plated rods, you enjoy enhanced durability, reduced friction, and lower maintenance costs, making them a cost-effective choice for your hydraulic systems.
The Hard Chrome Plating Process
Preparation of the Base Material
The hard chrome plating process begins with preparing the base material. This step ensures the surface is clean, smooth, and ready for plating. You might wonder why this is so important. Any dirt, grease, or imperfections on the surface can weaken the bond between the chromium layer and the base metal. To avoid this, technicians use methods like grinding, polishing, and chemical cleaning. These techniques remove contaminants and create a uniform surface.
Once the surface is clean, masking is applied to areas that should not be plated. This step ensures precision and prevents unnecessary material waste. Proper preparation not only improves the adhesion of the chrome layer but also enhances the overall durability of the rod.
Electroplating and Chrome Application
Electroplating is the heart of the hard chrome plating process. During this stage, the rod is submerged in an electrolyte solution containing chromium ions. An electric current passes through the solution, causing chromium to deposit onto the rod’s surface. This process creates a thick, hard coating that provides exceptional wear resistance.
You may not realize it, but electroplating is a common technique used in many industries. Hard chrome plating, however, stands out because it forms a much thicker and more durable layer compared to decorative chrome plating. Special etching processes are often used to improve adhesion, ensuring the coating stays intact even under extreme conditions. For example, in mining equipment, hard chrome plated components often last significantly longer than unplated ones. While the process may take longer than alternatives like nickel plating, its effectiveness in producing durable hydraulic rods is unmatched.
Quality Control and Surface Finishing
Quality control is a critical part of the hard chrome plating process. After plating, the rods undergo rigorous testing to ensure they meet industry standards. Technicians measure key metrics such as surface roughness, plating thickness, and hardness. For instance, the chrome layer must have a minimum hardness of 800HV and a thickness between 10-30 microns. These specifications guarantee the rod’s durability and performance.
| Metric | Specification |
|---|---|
| Surface Roughness | Ra 0.2 micron (maximum) |
| Chrome Plating Thickness | 10-30 micron |
| Chrome Layer Hardness | 800HV (minimum) |
| Coating Hardness | Micro Vickers hardness HV0.3 ≥ 850 (ISO 6507) |
| Corrosion Resistance | Neutral salt spray test ≥ 72h no red rust (ASTM B117) |
The final step involves surface finishing, where the rod is polished to achieve a smooth and uniform appearance. This step not only enhances the rod’s aesthetic appeal but also reduces friction during operation. By maintaining strict quality control, you can trust that hard chrome plated rods will deliver reliable performance in demanding applications.
Hard chrome plated rods are essential for hydraulic systems. They enhance efficiency, durability, and cost-effectiveness by reducing wear, resisting corrosion, and minimizing maintenance needs. These rods ensure smooth operation and extend the lifespan of your equipment, even in challenging environments.
Choosing high-quality components like hard chrome plated rods guarantees optimal system performance. By investing in reliable materials, you protect your equipment and improve its functionality. Make informed decisions to maximize the value and longevity of your hydraulic systems.
FAQ
What makes hard chrome plated rods different from regular steel rods?
Hard chrome plated rods have a chromium layer that enhances durability, wear resistance, and corrosion protection. Regular steel rods lack this coating, making them less suitable for demanding hydraulic applications.
How do hard chrome plated rods improve hydraulic system efficiency?
The polished surface reduces friction, ensuring smooth operation. This minimizes energy loss, lowers operating temperatures, and extends the lifespan of seals and other components.
Are hard chrome plated rods suitable for extreme environments?
Yes, these rods resist corrosion, wear, and chemical damage. They perform reliably in harsh conditions like mining, marine, and oil and gas industries.
How can you ensure the quality of hard chrome plated rods?
Look for specifications like plating thickness, hardness, and corrosion resistance. High-quality rods meet standards such as ISO F7 and ASTM B117 for durability and performance.
Can hard chrome plated rods reduce maintenance costs?
Absolutely! Their wear and corrosion resistance minimize the need for frequent replacements and repairs, saving you time and money in the long run.
