Choosing the right material for a hydraulic cylinder piston rod is crucial to enhancing the performance and longevity of your hydraulic system. A high-quality hydraulic cylinder piston rod minimizes wear, reduces corrosion, and boosts overall efficiency. For instance, materials with excellent thermal stability ensure consistent operation under extreme temperatures, preventing fluid degradation and potential system damage. Additionally, the material selection impacts how hydraulic cylinders manage varying loads and withstand harsh conditions, protecting against seal leakage and contamination. By prioritizing the best material for your hydraulic cylinder piston rod, you can optimize system performance and significantly extend the lifespan of your equipment.

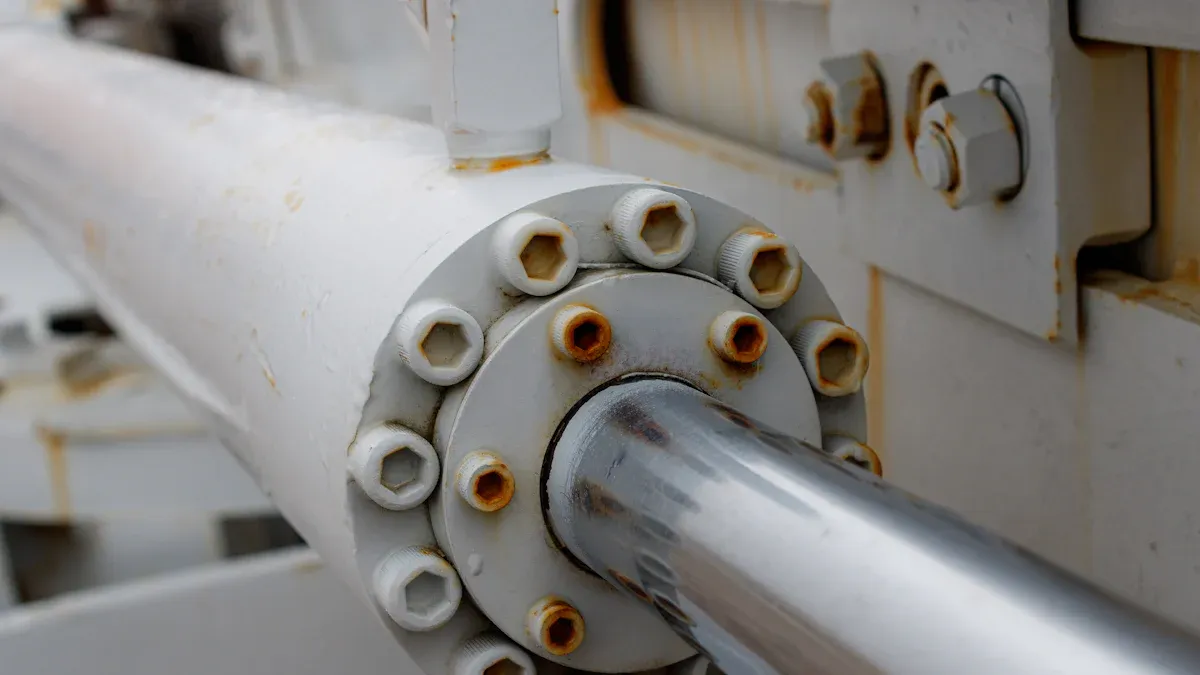

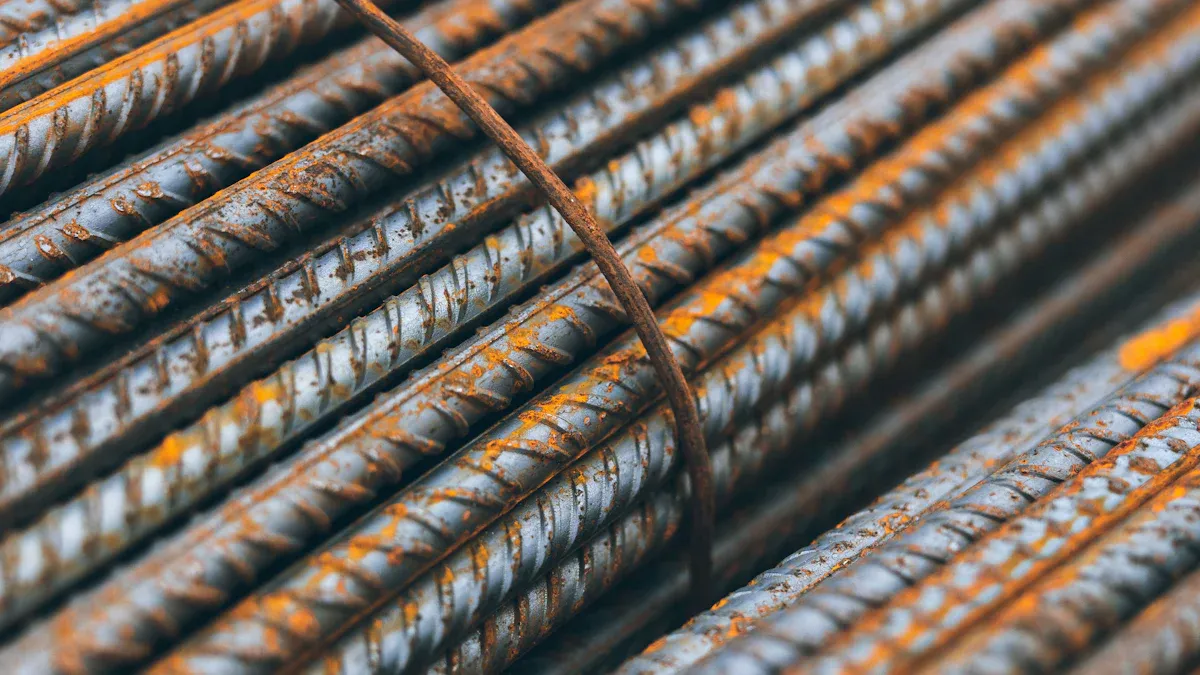

Common Materials for Hydraulic Cylinder Piston Rods
Selecting the right material for a hydraulic cylinder piston rod is essential for ensuring durability and performance. Below, we explore some of the most common materials used and their unique properties.
Steel and Its Variants
Steel is one of the most widely used materials for hydraulic cylinder piston rods due to its strength and versatility. Variants like 45 steel and 27SiMn offer different levels of performance. For example:
- 45 steel has a yield strength of 355 MPa, making it suitable for moderate load applications.
- 27SiMn, with a yield strength of 835 MPa, provides superior strength for heavy-duty tasks.
Some steel variants, such as Cromax 180X, deliver enhanced reliability. With a tensile strength of 750 N/mm² and a minimum yield strength of 690 N/mm², it outperforms standard options like C45E. These properties make it ideal for high-strength applications where failure pressure and fatigue resistance are critical.
| Material | Yield Strength (MPa) |
|---|---|
| 45 steel | 355 |
| 27SiMn | 835 |
Stainless Steel Options
Stainless steel is another popular choice, especially for environments prone to corrosion. Its high strength-to-weight ratio and temperature tolerance make it a reliable option. However, untreated stainless steel may require frequent replacements in highly corrosive settings. Advanced coatings like Silcolloy or Dursan can significantly enhance its corrosion resistance, reducing maintenance costs over time. For instance, Dursan-coated surfaces exhibit only 1% of the corrosion rate of untreated stainless steel, offering substantial long-term savings.
Duplex stainless steel, such as EN 1.4462, is particularly effective in applications like wastewater treatment. It reduces the need for replacements over decades, lowering both environmental impact and lifecycle costs.
Chrome-Plated Rods
Chrome-plated rods are highly valued for their wear resistance and smooth surface finish. The hard chrome layer protects the rod from corrosion and wear, ensuring longevity in hydraulic applications. Processes like precision cold drawing and fine grinding enhance the rod’s surface hardness, preventing damage from seals and walls. Thin dense chrome plating further improves resistance to wear and corrosion, making it a preferred choice for demanding environments.
For example, CPO (Chrome Plated Only) rods, typically made from 1045 steel, offer a Rockwell hardness of Rc15/19. In contrast, IHCP (Induction Hardened & Chrome Plated) rods achieve a surface hardness of Rc58/60, providing greater durability but with increased brittleness. These options allow you to choose the right balance of hardness and flexibility for your specific needs.
Specialty Coatings and Composite Materials
Specialty coatings and composite materials offer advanced solutions for hydraulic cylinder piston rods. These innovations enhance durability, reduce friction, and improve overall performance. You can rely on these materials to meet demanding requirements in high-load applications.
Specialty coatings, such as Orkot® C620, are designed to handle heavy loads while maintaining efficiency. This material minimizes stick-slip, ensuring smooth operation even under stress. Its durability reduces wear, extending the service life of hydraulic systems. You can benefit from its ability to operate without lubrication, making it ideal for dry-running applications.
Composite materials provide additional advantages. They combine strength and lightness, making them suitable for dynamic environments. These materials withstand high loads and stresses while requiring zero maintenance. Their self-lubricating properties further enhance efficiency, reducing the need for frequent servicing.
Here are some key benefits of specialty coatings and composite materials:
- Reduce friction with minimal stick-slip.
- Withstand high loads and stresses.
- Require zero maintenance.
- Offer strong yet lightweight solutions.
- Enable dry-running and self-lubricating capabilities.
By choosing these advanced materials, you can optimize your hydraulic systems for energy, industrial, and other demanding sectors. Specialty coatings and composites ensure reliability, helping you achieve long-term savings and improved performance.
Key Factors in Hydraulic Cylinder Selection
Load Capacity and Strength
When selecting a hydraulic cylinder piston rod, load capacity and strength are critical factors. You need a rod that can handle the weight and pressure of your application without compromising safety or performance. Hydraulic cylinders often operate under extreme loads, requiring materials with high tensile strength and durability. For example, forged steel offers superior stiffness and can withstand high stress levels, making it ideal for heavy-duty applications.
Custom hydraulic cylinders provide long-term savings by reducing maintenance needs and improving efficiency. Metrics like load capacity, stroke length, and operating pressure illustrate the importance of matching the rod material to your requirements. Consider these benchmarks:
- Load Capacity: Up to 500 kN
- Stroke Length: Up to 2000 mm
- Operating Pressure: Up to 500 bar
The right material ensures your hydraulic system operates safely and efficiently, even under demanding conditions.
Corrosion Resistance for Harsh Environments
Corrosion resistance is vital for hydraulic cylinders used in severe environments. If your application involves exposure to moisture, chemicals, or saltwater, you need materials that resist corrosion effectively. Stainless steel, especially duplex variants like EN 1.4462, performs well in such conditions. It minimizes replacements and lowers lifecycle costs, making it a sustainable choice.
Case studies highlight successful applications of corrosion-resistant cylinders:
- Construction Sector: Earth-moving equipment like excavators and cranes operate in harsh outdoor conditions.
- Mining Industry: Cylinders designed for underground drilling and lifting withstand chemical-rich environments.
- Manufacturing Industries: Automated systems use corrosion-resistant cylinders for precise movements, enhancing production efficiency.
Advanced coatings, such as Silcolloy or Dursan, further improve corrosion resistance. These coatings reduce maintenance costs and extend the lifespan of hydraulic cylinders, ensuring reliable performance in challenging settings.
Wear Resistance and Friction Reduction
Wear resistance and friction reduction are essential for maintaining the efficiency and safety of hydraulic systems. Surface treatments and specialized coatings significantly enhance these properties. For instance, WC-10Co-4Cr coatings offer the most favorable results, with a hardness of 1248 HV and substantial wear rate improvements.
Research studies demonstrate the impact of coatings on wear resistance:
- Demas et al.: Investigated anti-wear additives in lubrication oil, revealing their influence on wear behavior.
- Shaw et al.: Studied friction and wear under normal and extreme pressure conditions.
- Wang et al. and Ye et al.: Identified surface roughness and tribo-chemical reactions as key factors affecting performance.
Comparative data shows how different materials respond to wear and friction:
| Material | Improvement in Wear Resistance |
|——————|——————————-|
| A1W | 49% |
| A0W | 39% |
| W360 | 10% (minimal effectiveness) |
By choosing materials and coatings that reduce wear and friction, you can optimize the performance and safety features of your hydraulic cylinders. This ensures smoother operation, longer service life, and lower maintenance costs.
Environmental Conditions and Material Suitability
Environmental conditions play a significant role in determining the suitability of materials for hydraulic cylinder piston rods. You must evaluate factors such as temperature extremes, exposure to moisture, and chemical interactions to ensure the chosen material meets your application requirements.
Temperature Extremes
Hydraulic cylinders often operate in environments with fluctuating temperatures. Materials like stainless steel and composite options excel in maintaining structural integrity under thermal stress. For instance, stainless steel resists deformation at high temperatures, while composites provide insulation in cold conditions. Selecting materials with high thermal stability ensures consistent hydraulic performance and prevents fluid degradation.
Moisture and Corrosion
If your application involves exposure to water or humid conditions, corrosion resistance becomes critical. Duplex stainless steel, such as EN 1.4462, offers excellent protection against rust and oxidation. Advanced coatings like Silcolloy further enhance corrosion resistance, reducing maintenance needs and extending the lifespan of your hydraulic cylinders. These materials are ideal for marine applications or industries where moisture is unavoidable.
Chemical Interactions
Certain industries, such as mining and manufacturing, expose hydraulic systems to harsh chemicals. Materials with chemical-resistant properties, like chrome-plated rods or specialty coatings, prevent surface damage and ensure safety features remain intact. For example, WC-10Co-4Cr coatings provide a protective barrier against chemical wear, maintaining the cylinder’s efficiency and reliability.
By aligning material properties with environmental conditions, you can optimize your hydraulic system’s performance and safety. This approach minimizes downtime and ensures your equipment operates effectively in challenging settings.
Balancing Cost and Performance
Balancing cost and performance is essential when selecting hydraulic cylinder piston rods. While initial costs may seem appealing, you should prioritize long-term value to achieve better results and lower total ownership costs (TCO).
Total Value Over Initial Cost
High-quality materials, such as corrosion-resistant stainless steel or induction-hardened rods, reduce replacement intervals and operational costs. Investing in durable components minimizes downtime and enhances safety features, ensuring your hydraulic cylinders perform reliably over time. Low-cost options may lead to higher expenses due to frequent failures and maintenance needs.
Cost-Benefit Analysis
A detailed cost-benefit analysis highlights the advantages of choosing materials with superior performance. For example:
| Key Advantages of Lower TCO | ROI Projections |
|---|---|
| Reliability: High-quality materials and testing extend replacement intervals. | Increased Productivity: Faster operations lead to higher output. |
| Low Maintenance: Advanced sealing reduces operational costs. | Extended Uptime: Durable components minimize downtime. |
| Energy Efficiency: Less hydraulic fluid usage lowers costs. | Greater Operational Efficiency: High accuracy reduces errors and saves time. |
These benefits demonstrate how investing in premium materials leads to greater operational efficiency and long-term savings.
Economic Performance Models
Economic performance models emphasize the importance of manufacturing quality and material selection. Corrosion resistance and durability directly impact warranty claims and brand loyalty. By choosing materials that align with your application requirements, you can control costs while maintaining high safety standards. This approach ensures your hydraulic cylinders deliver consistent performance without compromising reliability.
Balancing cost and performance requires careful consideration of material properties, environmental factors, and operational demands. By focusing on total value, you can achieve optimal results and maximize the efficiency of your hydraulic systems.
Matching Hydraulic Cylinder Piston Rods to Applications
Construction and Heavy Machinery
In construction and heavy machinery, hydraulic cylinders play a vital role in powering equipment like excavators, cranes, and bulldozers. The piston rod material must withstand high loads, vibrations, and harsh outdoor conditions. Choosing the right material ensures durability and safety while optimizing performance.
Comparative studies highlight the differences in material selection for these applications. For instance, S275 JR and S235 JR are cost-effective options commonly used in construction. However, their lower yield strength makes them less suitable for heavy-duty tasks compared to materials like AISI 304 stainless steel or Al 7075-T6. The table below summarizes the advantages and disadvantages of various materials:
| Material | Yield Strength | Advantages | Disadvantages |
|---|---|---|---|
| S275 JR | Lower | Commonly used in construction | Lower yield strength compared to S355 |
| S235 JR | Lower | Cost-effective | Lower yield strength compared to S355 |
| BS970070M20 (C22E) | Appropriate | Low price | Limited applications |
| AISI 304 Stainless Steel | High | Corrosion resistance for special applications | Higher cost |
| Spheroidal Cast Iron | Moderate | Good for low pressure, vibration dampening | Not suitable for high pressure |
| Al 7075-T6 | High | Lightweight, good mechanical properties | Higher cost compared to steel |
| Composite (40% epoxy, 60% carbon) | Very High | Significant weight reduction | Very high cost |
For heavy machinery, materials like Al 7075-T6 and composites offer excellent mechanical properties and weight reduction. These features improve efficiency and reduce wear on hydraulic systems. However, their higher cost may limit their use to specialized applications. By selecting materials that balance strength, cost, and durability, you can ensure reliable performance in demanding construction environments.
Agricultural Equipment
Hydraulic cylinders in agricultural equipment must handle repetitive movements, heavy loads, and exposure to dirt and moisture. The material choice for piston rods directly impacts their performance and durability. Higher-strength steel grades, such as 27SiMn, enhance buckling resistance, which is critical for agricultural applications. This improvement allows for downsizing piston rods, reducing weight and cost while maintaining safety.
Field data supports the importance of material selection in agricultural equipment. For example, using high-strength steel reduces the risk of dangerous failures like buckling. This not only improves the reliability of hydraulic systems but also minimizes downtime during critical farming operations. Additionally, corrosion-resistant coatings, such as chrome plating, protect piston rods from rust caused by exposure to moisture and fertilizers.
To optimize your hydraulic cylinders for agricultural use, consider materials that combine strength, corrosion resistance, and cost-effectiveness. This approach ensures your equipment operates efficiently, even in challenging conditions.
Marine and Offshore Applications
Marine and offshore environments present unique challenges for hydraulic cylinders. Exposure to salty seawater, high humidity, and extreme pressures demands materials with exceptional corrosion resistance and durability. Selecting the right piston rod material ensures reliable performance and reduces maintenance costs.
Reports from marine engineering highlight the performance of various materials in offshore applications. For example:
- Corrosion Resistance: Special steel with chromium plating protects against corrosive media like salty seawater.
- Durability: UGICHROM steel bars ensure reliable continuous output in hydraulic systems.
- Surface Quality: High-quality piston rod surfaces maintain functionality under high working pressure.
- Cost Efficiency: Corrosion-resistant materials reduce lifecycle costs.
- Mechanical Properties: Duplex steel offers an affordable yet durable option for marine applications.
- Machining Qualities: UGICHROM steel bars improve productivity in component manufacturing by up to 20%.
Additionally, materials like stainless steel (grade 316), bronze, and titanium provide excellent corrosion resistance. Titanium, in particular, is ideal for critical components exposed to saltwater due to its unmatched durability. Specialized coatings, such as ceramic, further extend the lifespan of hydraulic equipment by protecting against wear and corrosion.
By choosing materials tailored to marine environments, you can enhance the reliability and efficiency of your hydraulic systems. This ensures your equipment performs optimally, even under the most demanding conditions.
Industrial and Manufacturing Uses
Hydraulic cylinders play a critical role in industrial and manufacturing settings. These systems power machinery used for lifting, pressing, and moving heavy loads. The choice of piston rod material directly impacts the efficiency and reliability of these operations. By selecting the right material, you can ensure your equipment performs optimally under demanding conditions.
Material Requirements for Industrial Applications
In industrial environments, hydraulic cylinders often face high pressures, repetitive cycles, and exposure to abrasive substances. Piston rods must withstand these challenges without compromising performance. Materials like induction-hardened steel and chrome-plated rods are commonly used due to their durability and resistance to wear. For example, induction-hardened rods provide a surface hardness of Rc58/60, making them ideal for high-pressure applications.
Stainless steel is another excellent option, especially in industries where corrosion resistance is essential. Manufacturing processes involving chemicals or moisture benefit from stainless steel’s ability to resist rust and oxidation. Duplex stainless steel, such as EN 1.4462, offers additional strength and durability, making it suitable for long-term use in harsh environments.
Enhancing Efficiency in Manufacturing
In manufacturing, hydraulic cylinders are used in applications like injection molding, metal stamping, and assembly lines. The material of the piston rod affects the speed, precision, and energy efficiency of these processes. For instance, chrome-plated rods reduce friction, allowing smoother and faster movements. This improves the overall productivity of your machinery.
Composite materials are also gaining popularity in manufacturing applications. These materials combine strength with lightweight properties, reducing the strain on hydraulic systems. Their self-lubricating capabilities further enhance efficiency by minimizing the need for frequent maintenance.
Real-World Applications
Hydraulic cylinders with high-quality piston rods are essential in various manufacturing applications. Here are some examples:
- Metal Stamping: Piston rods made from hardened steel ensure precise and consistent force during stamping operations.
- Injection Molding: Corrosion-resistant rods maintain performance in environments with high humidity and chemical exposure.
- Robotics: Lightweight composite rods improve the speed and accuracy of robotic arms used in assembly lines.
Each application benefits from materials tailored to its specific requirements. By understanding these needs, you can select piston rods that enhance the performance and longevity of your equipment.
Cost-Effectiveness in Industrial Settings
Investing in high-quality piston rod materials may seem costly initially, but it reduces long-term expenses. Durable materials lower maintenance costs and minimize downtime, ensuring uninterrupted production. For example, chrome-plated rods last longer in abrasive environments, reducing the frequency of replacements. This approach not only saves money but also boosts the overall efficiency of your operations.
Tip: Always evaluate the total cost of ownership when selecting piston rod materials. High-quality options often provide better value over time by reducing operational costs and extending equipment lifespan.
By choosing the right materials for your industrial and manufacturing applications, you can optimize performance, reduce costs, and ensure the reliability of your hydraulic systems.
Maintenance Tips for Hydraulic Cylinder Piston Rods
Regular Inspection and Cleaning Practices
Regular inspection keeps your hydraulic cylinder piston rods in optimal condition. Examine the rods for signs of wear, corrosion, or surface damage. Look for scratches, dents, or discoloration that might affect performance. Cleaning the rods removes dirt, debris, and contaminants that can cause friction or damage seals. Use a lint-free cloth and a mild cleaning solution to wipe the surface. Avoid abrasive materials that could scratch the rod. Inspect seals and connections during cleaning to ensure they remain intact. A clean and well-maintained rod improves hydraulic system efficiency and prevents costly repairs.
Proper Lubrication Techniques
Lubrication reduces friction and extends the lifespan of hydraulic cylinder piston rods. Apply the correct type of lubricant recommended by the manufacturer. Use a high-quality hydraulic oil to ensure smooth operation. Check the lubrication points regularly and apply oil evenly across the rod’s surface. Avoid over-lubricating, as excess oil can attract dirt and debris. Monitor the rod’s movement during operation to identify areas needing additional lubrication. Proper lubrication minimizes wear and ensures consistent hydraulic performance.
Preventing Corrosion and Surface Damage
Corrosion weakens hydraulic cylinder piston rods and reduces their lifespan. Protect the rods by applying anti-corrosion coatings or treatments. Chrome plating or specialty coatings like Silcolloy enhance corrosion resistance. Store hydraulic cylinders in dry environments to prevent moisture exposure. If the rods operate in humid or marine settings, inspect them frequently for rust. Use protective covers to shield the rods from environmental damage. Preventing corrosion ensures the rods maintain their strength and reliability over time.
When to Replace or Upgrade Piston Rods
Knowing when to replace or upgrade your hydraulic cylinder piston rods can save you from costly repairs and unexpected downtime. You should monitor your equipment regularly for signs of wear, damage, or reduced performance. Below are key indicators that signal it’s time to take action.
1. Visible Surface Damage
Inspect the piston rod for scratches, dents, or pitting. These imperfections can compromise the rod’s ability to maintain a proper seal, leading to fluid leaks and reduced efficiency. Even minor surface damage can escalate into larger issues if left unaddressed.
2. Corrosion or Rust
Corrosion weakens the structural integrity of the rod. If you notice rust or discoloration, especially in marine or humid environments, it’s a clear sign that the rod may need replacement. Advanced coatings or materials with higher corrosion resistance might be a better choice for your next upgrade.
3. Reduced Hydraulic Performance
A drop in system performance, such as slower operation or inconsistent movements, often points to piston rod issues. Worn rods can increase friction or cause misalignment, affecting the overall efficiency of your hydraulic system.
4. Frequent Seal Failures
If seals around the piston rod fail repeatedly, the rod’s surface may have become too rough or damaged. This can lead to fluid leakage and contamination, further reducing the system’s reliability.
Tip: Regular maintenance and inspections can help you catch these issues early, preventing costly replacements or system failures.
5. Changing Application Requirements
Upgrading may be necessary if your equipment faces new demands, such as higher loads, harsher environments, or longer operating cycles. Modern materials like induction-hardened steel or composite rods can offer better durability and performance for evolving needs.
By addressing these signs promptly, you can ensure your hydraulic systems remain efficient and reliable. Always consult with experts to choose the best replacement or upgrade options for your specific application.
Choosing the right material for a hydraulic cylinder piston rod is essential to meet your system’s requirements and ensure long-term reliability. The material directly impacts the cylinder’s performance, durability, and safety. For example, steel offers excellent strength for construction and mining, while stainless steel provides corrosion resistance for marine and chemical applications. Lightweight aluminum improves fuel efficiency in aerospace and automotive sectors, and composites deliver unmatched wear resistance for specialized hydraulic components.
Aligning material properties with your application’s requirements allows you to control costs, enhance efficiency, and maintain safety standards. Each application demands specific material characteristics, whether it’s withstanding high pressures, resisting corrosion, or reducing weight. By understanding these requirements, you can optimize your hydraulic cylinders for peak performance.
Tip: Consult with experts to evaluate your system’s unique requirements. Their guidance ensures you select the best material to control costs and achieve reliable, efficient operation.
FAQ
1. What is the most durable material for hydraulic cylinder piston rods?
Steel, especially induction-hardened and chrome-plated variants, offers exceptional durability. These materials resist wear and handle high loads effectively. For environments with corrosion risks, stainless steel or duplex stainless steel provides added longevity.
2. How do coatings improve piston rod performance?
Coatings like chrome plating or WC-10Co-4Cr enhance wear resistance and reduce friction. They also protect against corrosion, extending the rod’s lifespan. Advanced coatings can even enable dry-running capabilities, improving efficiency in specific applications.
3. Can I use the same piston rod material for all applications?
No, each application has unique requirements. For example, marine environments need corrosion-resistant materials like stainless steel, while heavy machinery benefits from high-strength steel. Matching the material to the application ensures optimal performance and safety.
4. How often should I inspect hydraulic cylinder piston rods?
Inspect piston rods every 3-6 months or after heavy use. Look for surface damage, corrosion, or wear. Regular inspections help you catch issues early, preventing costly repairs or system failures.
5. What factors should I consider when replacing a piston rod?
Evaluate the operating environment, load requirements, and material properties. Consider upgrading to advanced materials or coatings if your application demands higher durability or corrosion resistance. Always consult with experts for tailored recommendations.
Tip: Regular maintenance and proper material selection can significantly extend the lifespan of your hydraulic systems.
