The mounting eyes and mounting rings are responsible for securing the shock absorber to the vehicle.
1. What It Is

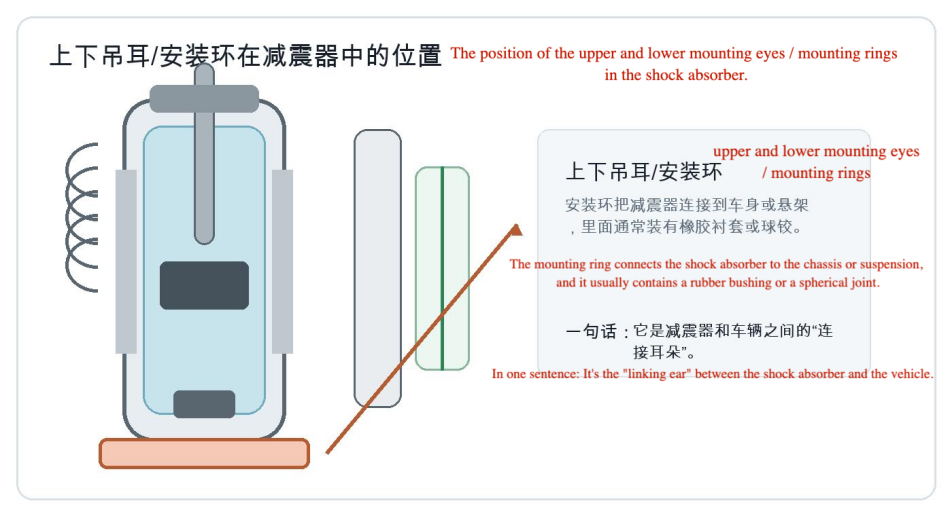

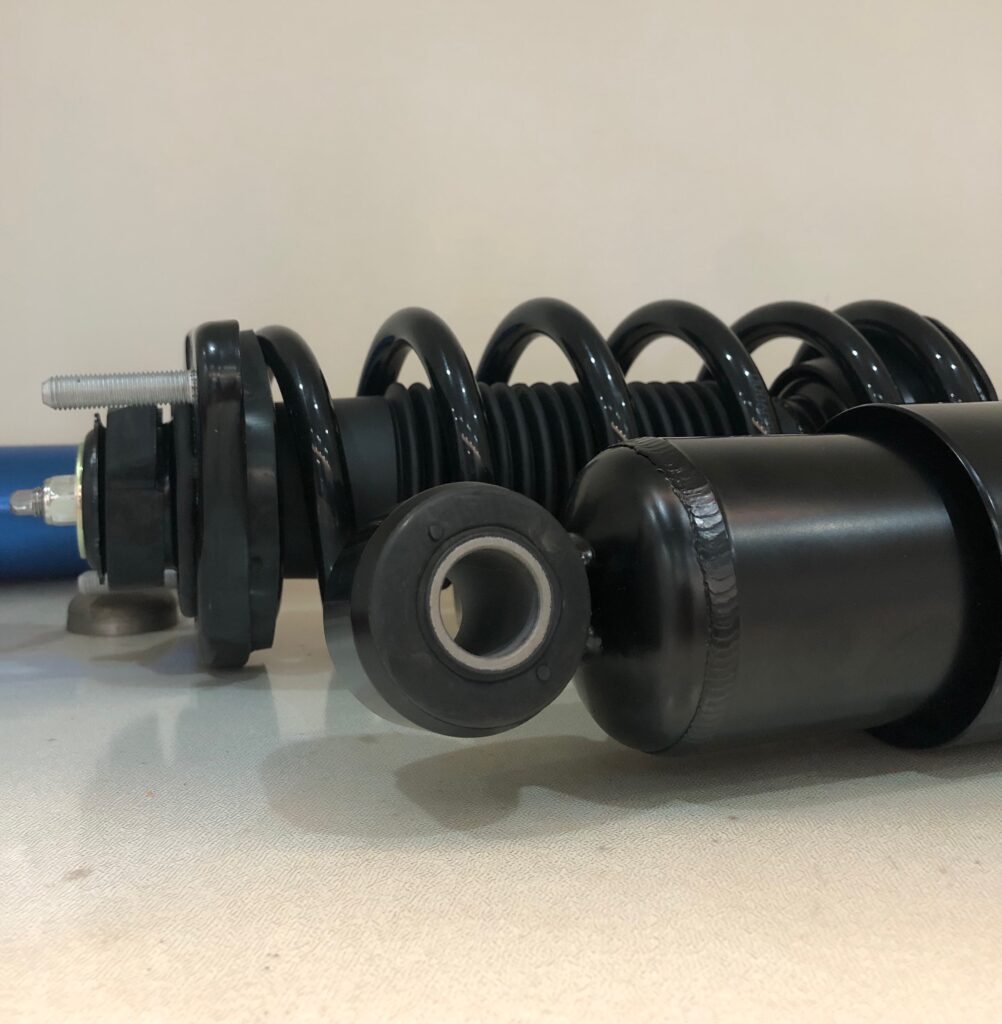

The mounting eye is located at both ends of the shock absorber. It withstands the repeated tension and compression loads caused by vehicle vibration, while allowing a certain degree of pivoting movement.
Analogy for non technical people:
Think of it like the metal buckle on a backpack strap — even if the main body is excellent, a broken buckle means the connection can’t be trusted.
2. Common Materials
Material selection is usually not based solely on strength — it also takes into account wear resistance, corrosion resistance, temperature stability, friction characteristics, machining cost, and batch-to-batch consistency.
| Component / Material | Why It’s Used | Points to Watch |
| Low-carbon steel stamping | Easy to form and weld, low cost. | Weld quality and corrosion protection must be controlled. |
| Forged steel / thick steel parts | Higher strength and impact resistance. | Higher cost and weight. |
| Aluminum alloy mounting parts | Lightweight. | Fatigue resistance and thread strength need careful design. |

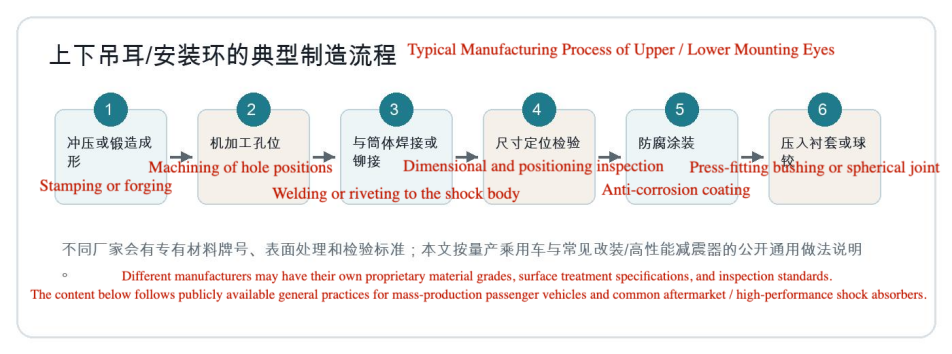

3. Manufacturing Process
4. Functions in the Shock Absorber
Provides mounting points for the shock absorber.
Transmits tension and compression loads to the chassis or suspension.
Maintains proper mounting angle and working stroke.
Works with bushings for vibration isolation and noise reduction.
5. Differences Between Types
| Type | Characteristics | Functional Differences in Shock Absorbers | Suitable Applications |
| Ring-type mounting eye | Equipped with rubber bushing | Allows small-angle pivoting | Common rear shock absorbers |
| Fork-type mounting bracket | Clamps the bolt from both sides | More stable positioning | SUVs, commercial vehicles |
| Spherical joint mounting | Large angular freedom | Reduces lateral forces | Racing / off-road |
6. Quality Control & Common Failure Modes
| Critical Point | Why It Matters | Symptoms of Failure |
| Hole position accuracy | Affects installation stress | Noise, uneven wear |
| Weld strength | Withstands repeated loads | Cracking or detachment |
| Anti-corrosion coating | Mounting points are prone to water accumulation | Rust, looseness |
Observable Signs for Users or Maintenance Technicians
Cracks in the mounting ring causing knocking noises
Enlarged mounting holes leading to looseness
Corroded welds reducing structural strength
7. Summary
The mounting ring does not participate in hydraulic damping, but it determines whether the shock absorber can be reliably and quietly connected to the vehicle.
Note: Specific material grades, dimensions, tolerances, and process windows shall be based on the manufacturer’s drawings, technical specifications, and actual part inspection results. This document is intended for training, communication, and basic engineering understanding purposes only.
