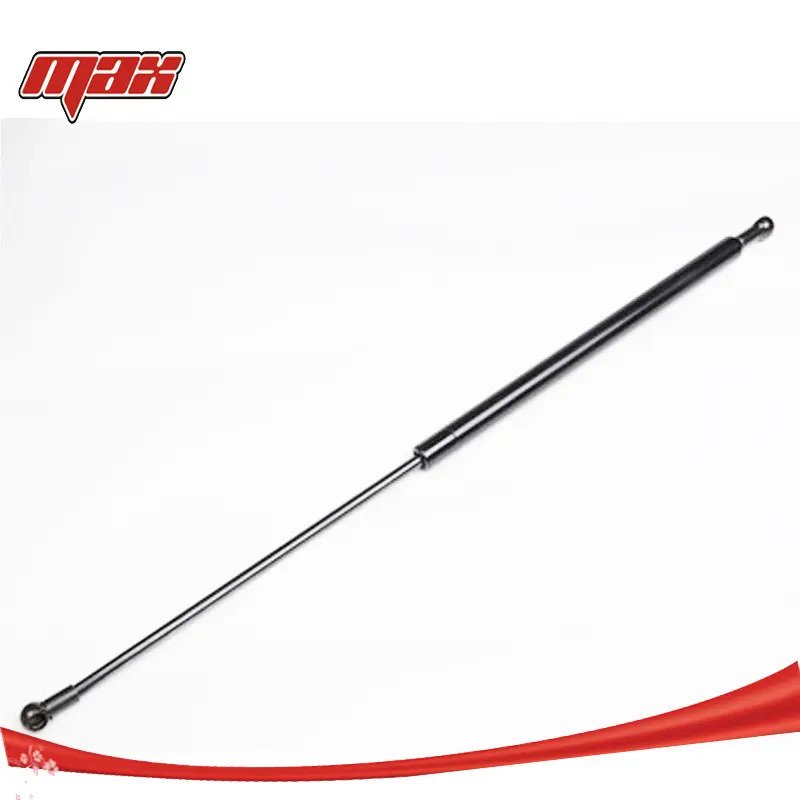

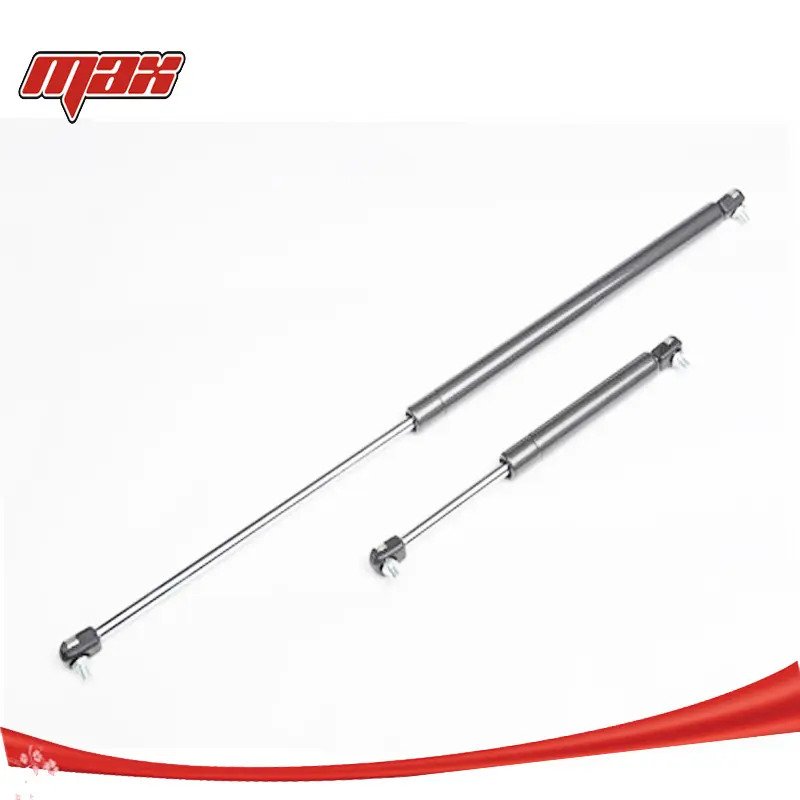

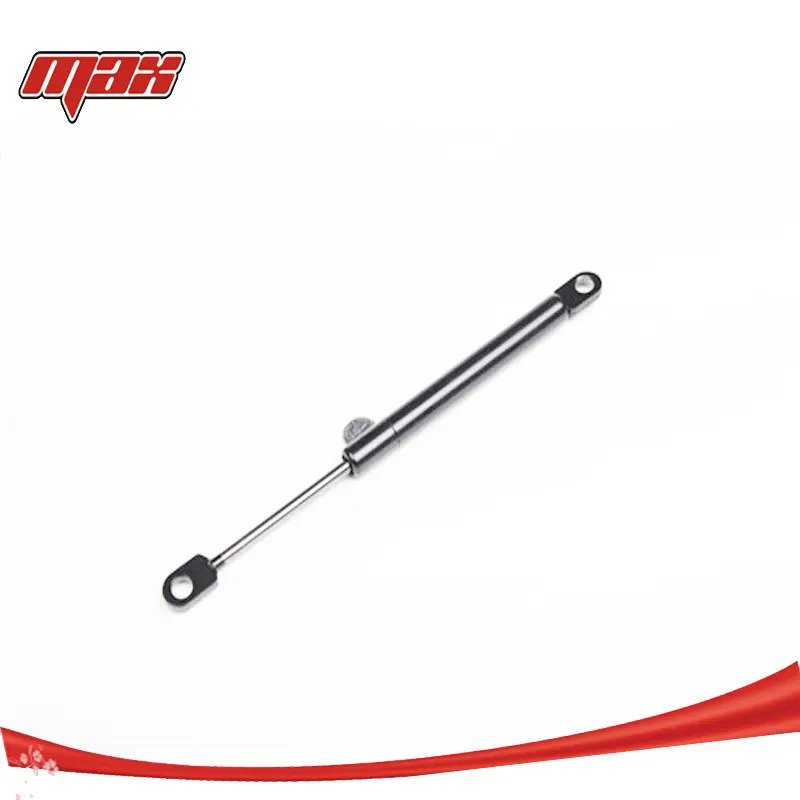

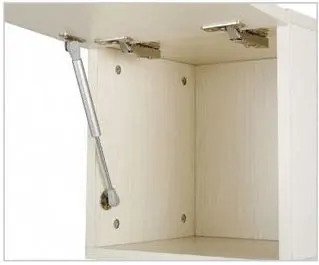

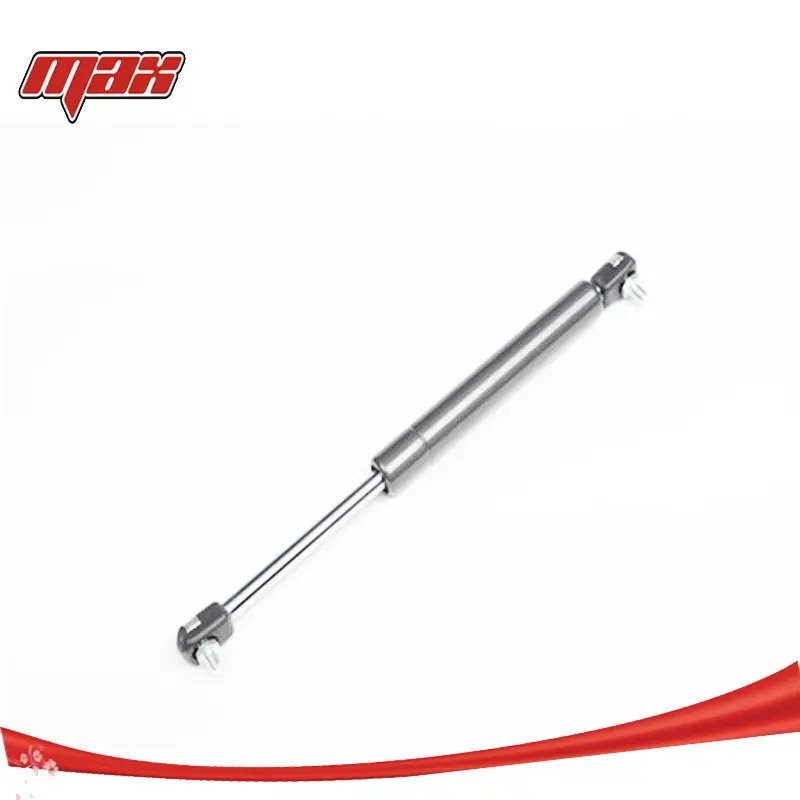

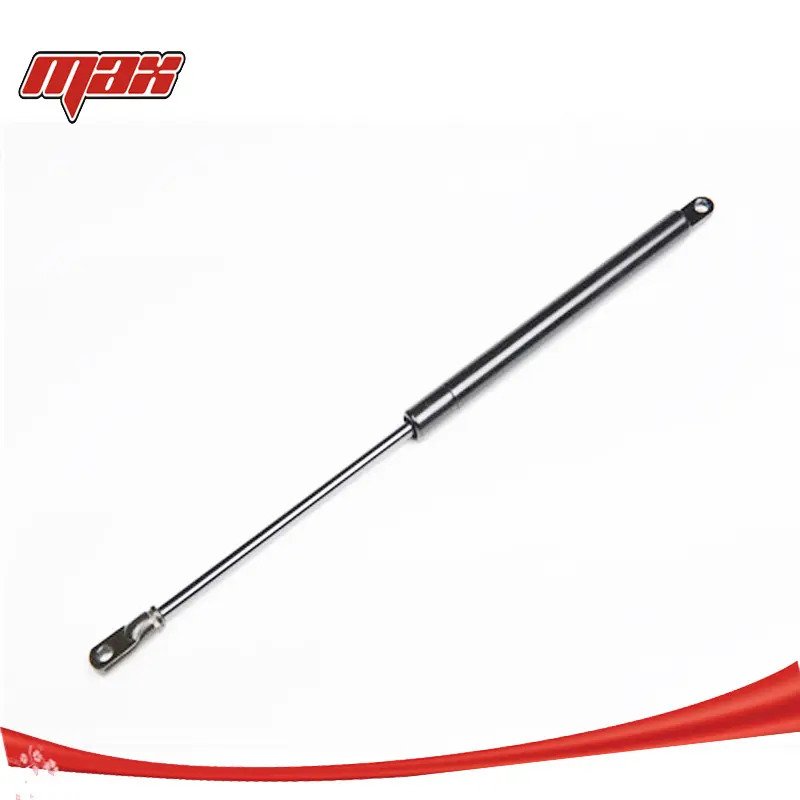

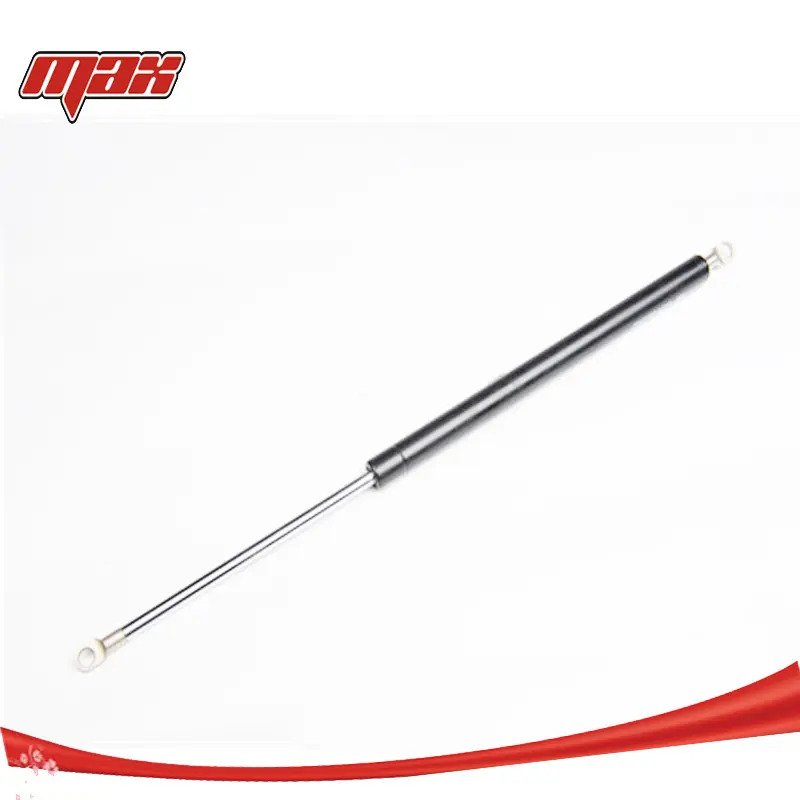

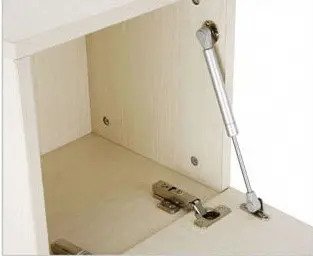

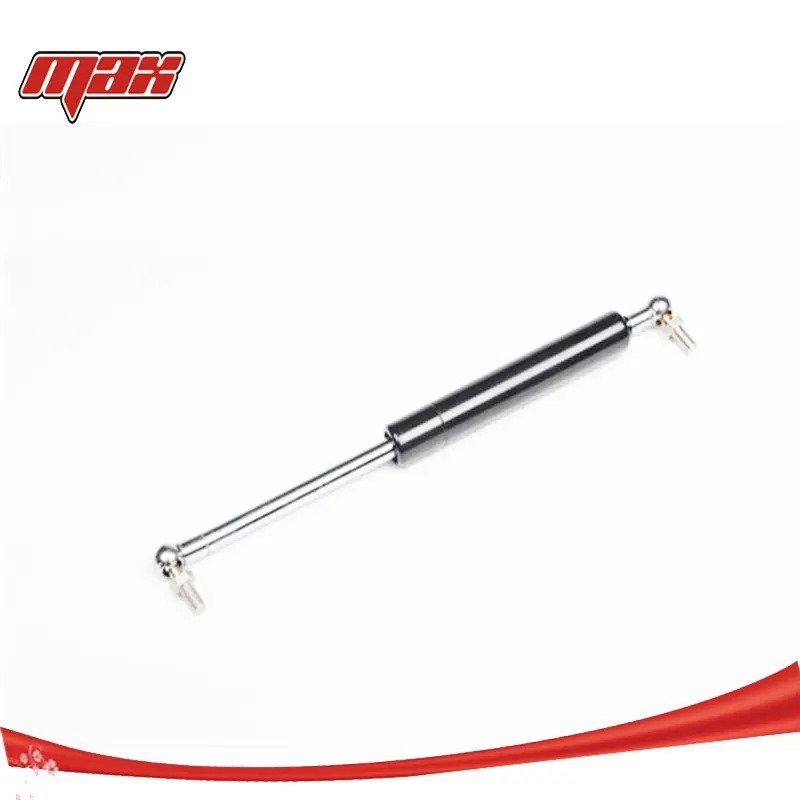

Kitchen Cabinet door lift-up system Gas Spring
| Features | |
| Quality | 1.50000 times useing life |
| 2.One year guarantee | |
| 3.Passed ISO9001 ,SGS , TS16949 certificate | |

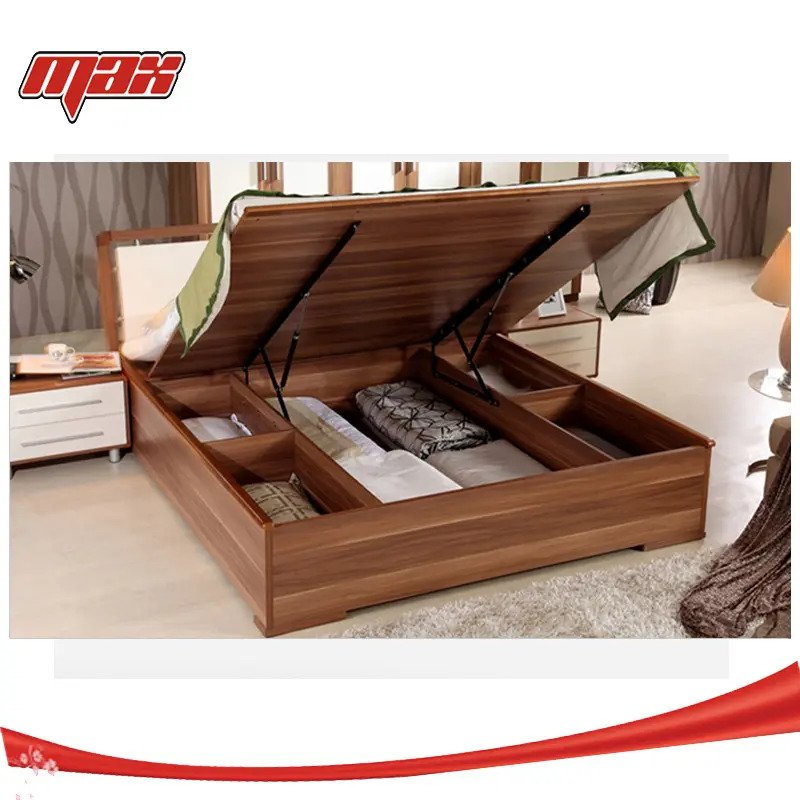

| Application | Furniture , Automobile, Machines ,Mechanical equipemnt ,Container,etc |
| Materail | Carbon Steel 20# / Stainless steel 304 /SS316 |
| Color | Silver/Black/Others |

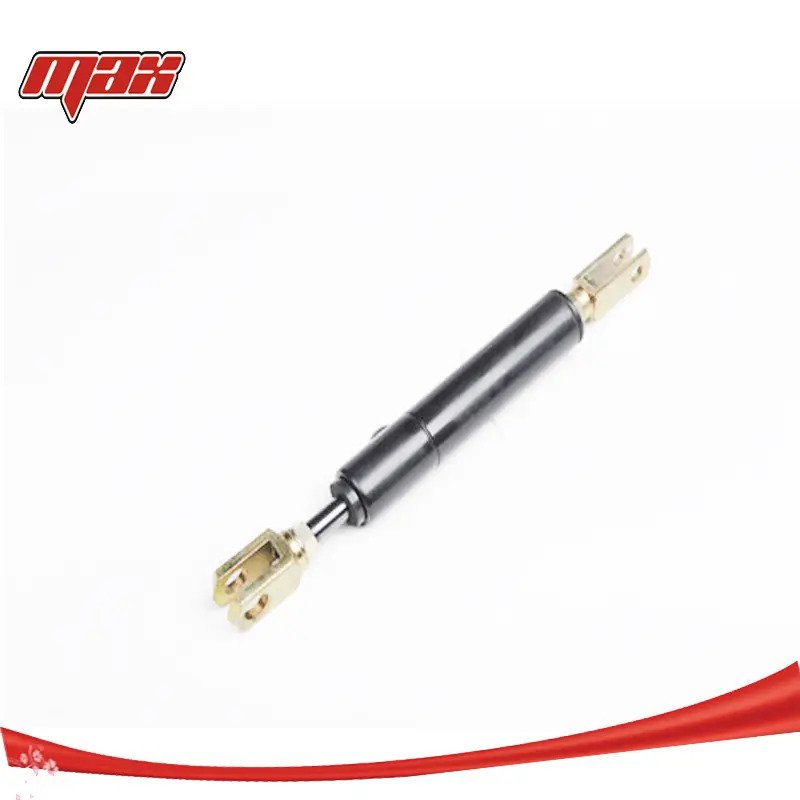

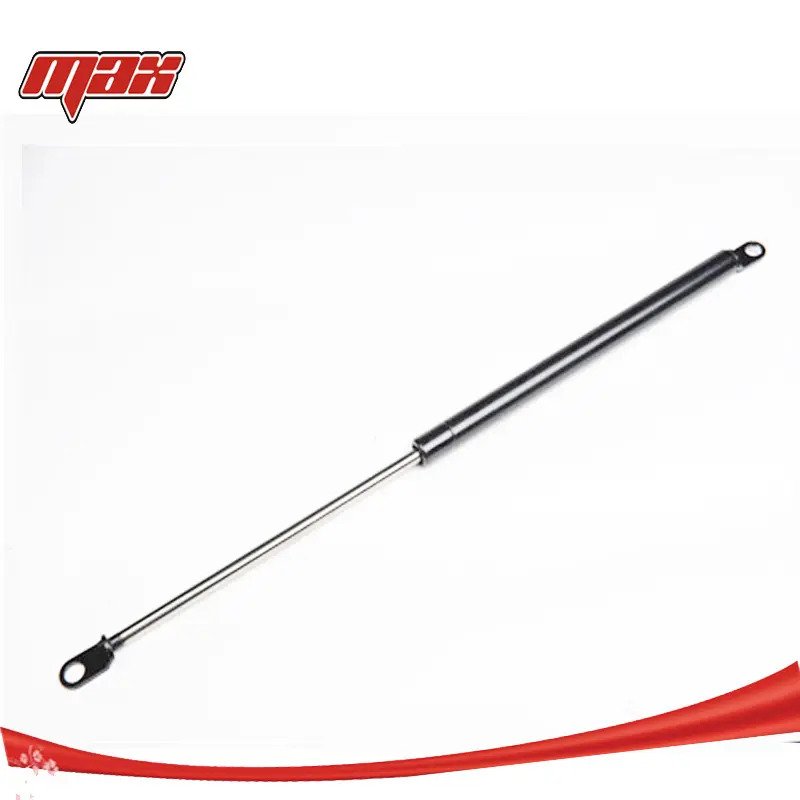

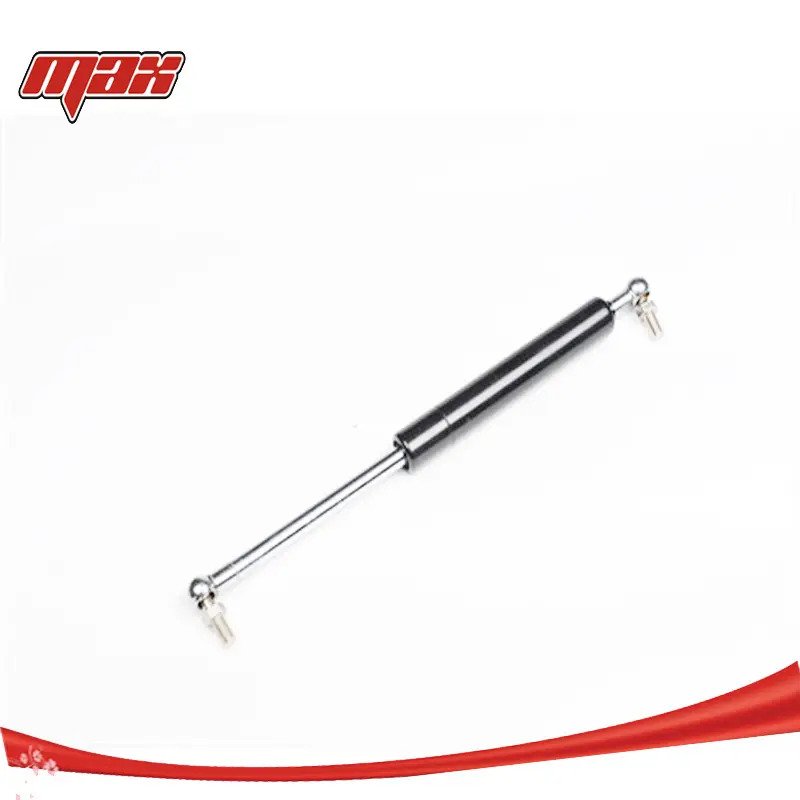

| Connectings | Ball connector/metal eye/clevis and so on |
| Advantage | 1.Free samples are available |
| 2.Small MOQ is available , we can accept sample order , 100 pcs | |
| 3.Fast Delivery | |
| 4.Competitive price | |
| Load weight | 50N,60N,80N,100N,120N, 150N or other |
| Size | Standard or Customized according to your request |
| Package | Each gas spring in plastic bag , then in to carton box |
| Technical details | |
| Cylinder | SAE1020 /SS304 /SS316 |
| Surface Treatment | Painiting , no grinding,smooth coating |
| Piston rod | SAE1045, surface treatment Chrome plating or QPQ ,72h Salt spray resistance |
| Connectings | Black or silver color , material can be steel or plastic |
| Oil seal | Oil seal was buying from top brand |
Different type of gas spring :
According to its characteristics and different application fields, gas springs are also called support rods, gas supports, angle adjusters, gas rods, dampers, etc. According to the structure and function of the gas springs, there are several types of gas springs, such as free gas springs, self-locking gas springs, traction gas springs, free stop gas springs, swivel chair gas springs, gas rods, dampers, etc. This product is widely used in the fields of automobile, aviation, medical equipment, furniture, machinery manufacturing and so on.
1. Lift gas spring (Lift gas spring)
2. Self-locking gas springs

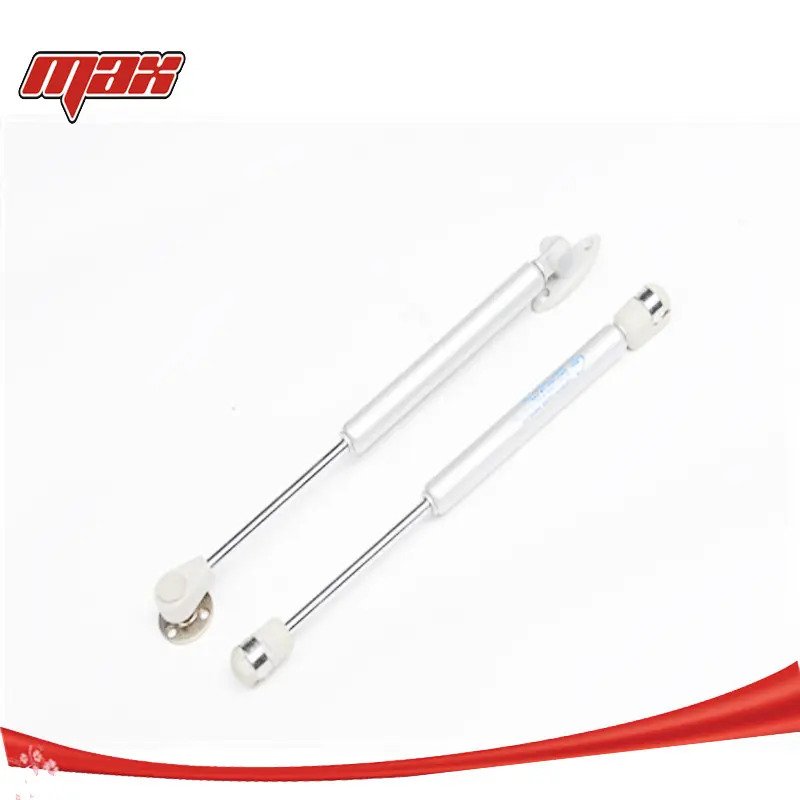

3. Free stop gas springs (friction gas springs, balanced gas springs) are mainly used in kitchen furniture, medical equipment and other fields.
4. Chair gas spring.
5. Traction gas springs (gas traction springs)

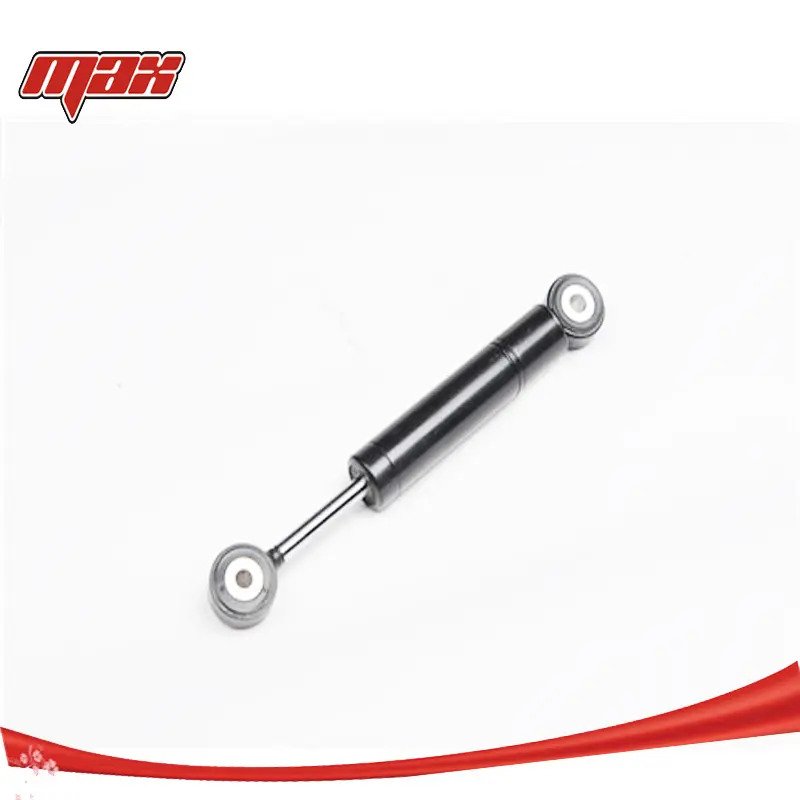

6. Damper is more used in automobiles and medical equipment,
How to judge the quality of gas spring :
The quality of a gas spring is judged mainly from the following aspects: first, its sealing performance, if the sealing performance is not good, there will be oil leakage and air leakage during use; secondly, accuracy, such as 500N For gas springs, the force error produced by some manufacturers does not exceed 2N, and the products of some manufacturers may be far from the actual 500N required; the third is the service life, and its service life is calculated by the number of times it can be fully retracted; the last is The force value changes during the stroke, and the gas spring in an ideal state should maintain the force value unchanged throughout the stroke. However, due to design and processing factors, the force value of the gas spring in the stroke inevitably changes. The magnitude of its change is an important criterion for measuring the quality of a gas spring. The smaller the magnitude of the change, the better the quality of the gas spring, and vice versa.
The gas spring made by Max Auto are use piston rod by QPQ OR Chrome plating treatment , to avoid rust .
Every piece before pack ,was test by air pressure machine ,to ensure the gas force meet reuiqremnt .
