Gas Spring
Gas spring is a part that can realize the functions of support, cushioning, braking, height and Angle adjustment, etc. In construction machinery, it is mainly used in cover, door and other parts.The gas spring is mainly composed of piston rod, piston, sealing guide sleeve, filler, pressure cylinder and joint, among which the pressure cylinder is a closed chamber, filled with inert gas or oil and gas mixture, the pressure in the chamber is several times or dozens of times of atmospheric pressure. When the hydraulic gas spring acts, the pressure difference between the two sides of the piston is used to realize the movement of the hollow piston rod. Adjustable gas struts has different structures and types to meet different use needs, construction machinery mainly uses compression gas spring, this type of gas spring mainly plays a supporting role, only the shortest and longest two working positions, can not stop itself in the stroke.
-
OE 53440-29046 53450-29046 Gas Spring for Car trunk Cressida RX80/GX81
Features Quality 1.50000 times useing life 2.One year guarantee 3.Passed ISO9001 ,SGS , TS16949 certificate Application Furniture , Automobile, Machines ,Mechanical equipemnt ,Container,etc Materail Carbon Steel 20# / Stainless steel 304 /SS316 Color Silver/Black/Others Connectings Ball connector/metal eye/clevis and so on Advantage 1.Free samples are available 2.Small MOQ is available , we can accept sample order , 100 pcs 3.Fast Deliv... -
QPQ nitrade treatment anti rust steel material gas strut lockable gas spring
Features Quality 1.50000 times useing life 2.One year guarantee 3.Passed ISO9001 ,SGS , TS16949 certificate Application Furniture , Automobile, Machines ,Mechanical equipemnt ,Container,etc Materail Carbon Steel 20# / Stainless steel 304 /SS316 Color Silver/Black/Others Connectings Ball connector/metal eye/clevis and so on Advantage 1.Free samples are available 2.Small MOQ is available , we can accept sample order , 100 pcs 3.Fast Deliv... -
QPQ nitrade treatment anti rust steel material gas strut lockable gas spring
Application:Furniture , Automobile, Machines ,Mechanical equipemnt ,Container,etc
Materail:Carbon Steel 20# / Stainless steel 304 /SS316
50000 times useing life
-

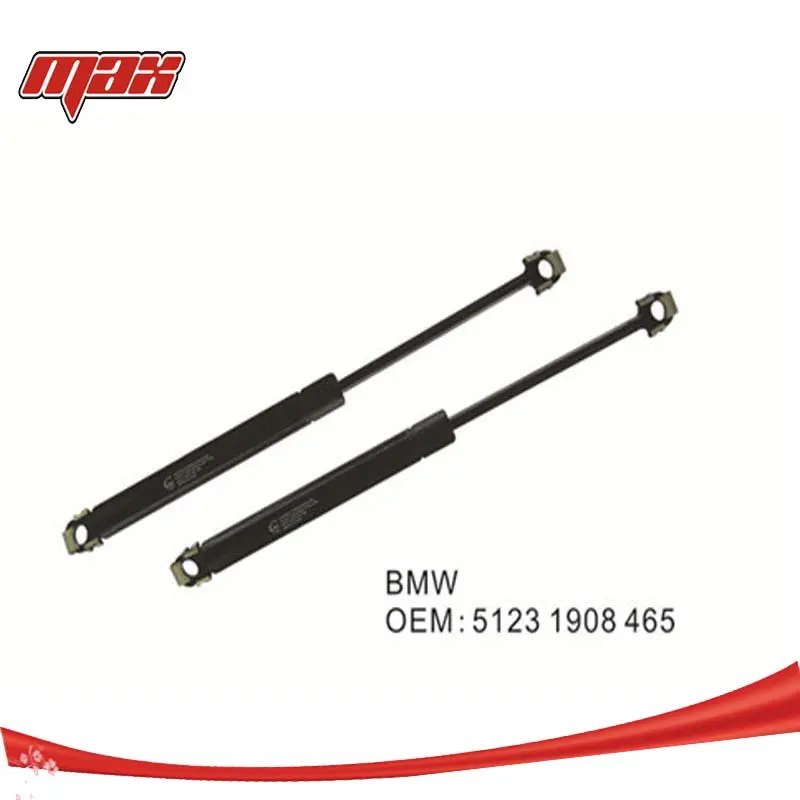

OE 5123 1908 465 compression Gas Spring clock spring for BMW car
HOW TO JUDGE THE QUALITY OF GAS SPRING :
The quality of a gas spring is judged mainly from the following aspects: first, its sealing performance, if the sealing performance is not good, there will be oil leakage and air leakage during use; secondly, accuracy, such as 500N For gas springs, the force error produced by some manufacturers does not exceed 2N, and the products of some manufacturers may be far from the actual 500N required; the third is the service life, and its service life is calculated by the number of times it can be fully retracted; the last is The force value changes during the stroke, and the gas spring in an ideal state should maintain the force value unchanged throughout the stroke. However, due to design and processing factors, the force value of the gas spring in the stroke inevitably changes. The magnitude of its change is an important criterion for measuring the quality of a gas spring. The smaller the magnitude of the change, the better the quality of the gas spring, and vice versa.
The gas spring made by Max Auto are use piston rod by QPQ OR Chrome plating treatment , to avoid rust .
Every piece before pack ,was test by air pressure machine ,to ensure the gas force meet reuiqremnt . -
Kitchen Cabinet door lift-up system Gas Spring
According to its characteristics and different application fields, gas springs are also called support rods, gas supports, angle adjusters, gas rods, dampers, etc. According to the structure and function of the gas springs, there are several types of gas springs, such as free gas springs, self-locking gas springs, traction gas springs, free stop gas springs, swivel chair gas springs, gas rods, dampers, etc. This product is widely used in the fields of automobile, aviation, medical equipment, furniture, machinery manufacturing and so on.
