Complete Shock Strut structure



shock absorber

Complete Shock Strut is composed of shock absorber, lower spring pad, dust jacket, spring, shock absorber pad, upper spring pad, spring seat, bearing, top glue and nut.

Complete Shock Strut uses fluid to convert the elastic energy of the spring into heat energy to make the vehicle movement convergence the most reasonable, so as to eliminate the vibration of the road surface to improve the driving stability, and give the driver comfort and stability.



1.Composition and structure:

The Complete Shock Strut is composed of shock absorber, lower spring pad, dust jacket, spring, shock absorber pad, upper spring pad, spring seat, bearing, top glue and nut.

Complete Shock Strut is divided into front left, front right, left, right four parts, each part of the shock absorber at the bottom of the ear (horn connected to the brake disc) position is different, so in the selection of Complete Shock Strut must be aware of which part of the Complete Shock Strut.  Most of the front damper on the market is the Complete Shock Strut, after the shock absorber is still ordinary



2.Difference with shock absorber:

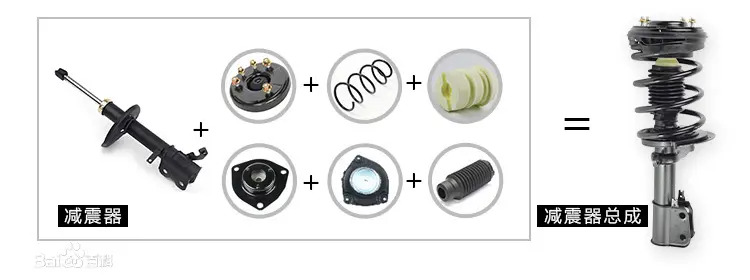

Difference with shock absorber composition structure.

Complete Shock Strut is distinguished from shock absorber.

Complete Shock Strut is distinguished from shock absorber.

1.The shock absorber is only part of Complete Shock Strut;  Complete Shock Strut is composed of shock absorber, lower spring pad, dust jacket, spring, shock absorber pad, upper spring pad, spring seat, bearing, top glue and nut.

2. Different difficulty of replacement

The replacement of independent shock absorbers is difficult to operate, requiring professional equipment and technicians, and the risk factor is large;  Replacing Complete Shock Strut is a simple matter of turning a few screws.

3. Price difference

It is expensive to replace each part of shock absorber set separately.  Complete Shock Strut, which contains all parts of the shock absorber system, is cheaper than replacing all parts of the shock absorber.

4. Different functions

A separate shock absorber serves only as a shock absorber;  Complete Shock Strut also plays the role of suspension pillar in the suspension system.



3. The product function

The Complete Shock Strut uses fluid to convert the elastic energy of the spring into heat energy, so that the vehicle movement convergence is the most reasonable, so as to eliminate the vibration of the road surface to improve the driving stability, and give the driver comfort and stability.

1. Suppress the vibration transmitted to the car body during driving to improve the comfort of driving

Buffer the impact conveyed to the driver and passengers to improve ride comfort and reduce fatigue;  Protect the loaded cargo;  Prolong body life and prevent spring damage.

2. Suppress the fast vibration of the wheel when driving, prevent the tire from leaving the road, improve the stability of running

Improve driving stability and adjustment, effectively convey the engine deflagrate pressure to the ground, in order to save fuel costs, improve the braking effect, prolong the life of each part of the car, save the car maintenance costs.







4.    Fault detection method:



Complete Shock Strutis vulnerable parts in the process of automobile use, shock absorber oil leakage, rubber damage and other conditions will directly affect the car ride stability and the life of other parts, so we should make the shock absorber often in a good working state. Shock absorbers can be tested by:

Make the car stop after running 10km on the road with poor road conditions, touch the shell of the shock absorber by hand, if it is not hot enough, it means there is no resistance inside the shock absorber, and the shock absorber does not work.  If the shell is hot, it is lack of oil inside the shock absorber.  In both cases, a new shock absorber should be replaced immediately.

Press the bumper firmly and then release it. If the car jumps two or three times, the shock absorber is working well.

When the car is moving slowly and the emergency brake, if the car vibration is more severe, it indicates that there is a problem with the shock absorber.

Remove the shock absorber to the upright, and connect the bottom ring clamp on the vise, pull reduce vibration lever several times, this time should be stable resistance, pull up (recovery) of resistance should be greater than the resistance when pressing down on them, such as unstable resistance or without resistance, may be internal lack of oil damper or valve parts damaged, should be repaired or replacement parts.
