The nitrogen gas in a gas charged shock absorber is not a gimmick — it is an important means of stabilizing the oil condition.
1. What It Is

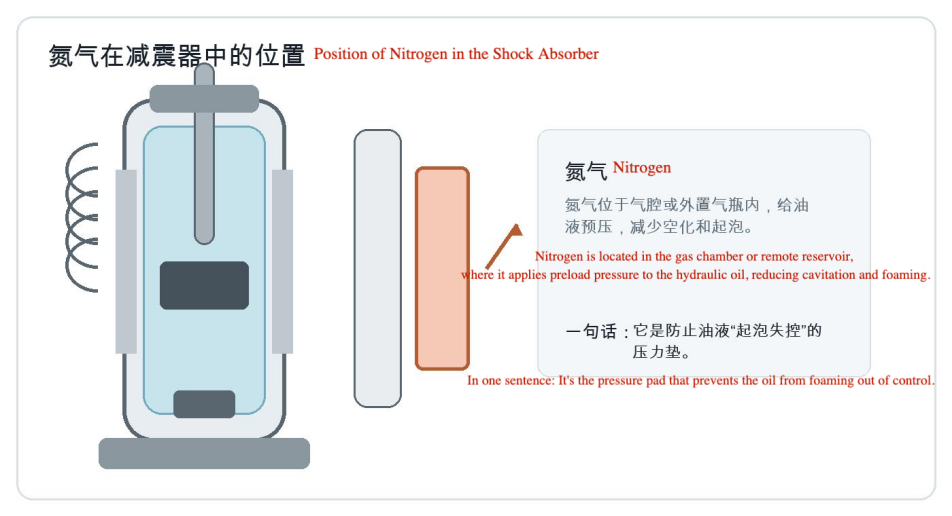

Nitrogen gas is typically separated from the hydraulic oil, or in twin tube designs, it sits in a low pressure gas chamber to preload the oil. It does not directly generate the main damping force, but it significantly affects damping stability.
Analogy for non technical people:
Think of it like the air pressure inside a beverage bottle — it helps keep the liquid under pressure and prevents voids from forming.
2. Common Materials
Material selection is usually not based solely on strength — it also takes into account wear resistance, corrosion resistance, temperature stability, friction characteristics, machining cost, and batch-to-batch consistency.
| Component / Material | Why It’s Used | Points to Watch |
| Dry nitrogen | Chemically stable; does not readily react with oil or metal components. | Excess moisture promotes internal corrosion. |
| High pressure gas chamber seals | Maintain gas pressure and prevent long term leakage. | Leakage leads to performance degradation. |
| Gas valve / sealing plug | Used for pressurization or permanent sealing of the chamber. | Requires high sealing integrity and safety standards. |

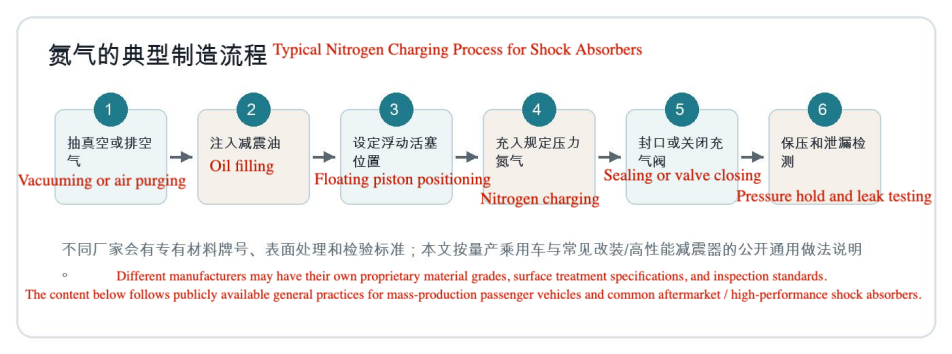

3. Manufacturing Process
4. Functions in the Shock Absorber
Reduces oil cavitation and foaming – maintains pressure on the oil to prevent air bubble formation.
Compensates for volume changes – accommodates oil displacement caused by the piston rod entering the oil chamber.
Improves response consistency at high speed – ensures stable damping performance during rapid suspension movements.
Helps maintain oil pressure against the valve system – keeps the oil pressurized for consistent flow through the valves.
5. Differences Between Types
| Type | Characteristics | Functional Differences in Shock Absorbers | Suitable Applications |
| Low pressure nitrogen | Commonly used in twin tube gas shocks | Reduces foaming, offers better ride comfort | Passenger cars |
| High pressure nitrogen | Commonly used in monotube shocks | Fast response, strong fade resistance | Performance / off road |
| Adjustable gas pressure | Pressure adjustable via valve | Affects initial stroke force and anti cavitation | Racing, rebuildable shocks |
6. Quality Control & Common Failure Modes
| Critical Point | Why It Matters | Symptoms of Failure |
| Gas pressure | Too low — cavitation risk; too high — harsh initial stroke | Abnormal support or poor ride comfort |
| Gas purity / dryness | Affects corrosion resistance and long term stability | Internal rust / corrosion |
| Seal integrity / pressure retention | Determines long term performance | Gas pressure drop, damping fade |
Observable Signs for Users or Maintenance Technicians
Shock becomes noticeably softer after continuous operation
Hollow / aeration noise or foamy feel during operation
Abnormal stroke and damping behavior in monotube shocks after gas pressure loss
7. Summary
Nitrogen is not meant to replace the spring — it uses pressure to keep the oil from foaming and starving.
Note: Specific material grades, dimensions, tolerances, and process windows shall be based on the manufacturer’s drawings, technical specifications, and actual part inspection results. This document is intended for training, communication, and basic engineering understanding purposes only.
