Threaded Sleeve, Lock Ring & Adjustable Spring Seat: Materials, Manufacturing Processes, Functions and Type Differences

Coilover hardware is the most common adjustable structure for modified and racing suspensions.

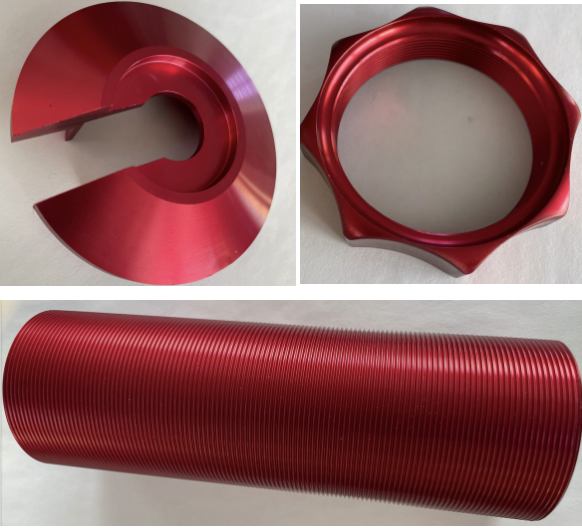

Position of Threaded Sleeve/Lock Ring/Adjustable Spring Seat in Shock .

1. Definition

The outer surface of the threaded sleeve is machined with threads, allowing the spring seat and lock ring to slide up and down along the threads. Different configurations enable independent or combined adjustment of vehicle ride height and spring preload.

Analogy for non-technical personnel: It operates like a screw jack; rotating the nut alters the support position.

2. Common Materials

Material selection prioritizes not only mechanical strength, but also wear resistance, corrosion resistance, thermal stability, frictional performance, processing cost and batch consistency.

Component & Material	Rationale for Application	Key Considerations
Aluminum Alloy Threaded Sleeve / Lock Ring	Lightweight, easy to machine, premium appearance	Threads vulnerable to grit and stone damage
Steel Threaded Sleeve	Superior tensile strength and wear resistance	Excess weight, high anti-corrosion maintenance demand
Stainless Steel Components	Excellent rust prevention	Elevated manufacturing cost
Nylon / Rubber Spring Pads	Eliminate spring rattling noise	Noise generation after abrasive wear

3. Manufacturing Processes

Typical Manufacturing Flow of Threaded Sleeve, Lock Ring

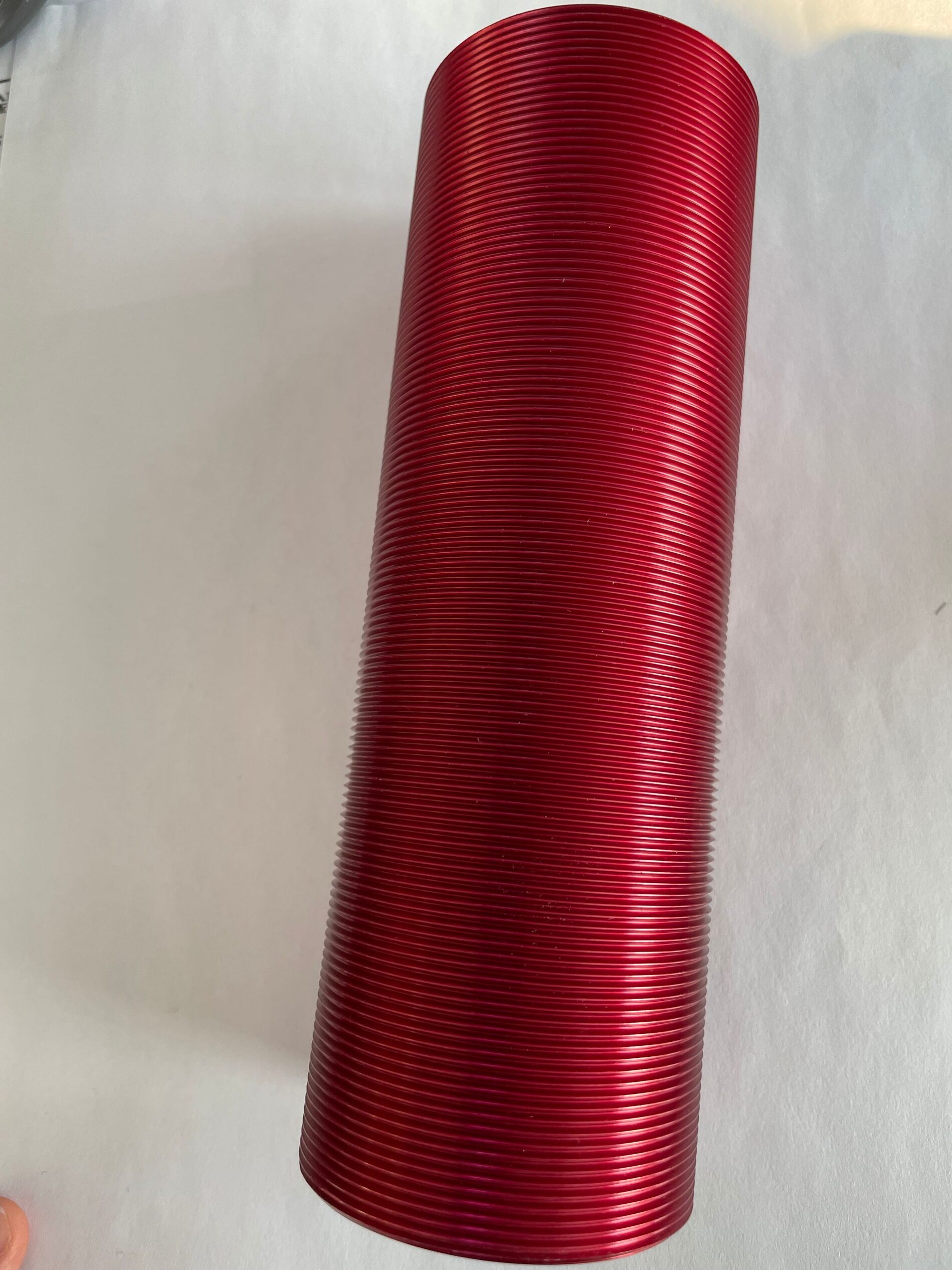

Turning or thread rolling for sleeve bodies
CNC machining of lock rings
Surface treatment: hard anodizing, hot-dip galvanizing or coating
Scale marking and identification engraving
Thread fit inspection
Anti-seize lubrication and assembly

Individual manufacturers adopt proprietary material grades, surface treatments and inspection benchmarks. This document describes universal industry practices for mass-production passenger vehicles, aftermarket modified suspensions and high-performance dampers.

4. Functions within Shock Absorbers

Adjust vertical position of the spring seat
Modify vehicle ground clearance and spring preload
Facilitate corner weight calibration and vehicle stance tuning
Lock rings secure the spring seat against unintended loosening

5. Distinctions Between Product Types

Type	Core Characteristics	Functional Differences in Shock Absorbers	Applicable Scenarios
Single Ride Height Adjustment Design	Spring seat adjustment simultaneously alters spring preload	Simplified mechanical layout	Entry-level coilovers
Full-Length Adjustable Design	Independent tuning of ride height and spring preload	More precise, rational suspension calibration	Mid-to-high-end coilovers
Steel Off-Road Threaded Sleeve	Enhanced impact resistance	Tolerant to muddy, gritty operating environments	Off-road vehicles
Quick-Adjust Spring Seat	Enables rapid on-track suspension calibration	Minimized maintenance downtime	Motorsport racing vehicles

6. Quality Control & Common Failure Modes

Inspection Focus	Engineering Significance	Post-Failure Symptoms
Thread Dimensional Accuracy	Ensures smooth adjustment and reliable locking	Thread seizure or spontaneous loosening
Anti-Corrosion & Abrasion Resistance	Threads are exposed to harsh road debris	Seized threads that cannot be repositioned
Lock Ring Clamping Force	Prevents ride height shift during vehicle operation	Variable ground clearance, persistent rattling noise

Observable defects encountered by vehicle owners and service technicians:

Knocking noise induced by loose lock rings
Thread jamming caused by accumulated grit and corrosion, rendering adjustment impossible
Insufficient usable damper travel resulting from improperly calibrated spring preload

7. Concluding Remarks

Coilover hardware delivers suspension adjustability; however, tuning must prioritize damper travel, spring preload and left-right balance, rather than merely lowering vehicle ride height.

Disclaimer: Exact material grades, dimensional tolerances and process windows shall comply with manufacturer drawings, technical specifications and physical component testing. This document serves for internal training, cross-department communication and fundamental engineering comprehension.
